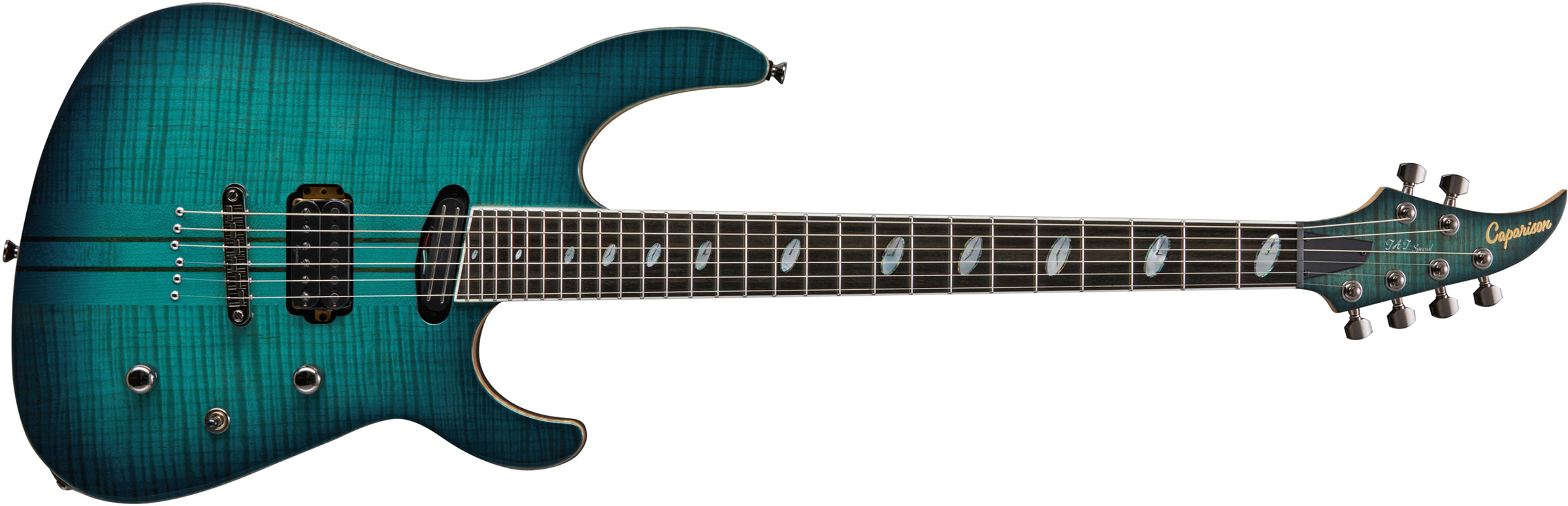

TAT Special FM-FX LTD

TAT Special FM-FX LTD

Regular price 4,799 USD
Regular price Sale price 4,799 USD
Sale Sold out
Finish
In Stock

DHL Express Delivered Duty Paid (DDP) shipping included. Get your new guitar in approximately 2 to 5 business days, without the hassle of surprise costs or customs delays. All taxes, duties, and fees are included in the price upfront, so once you place your order, it’s shipped straight to your door — fully insured, tracked, and cleared through customs.

View full details

TAT Special FM-FX LTD

Introducing the TAT-Special FM-FX LTD, a limited-edition fixed-bridge model that combines exceptional sound quality with a stunning, one-of-a-kind design. The body top is crafted from premium flame maple, known for its beautiful grain and tonal richness, while the back is made from Australian blackwood, offering a unique aesthetic and enhanced sound. This limited production model boasts a level of craftsmanship that is as visually striking as it is sonically powerful.

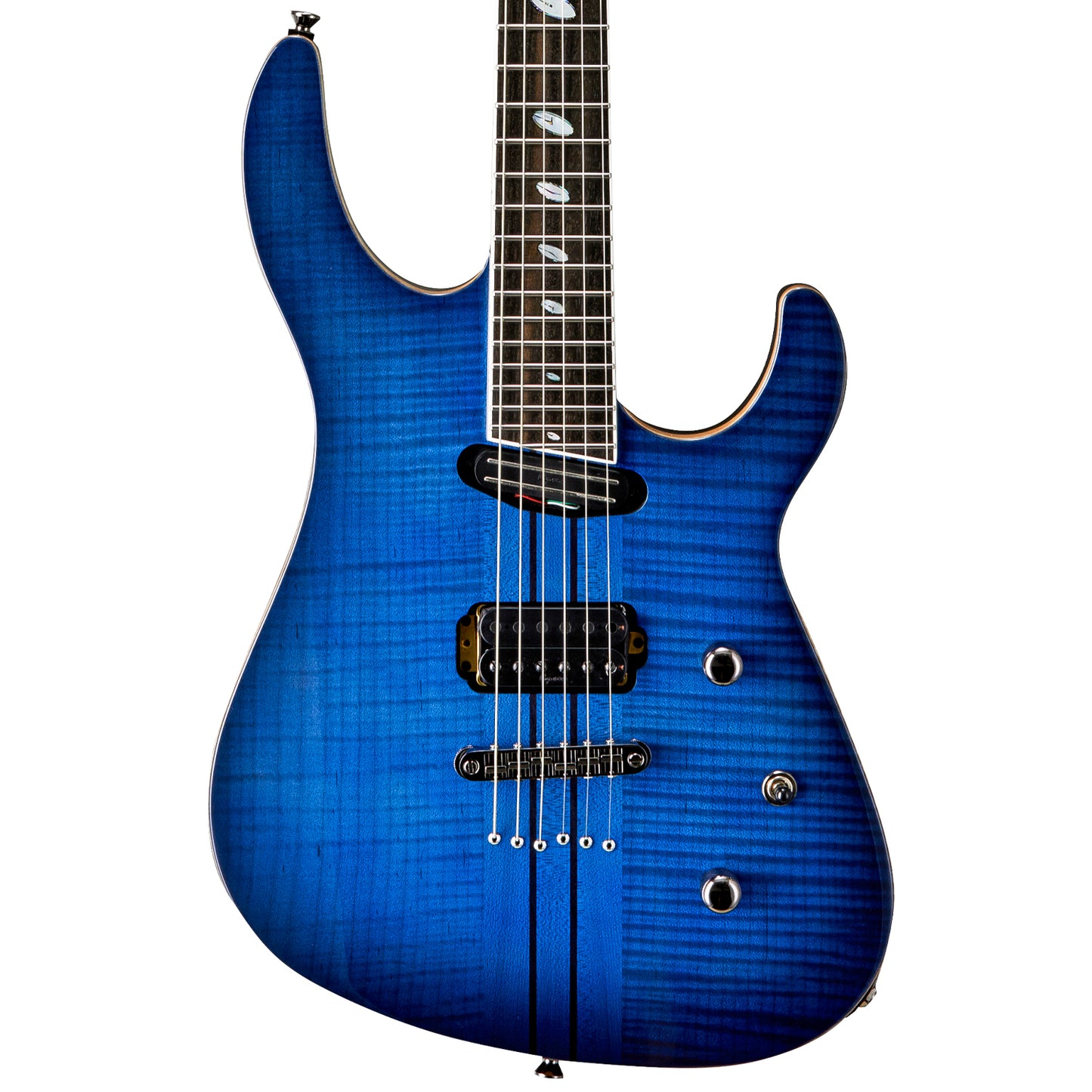

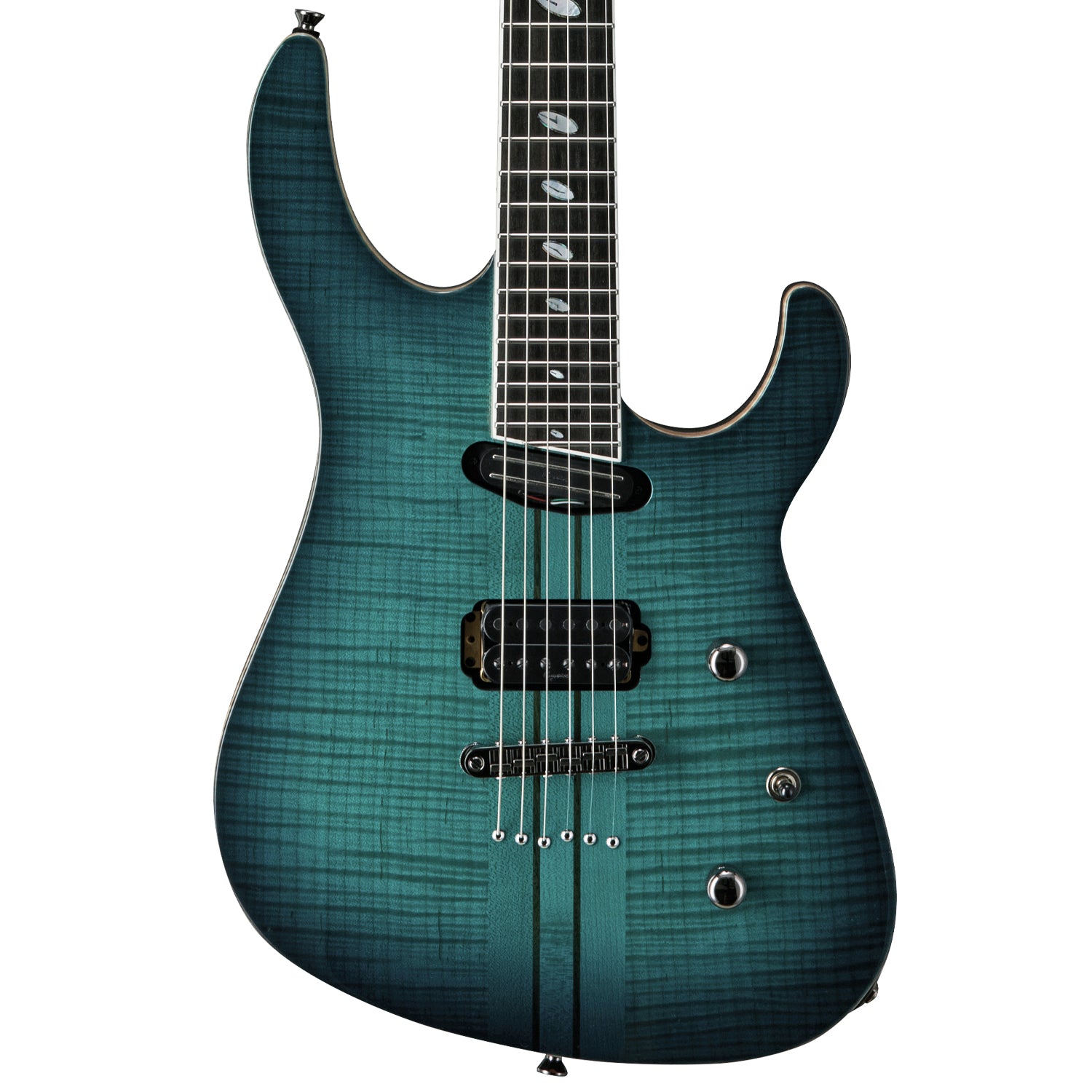

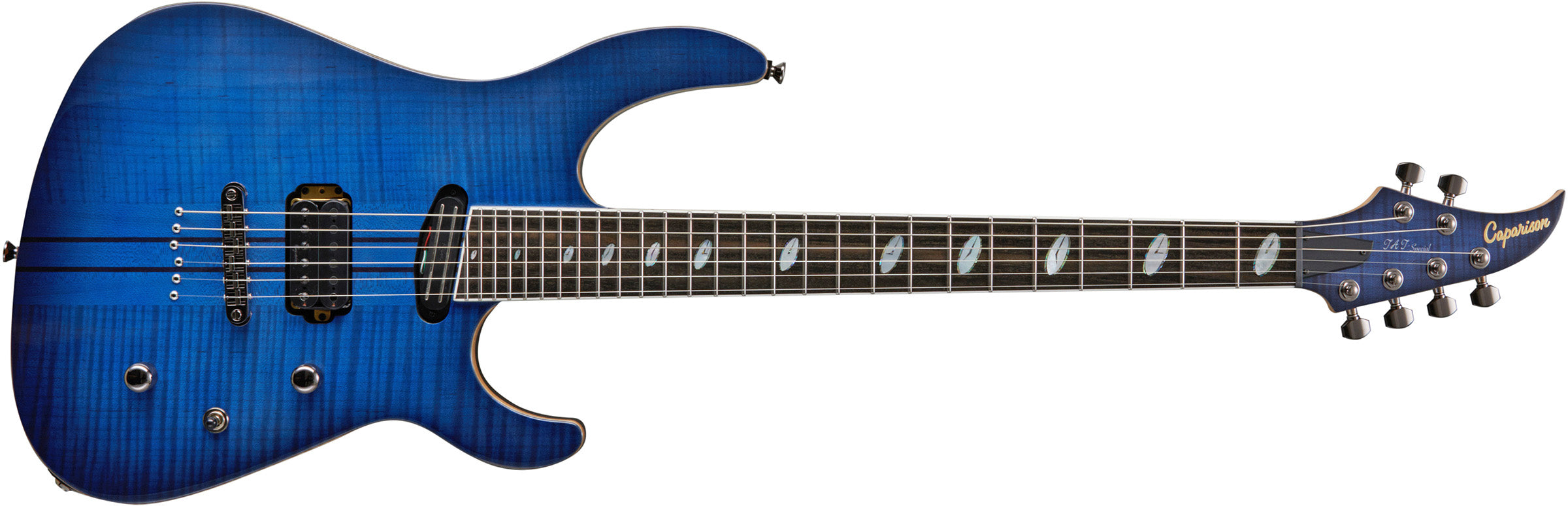

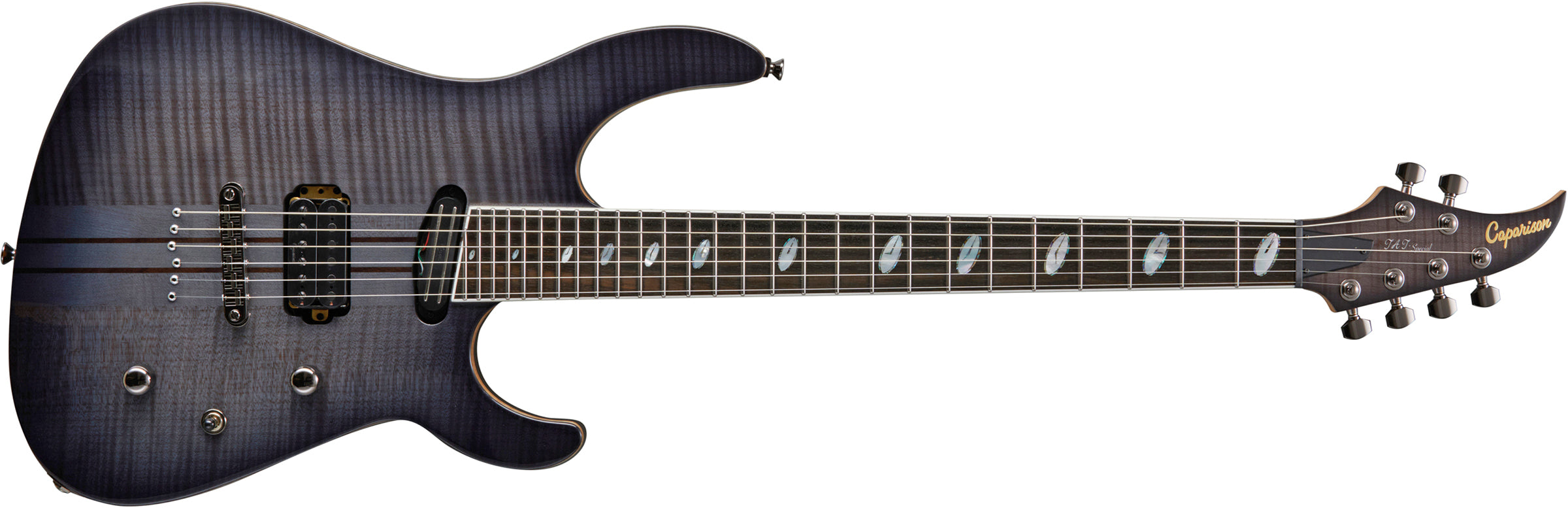

The TAT-Special FM-FX LTD features small stainless steel frets, designed for smooth playability and durability. Available in three eye-catching finishes—Black Flame, Blue Flame, and Green Flame—each color highlights the guitar’s distinctive curved top and carefully chosen flame maple.

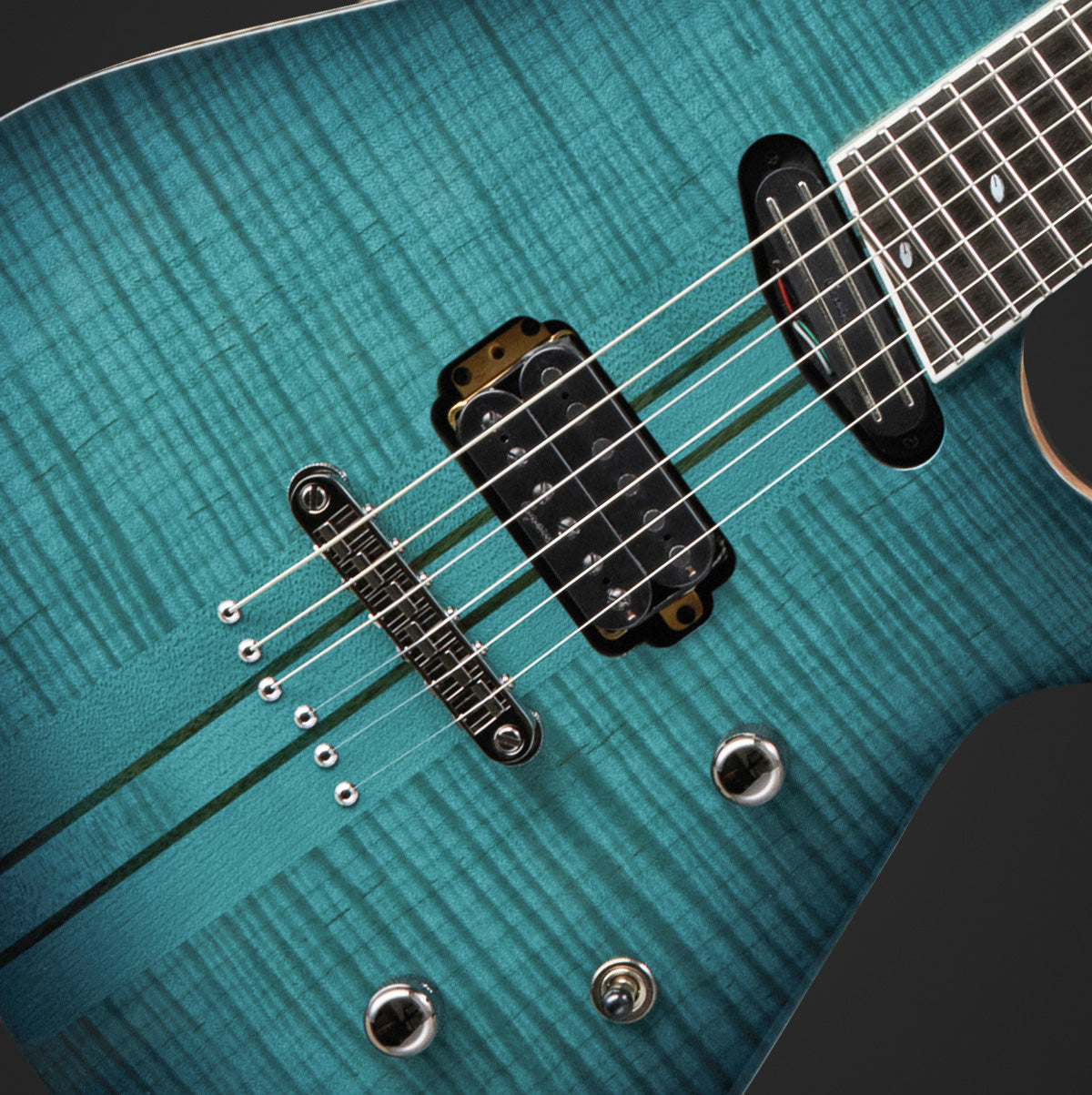

For exceptional sound reproduction, the guitar is equipped with a Caparison PH-Rm pickup on the bridge side, capturing the true essence of the body’s structure. The neck pickup is the exclusive Caparison SH-27FC, designed specifically for the 27th fret model, ensuring a full, neck-like sound even at the 27th fret. Additionally, the push-pull tone control allows users to split the coils of both the neck and bridge pickups, offering even greater tonal versatility.

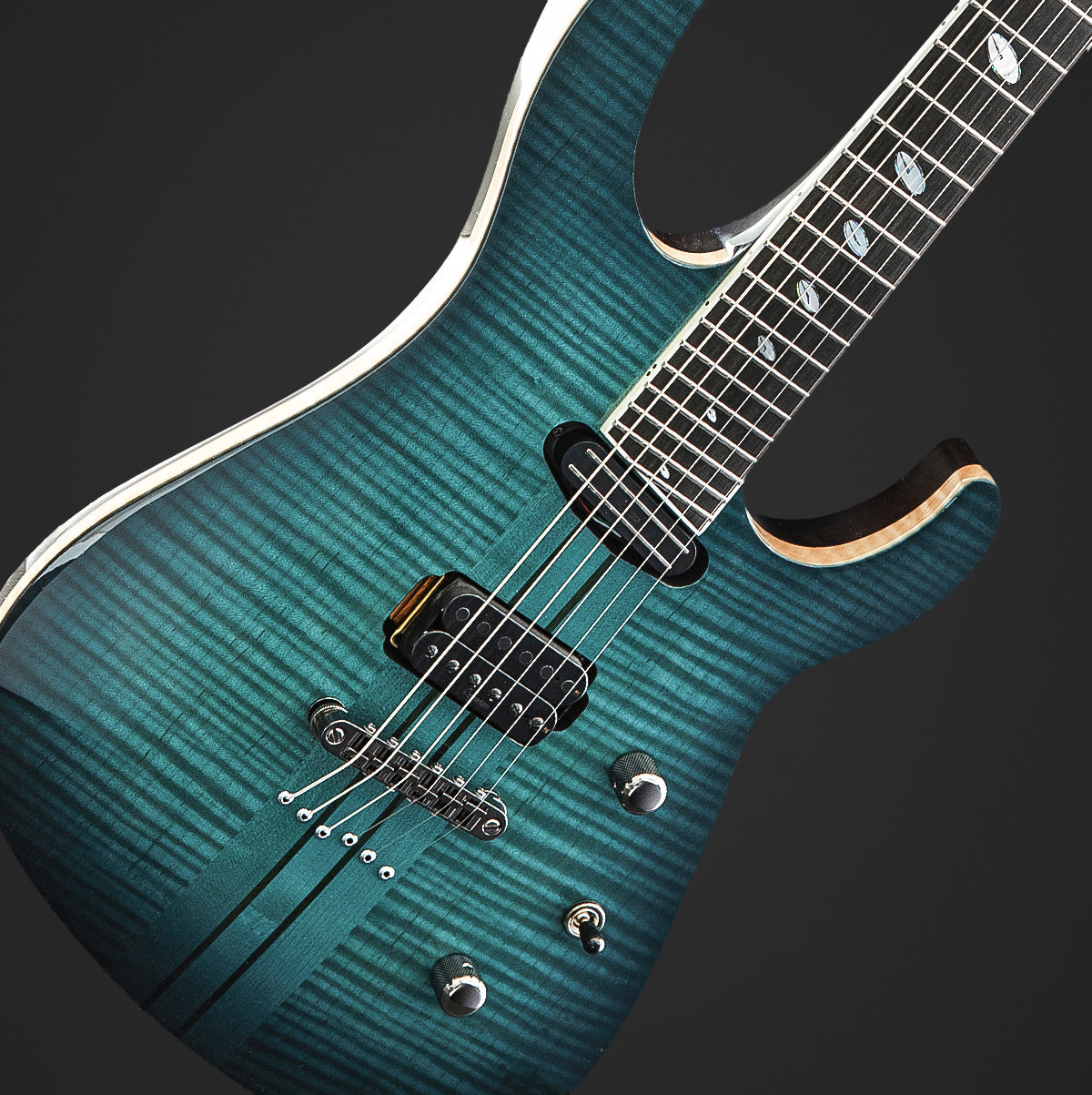

The TAT-Special’s design is built around a through-neck structure with flame maple not only used for its visual appeal but also as part of the body wings, contributing to a broader tonal range and incredible sustain. The 18mm-thick flame maple top and Australian blackwood back provide a rich, dynamic sound. For strength and stability, the guitar features a 5-piece maple-walnut neck, ensuring a balanced tone and lasting performance.

Thanks to its unique TAT Curve Top body structure, the TAT-Special offers unrivaled playability and comfort without compromising on sound quality. Whether you're looking for a versatile instrument with a rich, sustaining tone or a stunning design that stands out, the TAT-Special FM-FX LTD delivers on all fronts.

Body & Finish

Model: TAT Special FM-FX LTD
Body Shape: TAT Special
Body Top: Master Grade Flame Maple
Body: Australian Blackwood
Bridge: Gotoh GE-103B-T, String Through
Finish: Black Flame, Blue Flame, Green Flame
Neck Finish: Urethane Matte
Headstock Finish: Matching Body
Hardware Finish: Cosmo Black

Neck & Head

Neck Joint: Through Neck
Neck Material: Maple & Walnut 5-Piece
Neck Profile: Caparison
Fretboard: Ebony
Binding: White, Black Dots
Fretboard Radius: 350mmR to 400mmR
Scale Length: 648mm (25 1/2″)
Nut: 42mm Graph Tech Black TUSQ
Frets: 27 Small, Stainless Steel
Position Inlay: Clock Inlays

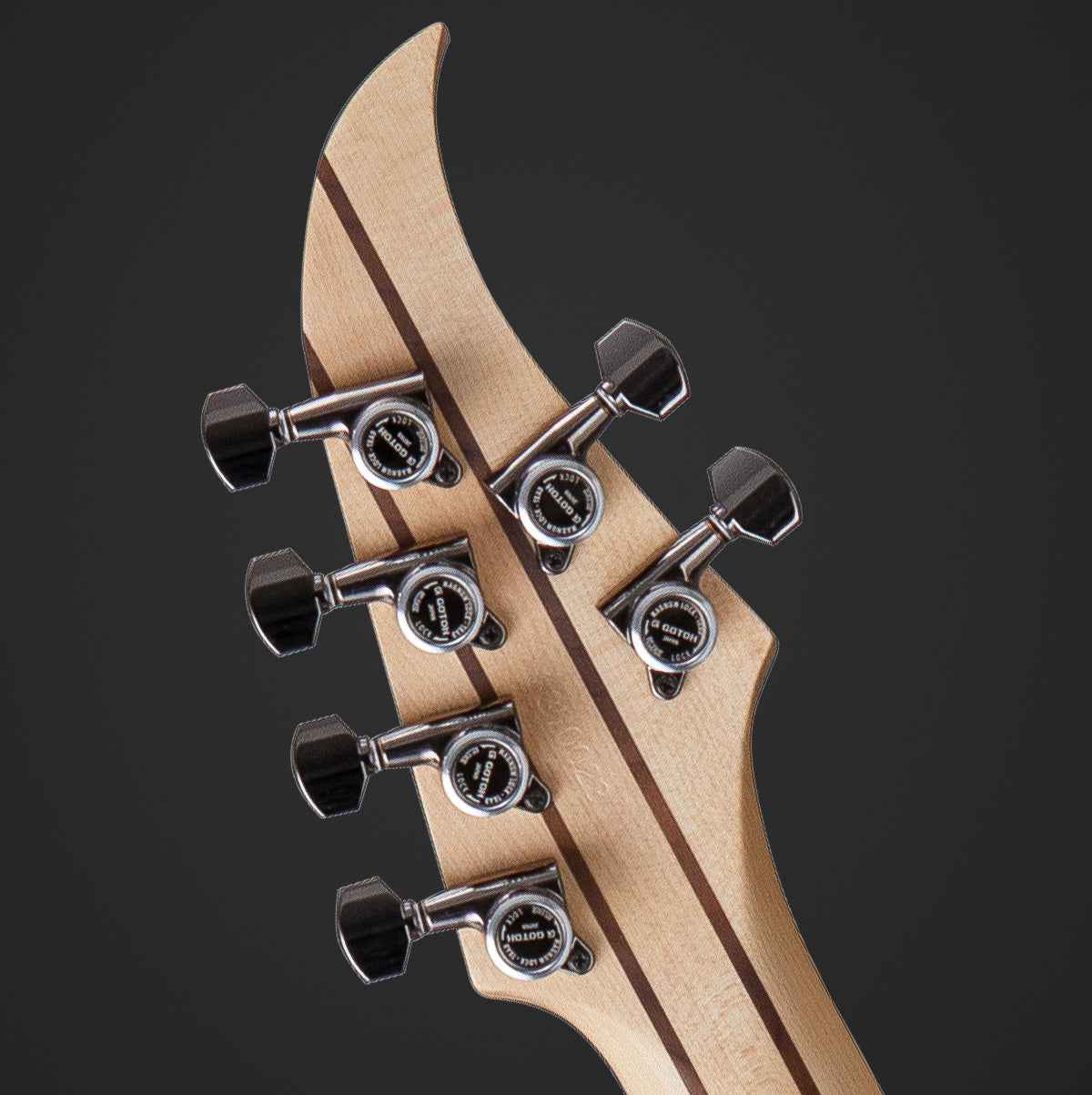

Headstock: Devil’s Tail, TAT Sp. Logo
Headstock Angle: 15 Degrees
Tuners: Gotoh SG381-07 MG-T Locking

Electronics & Extras

Neck PU: Caparison SH-27FC
Middle PU: None
Bridge PU: Caparison PH-R
Controls: CTS Volume, 3-Way Toggle, Tone Push-Pull
Strings: RotoSound R9 (.009-.042)
Tuning: Regular (EADGBE)
Case: Reunion Blues Voyager
Extras: Certificate of Authenticity signed by Caparison Lead Designer, Tools, Fretguard with Moisture Control

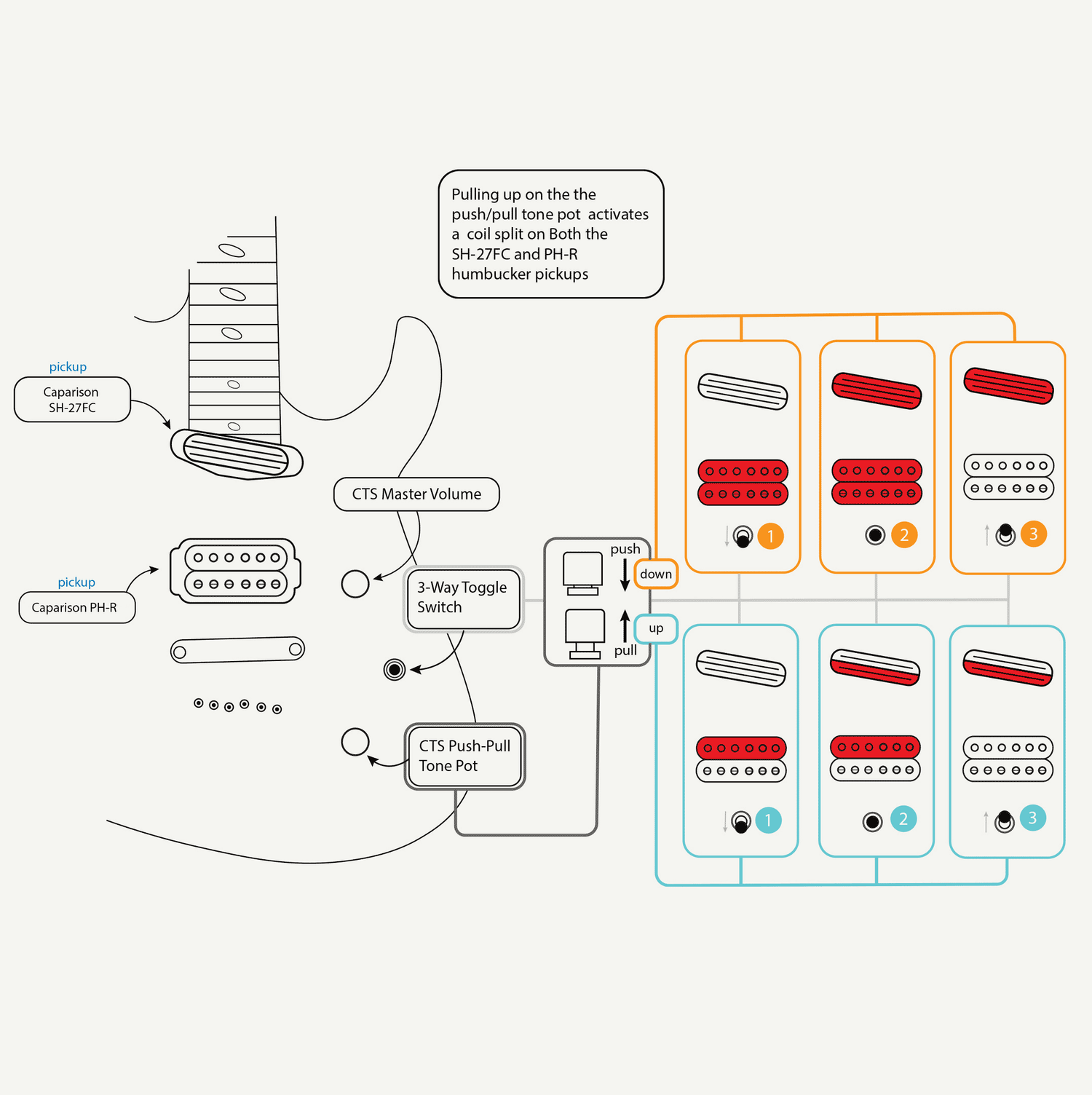

Custom Switching

TAT-Special FM-FX LTD features a push-pull switch integrated into the tone control for expanded tonal flexibility. Pulling up the tone knob coil-splits both the neck and bridge pickups, unlocking a wide range of sounds—from the powerful drive of full humbuckers to the clarity and articulation of single-coil tones.

Through and Through

The Caparison through-neck is engineered for speed, comfort, and fatigue-free play, while its seamless design maximizes sustain and resonance. This unique construction takes full advantage of a neck-through design: the natural curve of the body top serves as the neck angle, bringing the neck closer to the player. The result is a more natural playing posture, especially when reaching higher frets beyond the 12th. A slanted neck joint heel further enhances playability, ensuring effortless access to the upper register.

Special Features

1 of 4

Caparison Neck Profile

Play faster, smoother, and longer with Caparison’s ergonomic neck grip. Designed for effortless left-hand movement, it features subtle contouring for natural thumb shifts—flatter near the nut, gradually curving toward the body. With a moderate thickness for comfort and stability, it’s built for fatigue-free performance.

Hand Crafted in Japan Since 1995

Since its founding in Japan in 1995, Caparison Guitars has been dedicated to building instruments of uncompromising quality. Each guitar is hand-crafted by skilled Japanese luthiers, combining innovative design with meticulous attention to detail. This tradition of excellence has earned Caparison a worldwide reputation for precision, playability, and a uniquely powerful tone.
