Horus-WB-FX EF/MF

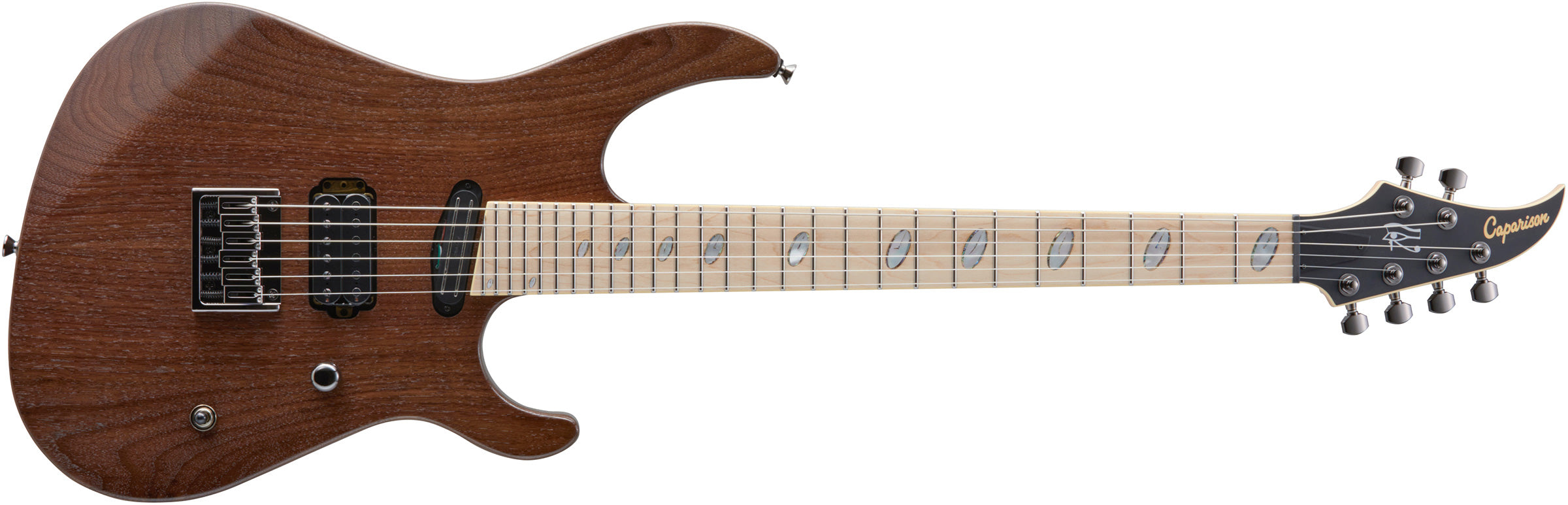

The latest incarnation of Caparison’s fixed bridge Horus model is the Horus-WB-FX.
In efforts to further refine the Horus FX, Caparison have developed the new WB body construction, featuring a walnut top and Australian blackwood back for a thick yet punching tone that doesn't get lost in the mix, which is beautifully complemented by a specifically designed set of Caparison pickups that will deliver the monstruous rock tones that people cherish in this model, yet will provide you with equally convincing rich and dynamic tones in more subdued settings when high gain isn't a part of the sonic palette.

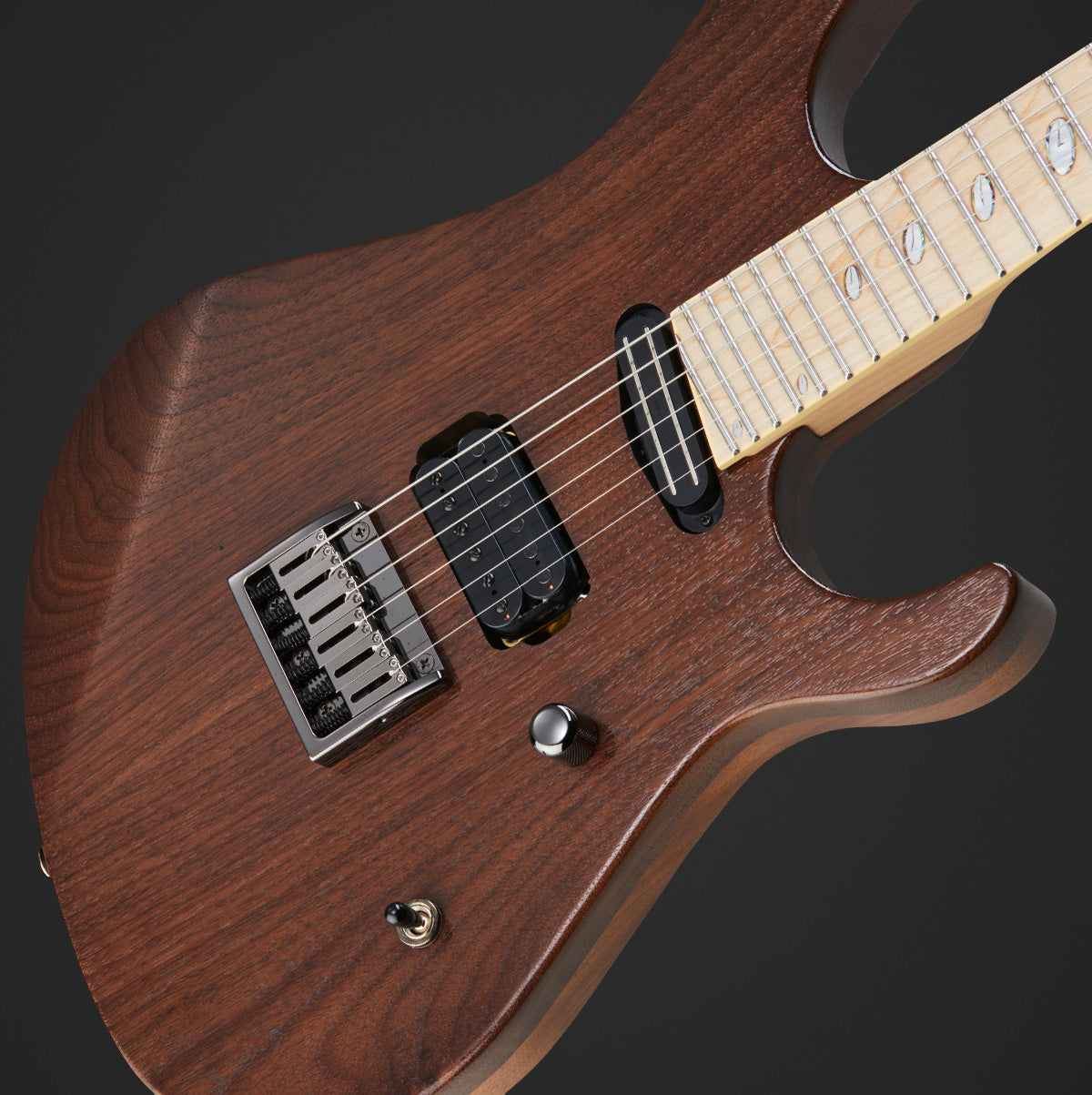

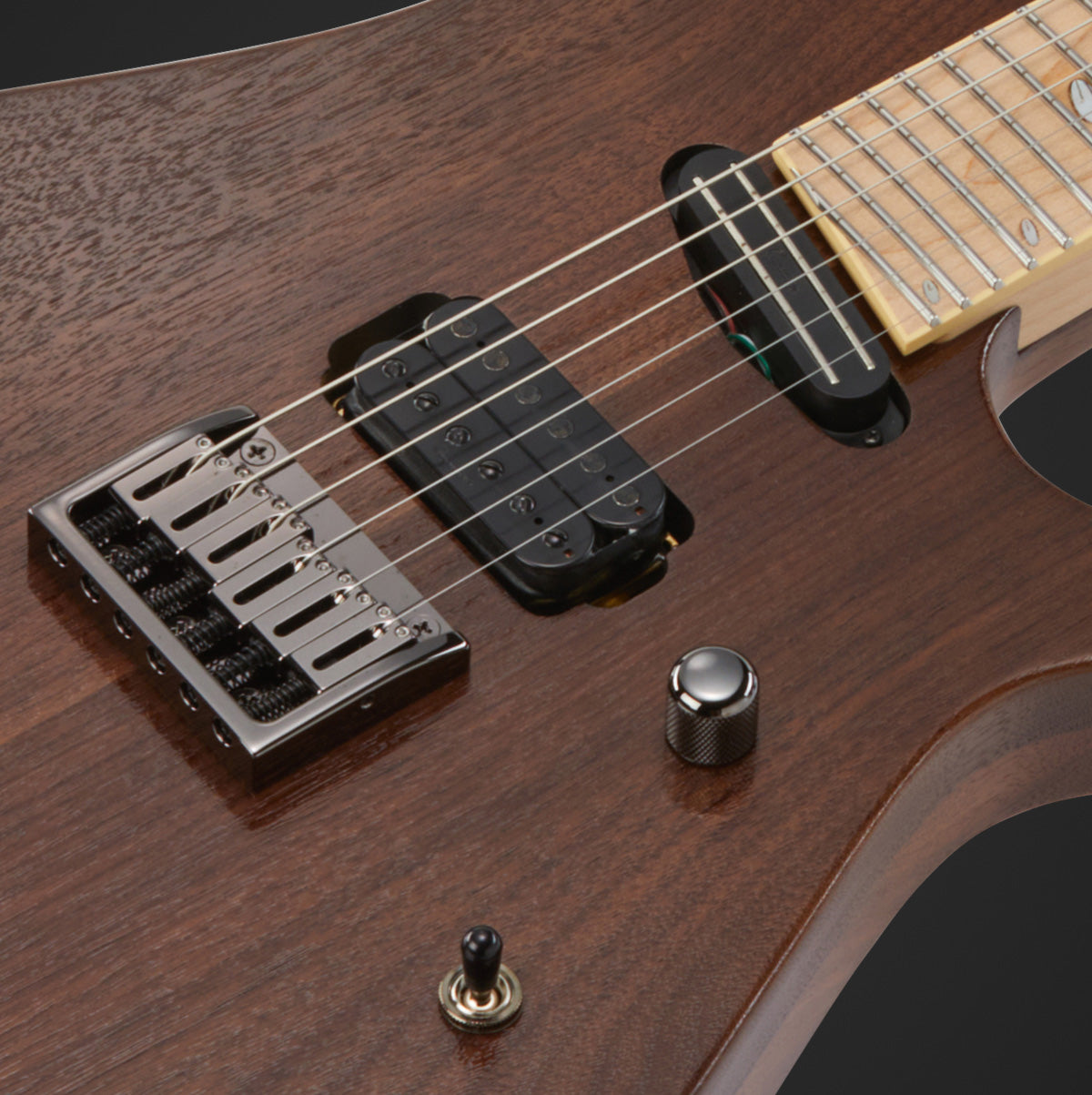

Further upgrades include the revised high mass Caparison fixed bridge, which offers both clear and rich note attack with excellent sustain and a huge range of adjustment for standard all the way to very low tunings, and Jescar jumbo stainless steel frets, which further augment the clarity while possessing superior durability even under the most demanding circumstances.

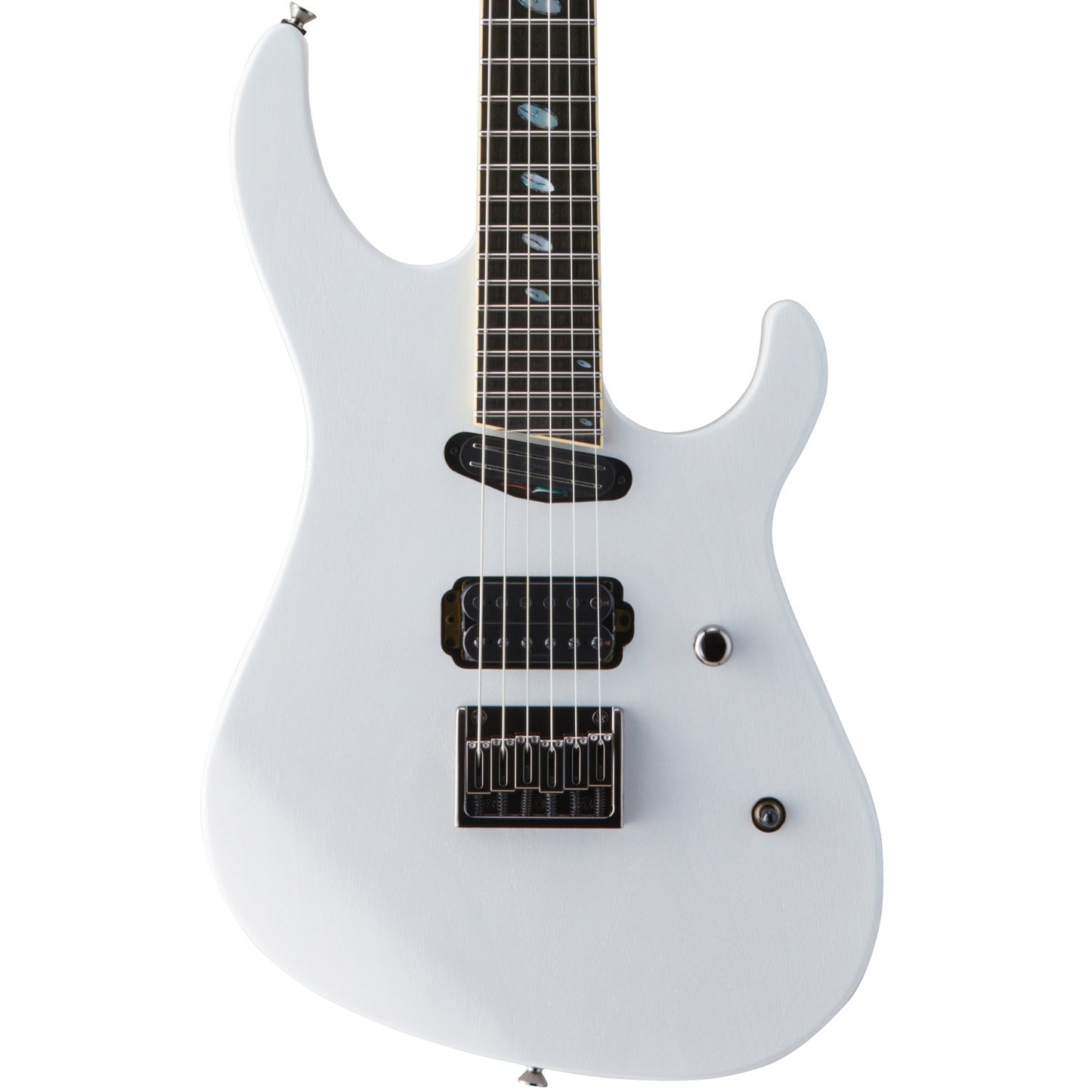

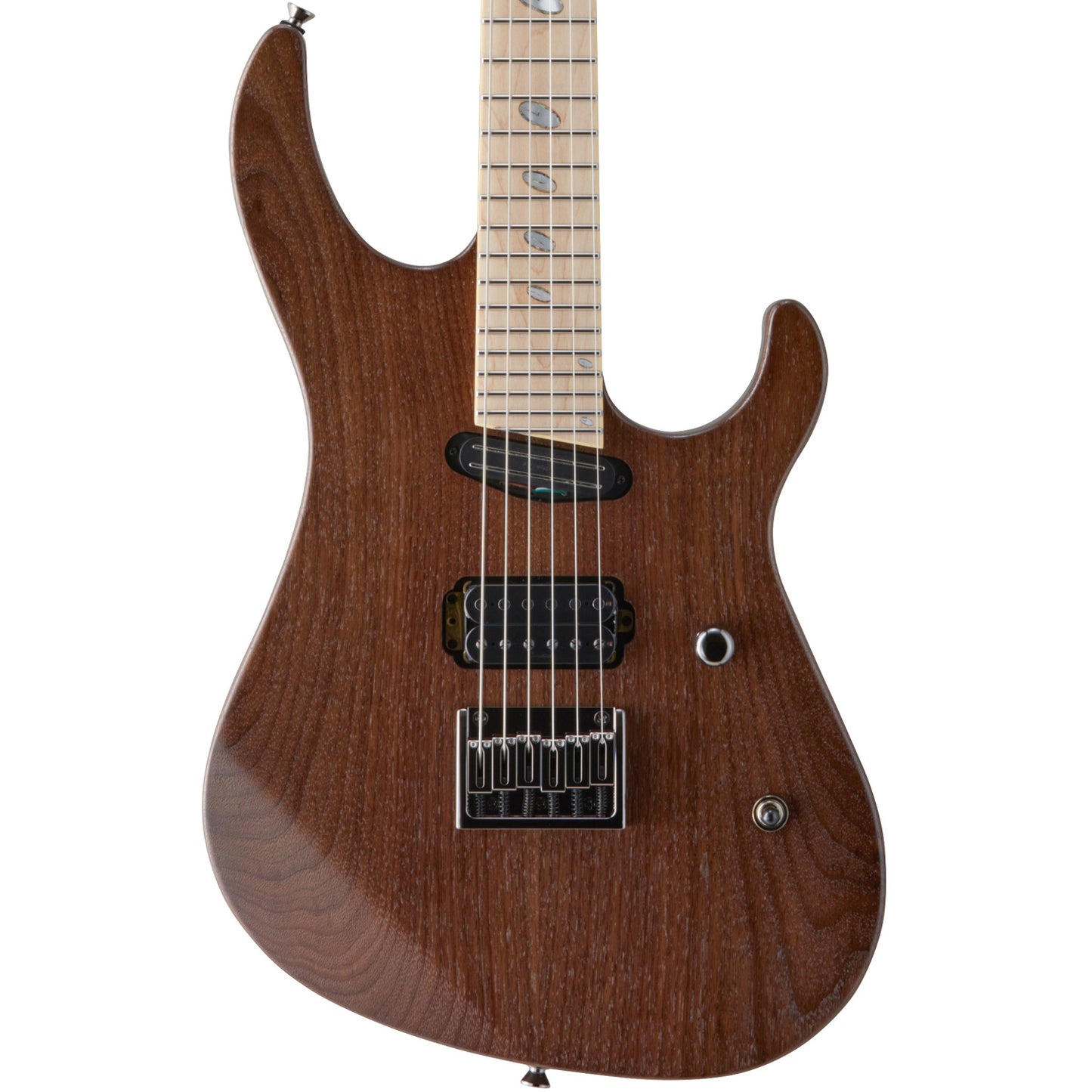

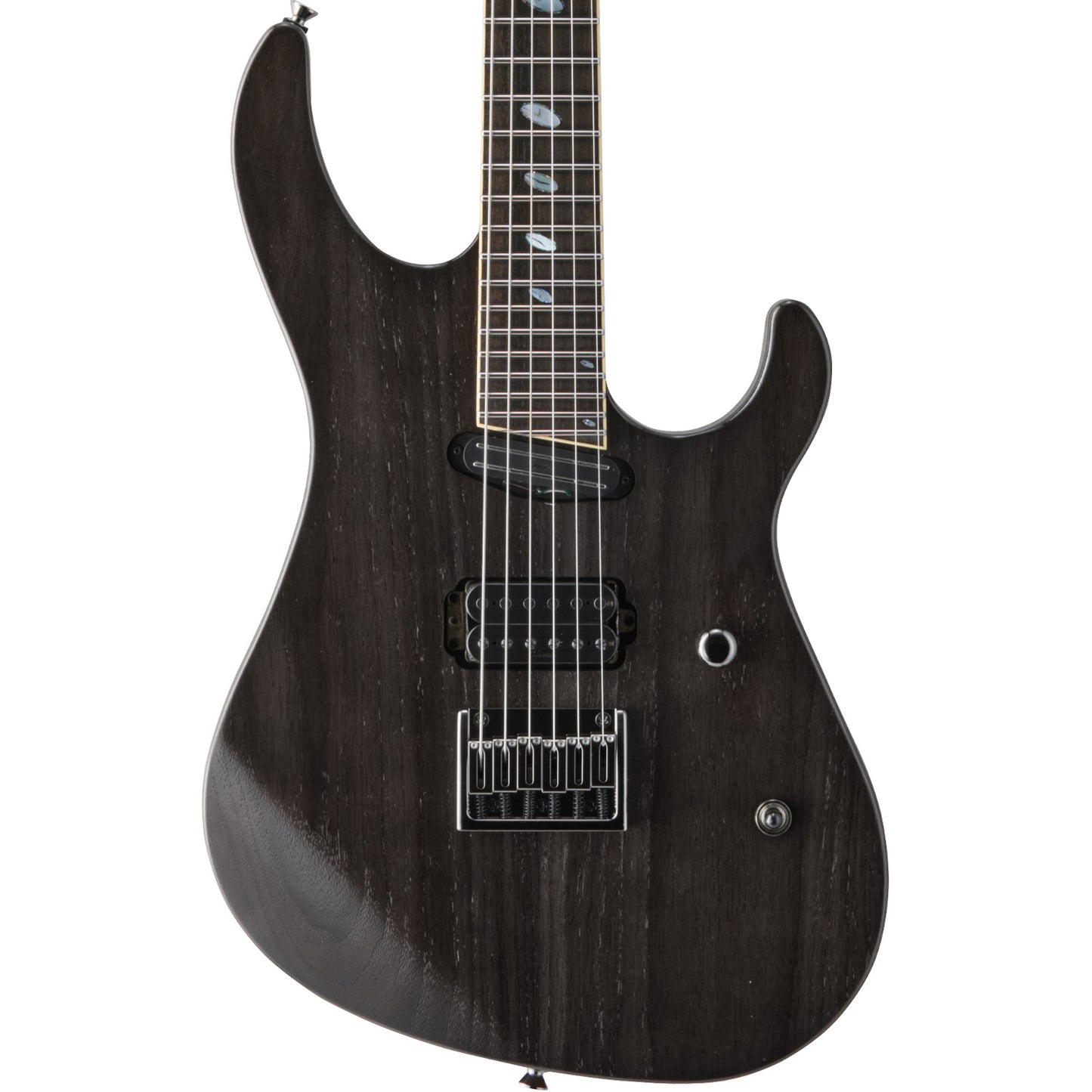

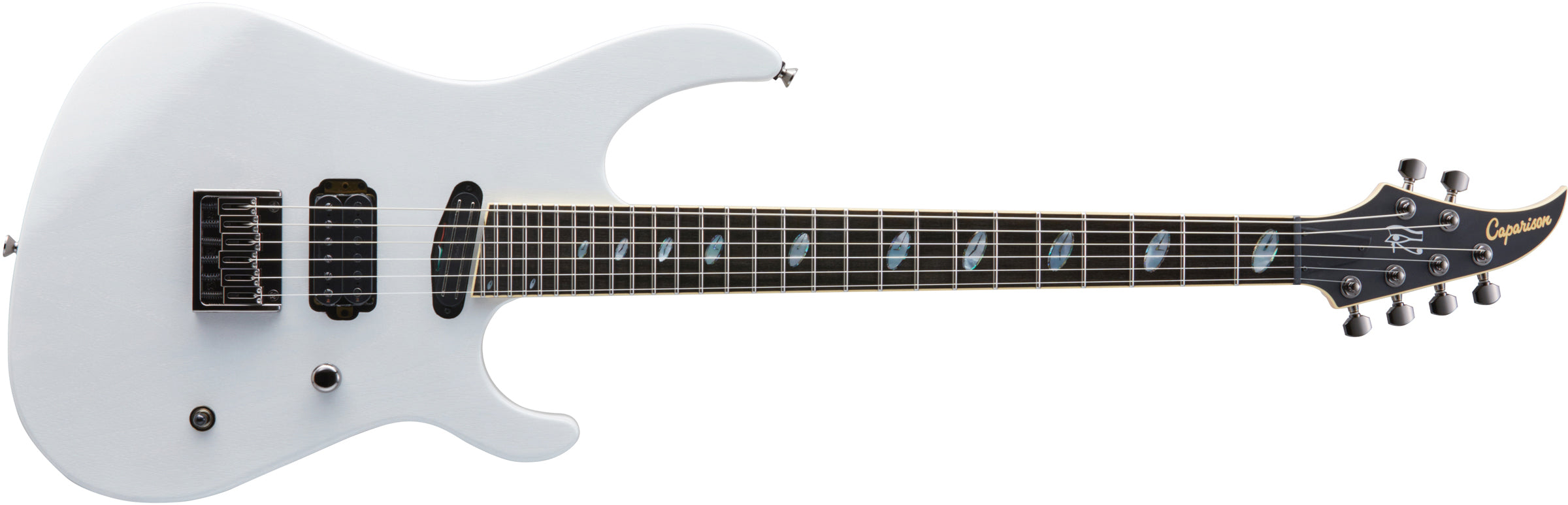

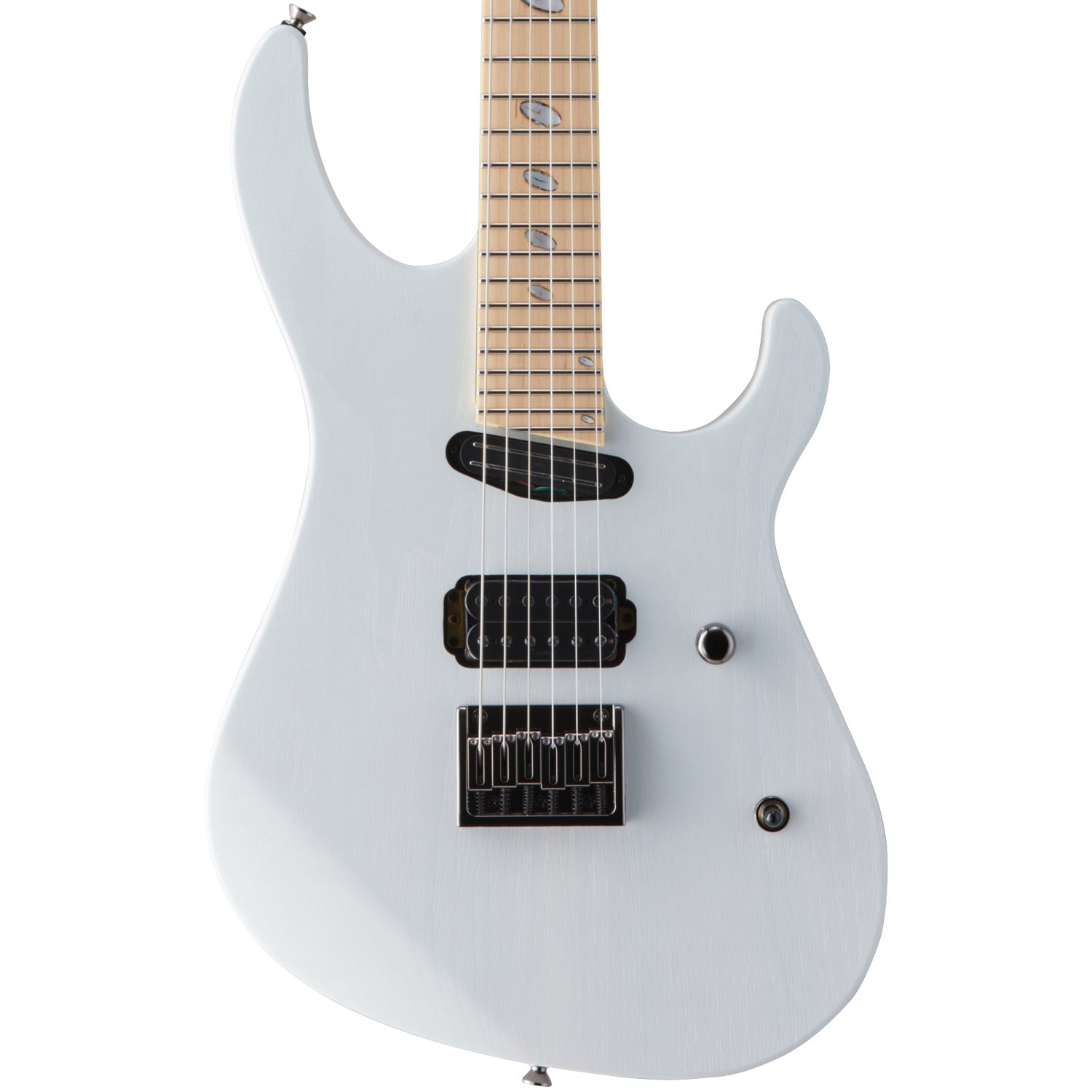

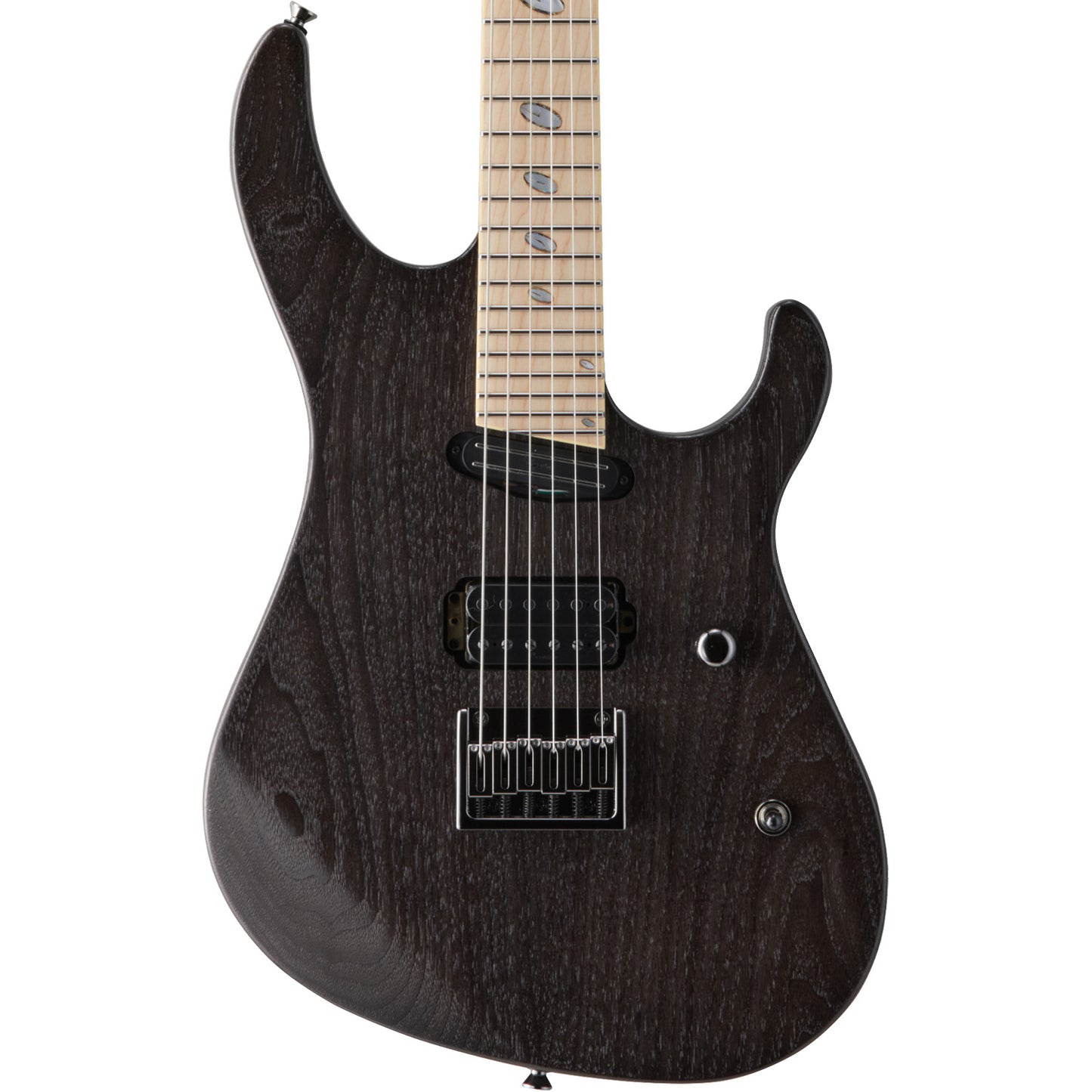

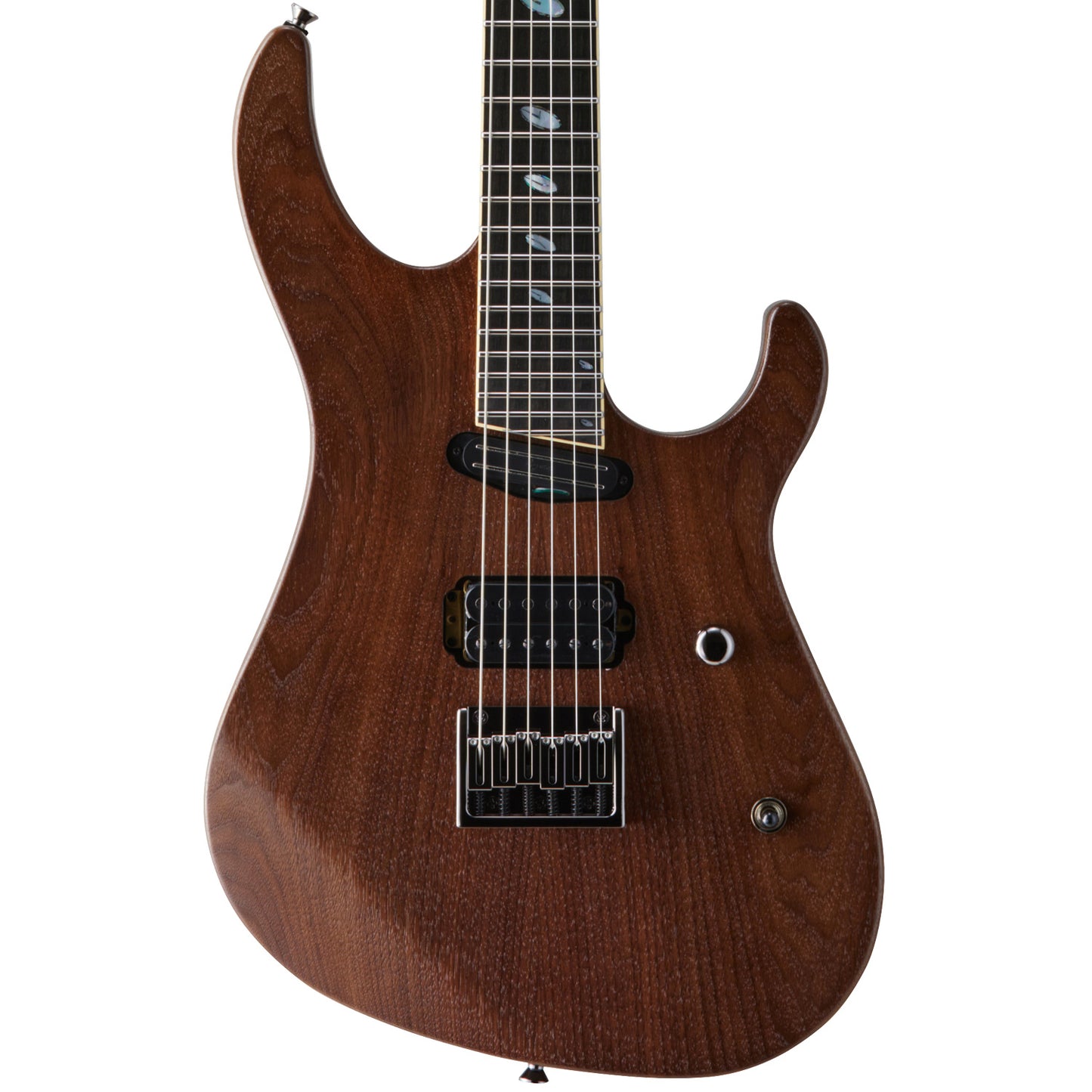

While performance is of paramount importance, aesthetics are not forgotten and the new Horus-WB-FX also features a fully bound neck as seen on its floating bridge brethren, Caparison’s renowned clock inlays on your choice of an ebony or maple fretboard and 3 stunning new finishes, all which showcase the walnut top's grain as subtly or ostensibly as you may desire: transparent white, transparent charcoal black and natural.




Body & Finish
Model: Horus-WB-FX
Body Shape: Horus (2nd Generation)
Body Top: Black Walnut
Body: Australian Blackwood
Bridge: Caparison Fixed Bridge6
Finish:
Neck Finish: Urethane Matte
Headstock Finish: Pro. Black
Hardware Finish: Cosmo Black

Neck & Head
Neck Joint: Bolt-on
Neck Material: Maple & Walnut 5-Piece
Neck Profile: Caparison
Fretboard: Ebony or Maple
Binding: Ivory Colored, Black Dots
Fretboard Radius: 350mmR to 400mmR
Scale Length: 628mm (24 3/4")
Nut: 42mm Graph Tech Black TUSQ
Frets: 27 Jumbo, Stainless Steel
Position Inlay: Clock Inlays

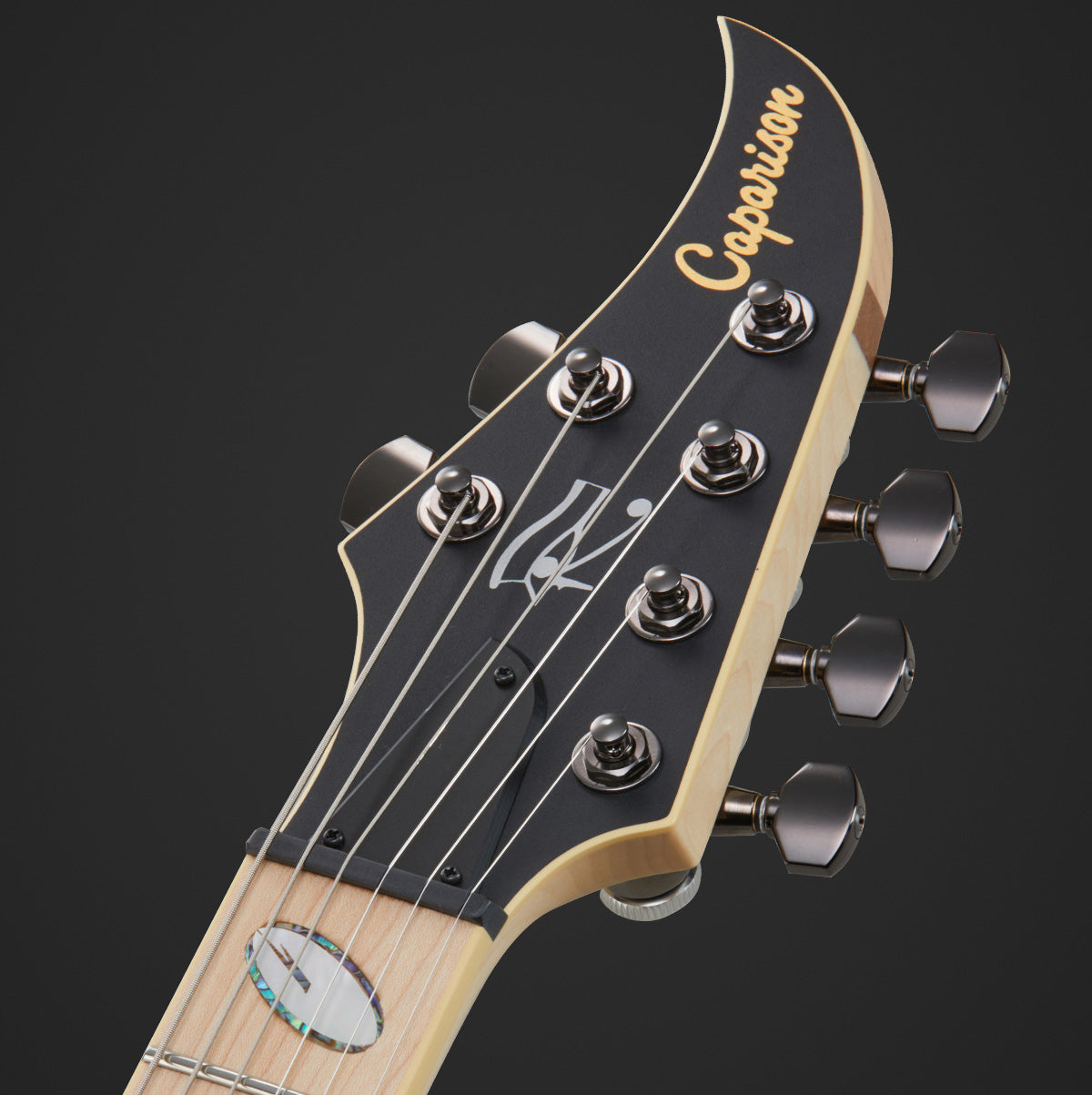

Headstock: Devil’s Tail, Wadjet Eye Logo
Headstock Angle: 15 Degrees
Tuners: Gotoh SG381-07 MG-T

Electronics & Extras
Neck PU: Caparison SH-27FC
Middle PU: None
Bridge PU: Caparison PH-R
Controls: CTS Volume, 3-Way Toggle
Strings: RotoSound R10 (.010-.046)
Tuning: D Standard (DAFCGD)
Case: Reunion Blues Voyager
Extras: Certificate of Authenticity signed by Caparison Lead Designer, Tools, Fretguard with Moisture Control

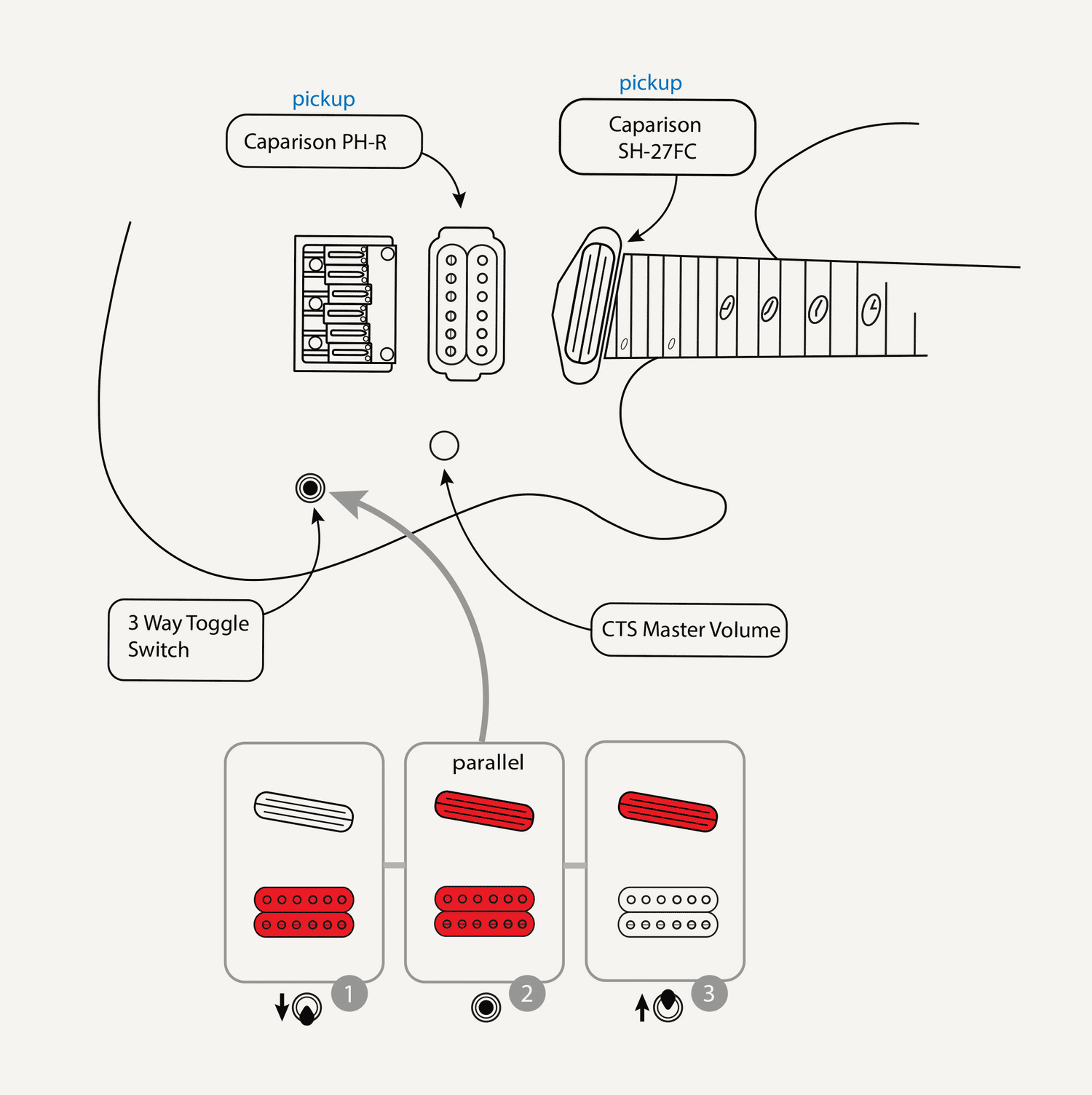

Custom Switching
Flawless Connection
Special Features

Caparison Neck Profile
Hand Crafted in Japan Since 1995
Since its founding in Japan in 1995, Caparison Guitars has been dedicated to building instruments of uncompromising quality. Each guitar is hand-crafted by skilled Japanese luthiers, combining innovative design with meticulous attention to detail. This tradition of excellence has earned Caparison a worldwide reputation for precision, playability, and a uniquely powerful tone.
