Dellinger7-WB-FX EF/MF

Dellinger7-WB-FX EF/MF

4,179 USD
4,179 USD
Sale Sold out
Finish
Fretboard
Low Stock

DHL Express Delivered Duty Paid (DDP) shipping included. Get your new guitar in approximately 2 to 5 business days, without the hassle of surprise costs or customs delays. All taxes, duties, and fees are included in the price upfront, so once you place your order, it’s shipped straight to your door — fully insured, tracked, and cleared through customs.

View full details

Dellinger7-WB-FX EF/MF

The latest evolution of the popular Dellinger7 series is based around a new and inspired confluence of tone woods.

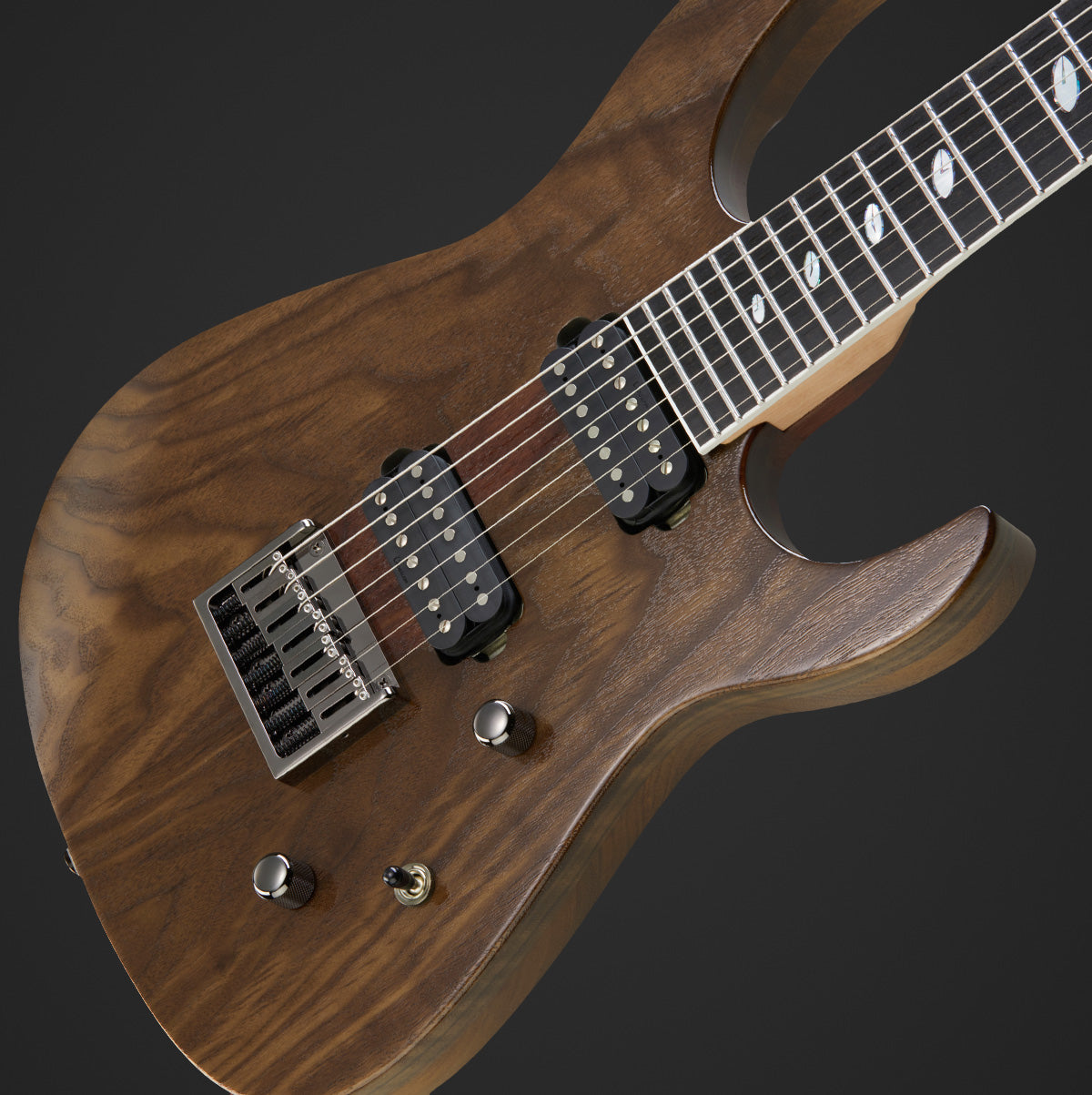

The newly constructed bipartite body composition now features a select Walnut top section with an Australian Blackwood foundation. This distinctive combination provides an engaging, sustain rich tone with exceptional clarity in the mid to high frequency range. It implements a well defined, clear and articulate note separation that is essential for a phonically extended 7 stringed instrument.

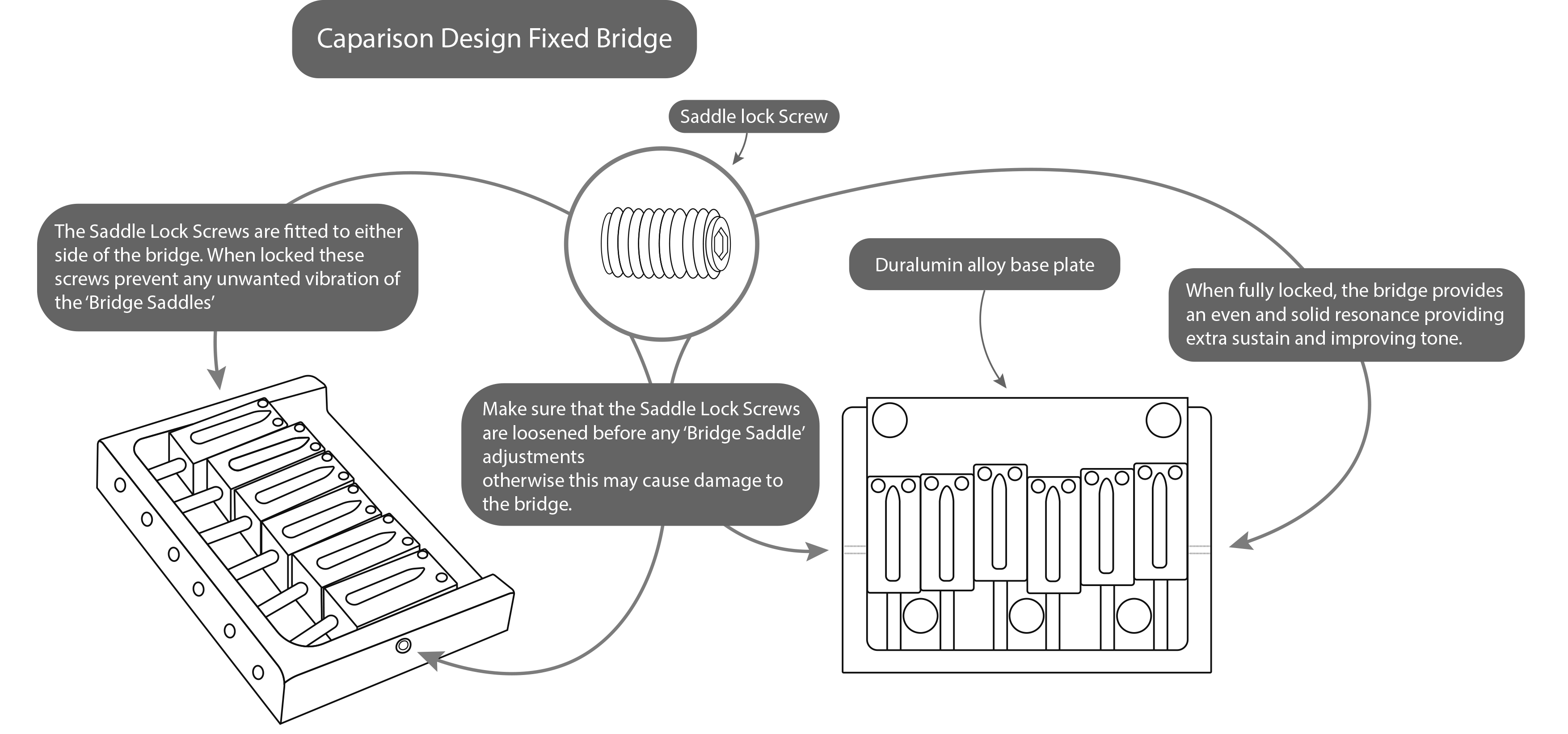

The inclusion of Jescar stainless steel jumbo frets further enhances the discernible clarity. The new Dellinger7-WB-FX also features the unique Caparison designed high mass ‘Fixed Bridge7’ which effortlessly deals with a variance of string gauges and extreme tunings while maintaining stability and sonic reinforcement. This stability is further enhanced by the use of Gotoh MG-T locking tuners and a Graph Tech Black TUSQ nut.

Caparison made high output PH7-bm and PH7-nm humbucking pickups adds a unique and complimentary tonal colouration to the Dellinger7-WB-FX, providing a whole gamut of timbres from an ultra aggressive growl to the sweetest bell-like harmonic cleans. A range that is further enhanced by a push-pull master tone pot, which simultaneously splits the coils in both the bridge and neck pickups, providing that classic single coil crisp glassy twang.

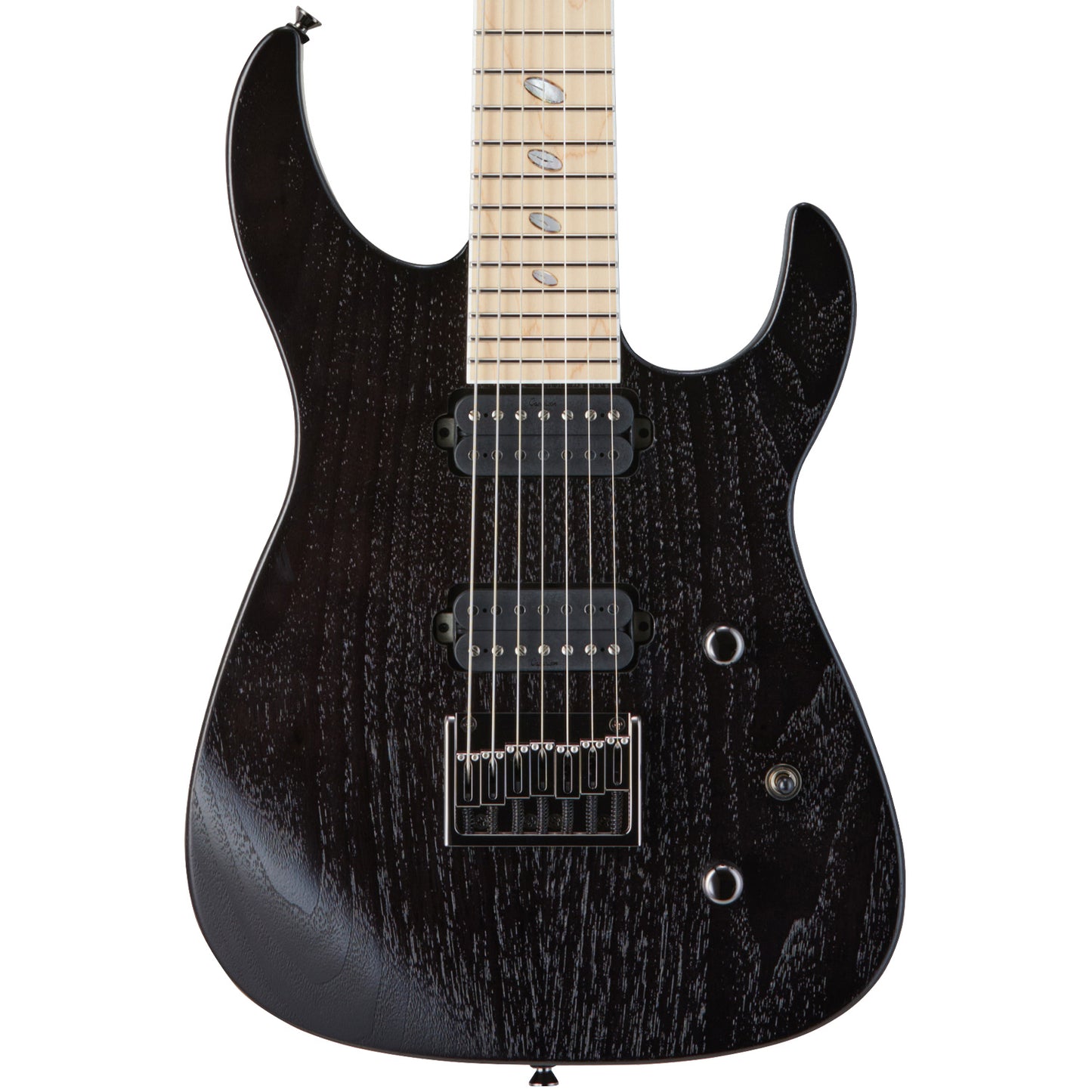

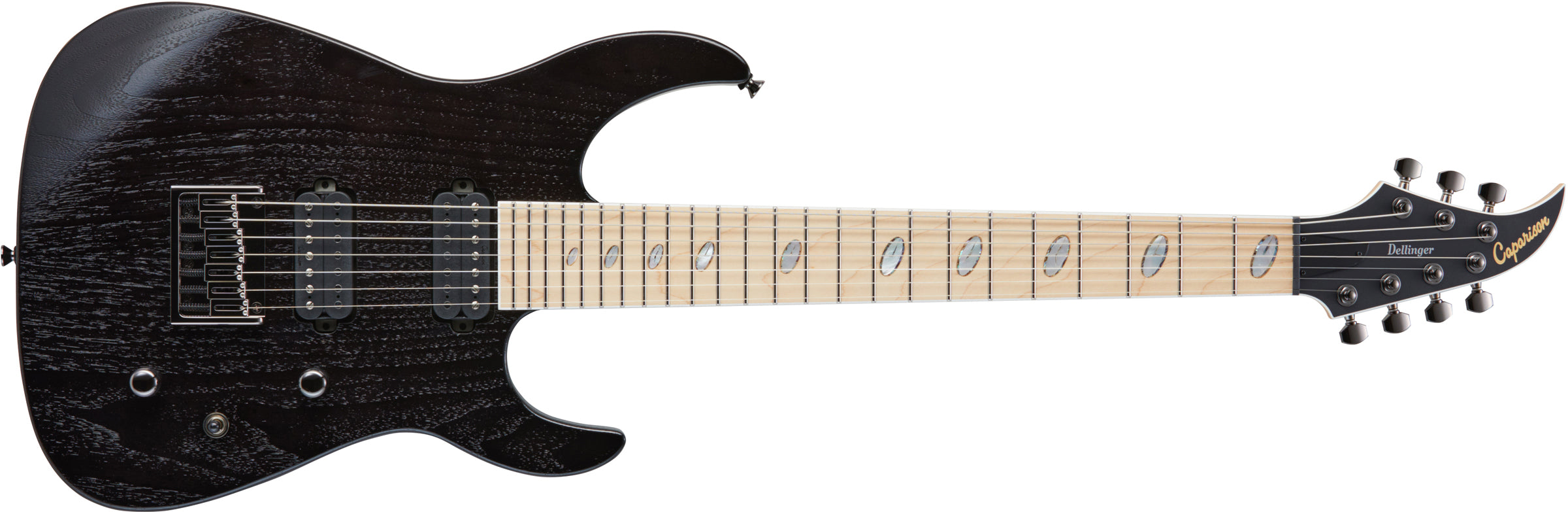

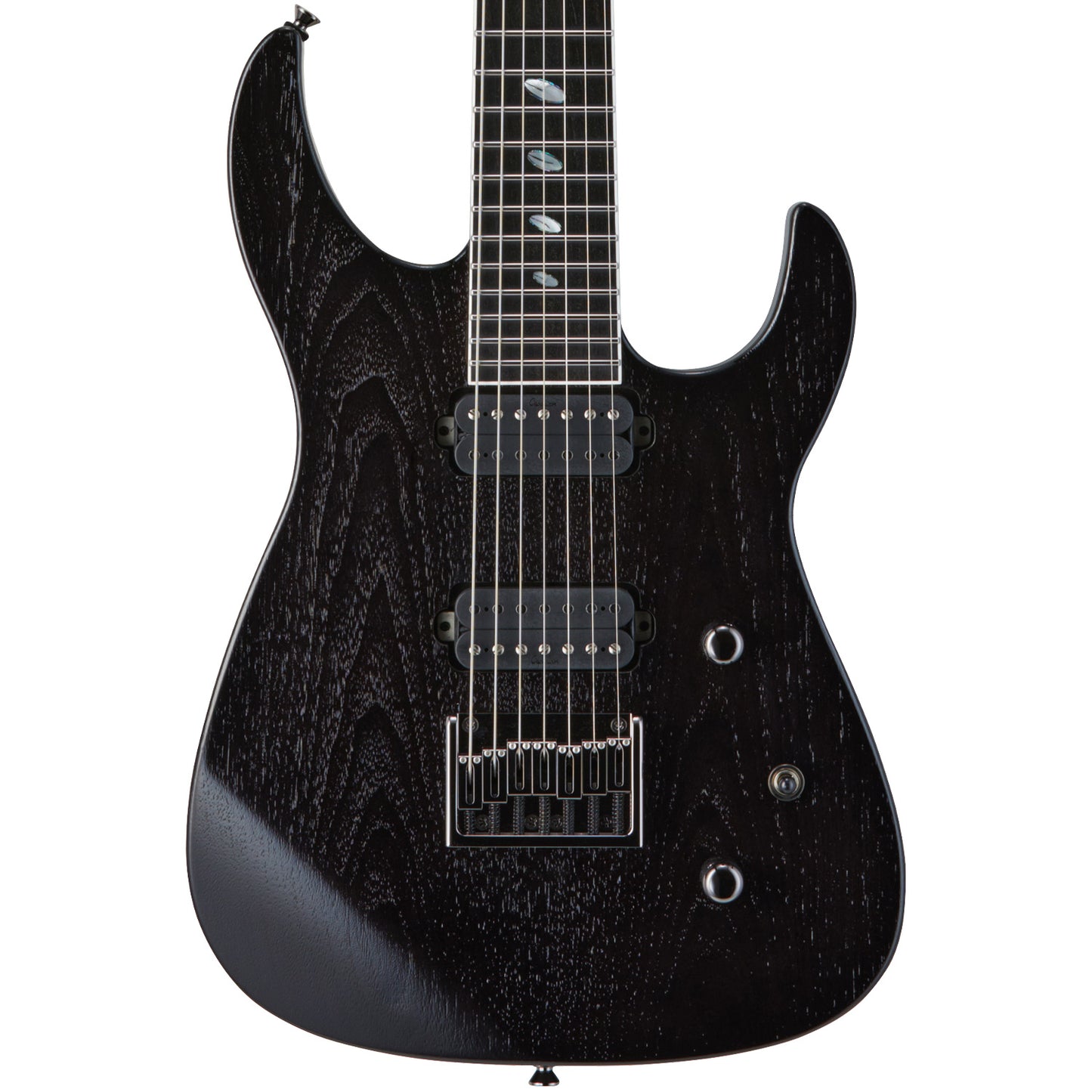

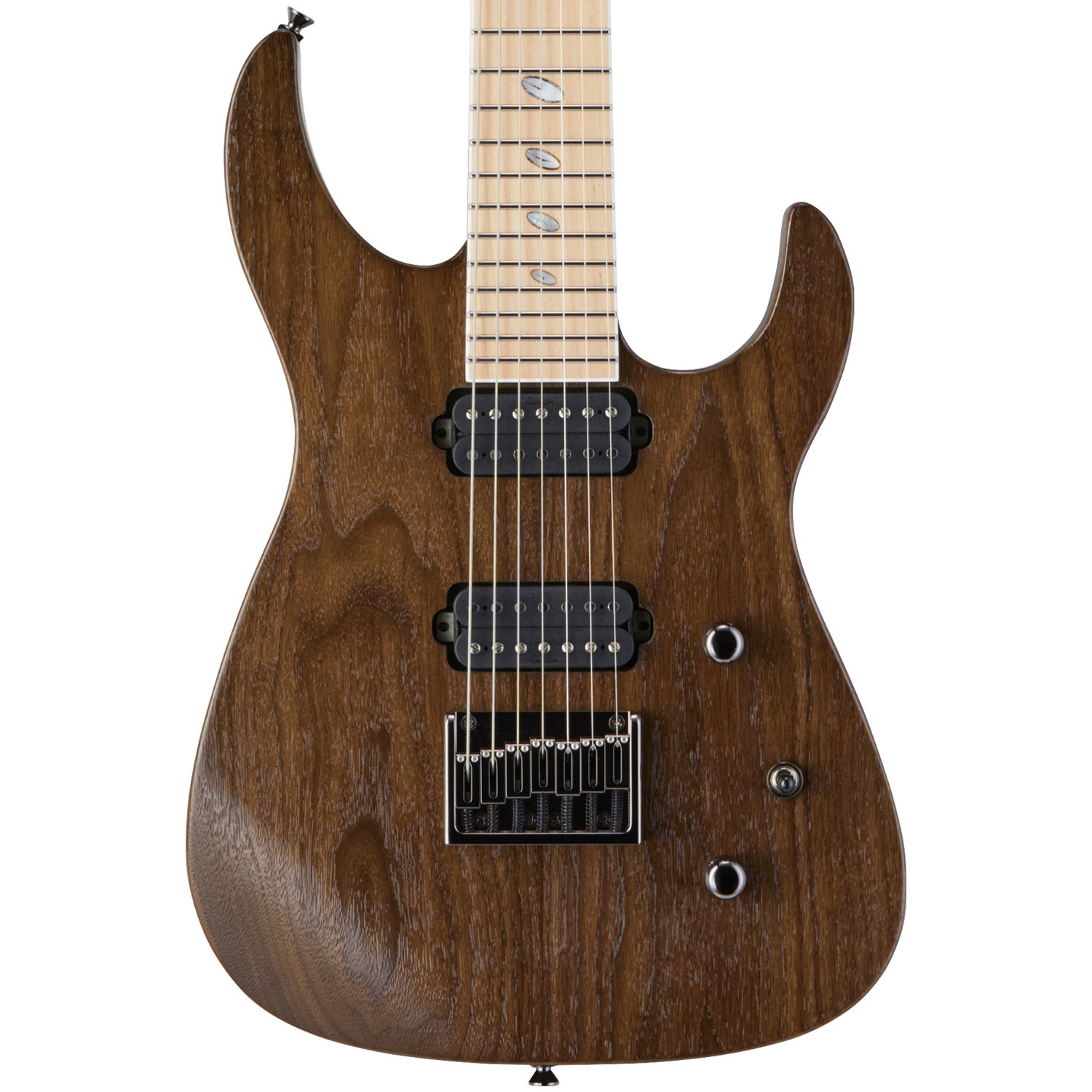

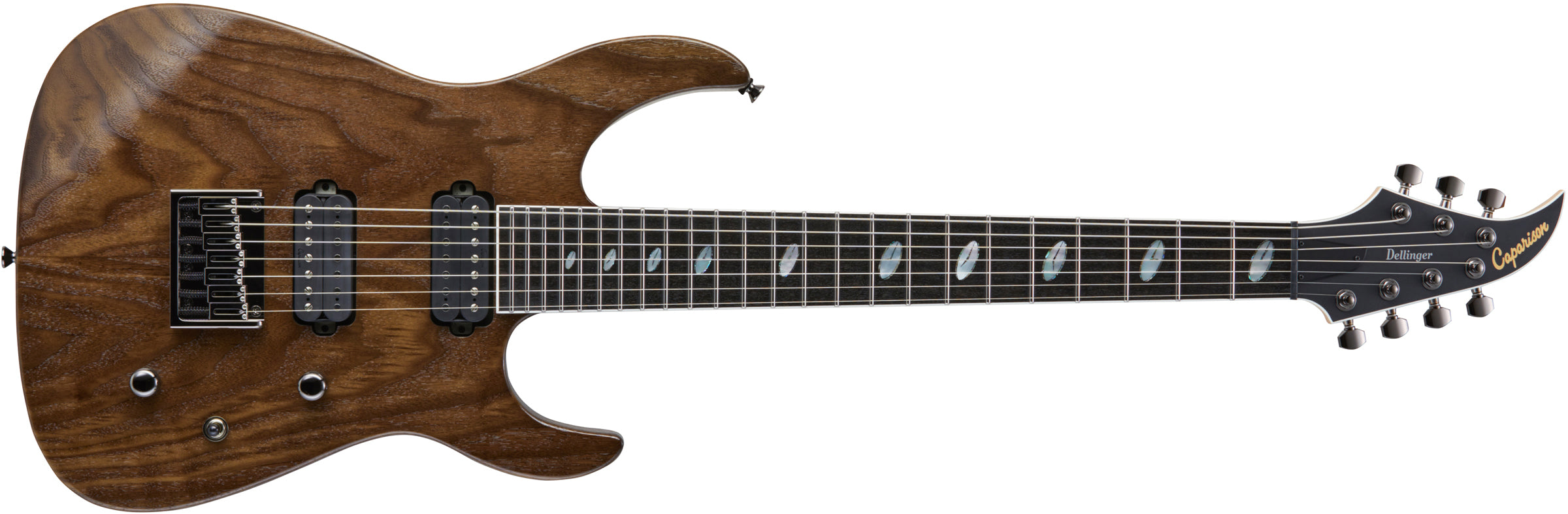

The 5 piece Maple-Walnut neck is smooth, fast, comfortable, plays like a dream and comes with a choice of Maple or Ebony fingerboards. The Dellinger7-WB-FX is available in Natural, Trans Charcoal Black or Trans White colours, each designed to show of the beautiful contours and grain texture of each instrument that emphasises the beautiful simplicity of this effortlessly complex instrument.

Body & Finish

Model: Dellinger7-WB-FX
Body Shape: Dellinger
Body Top: Black Walnut
Body: Australian Blackwood
Bridge: Caparison Fixed Bridge7

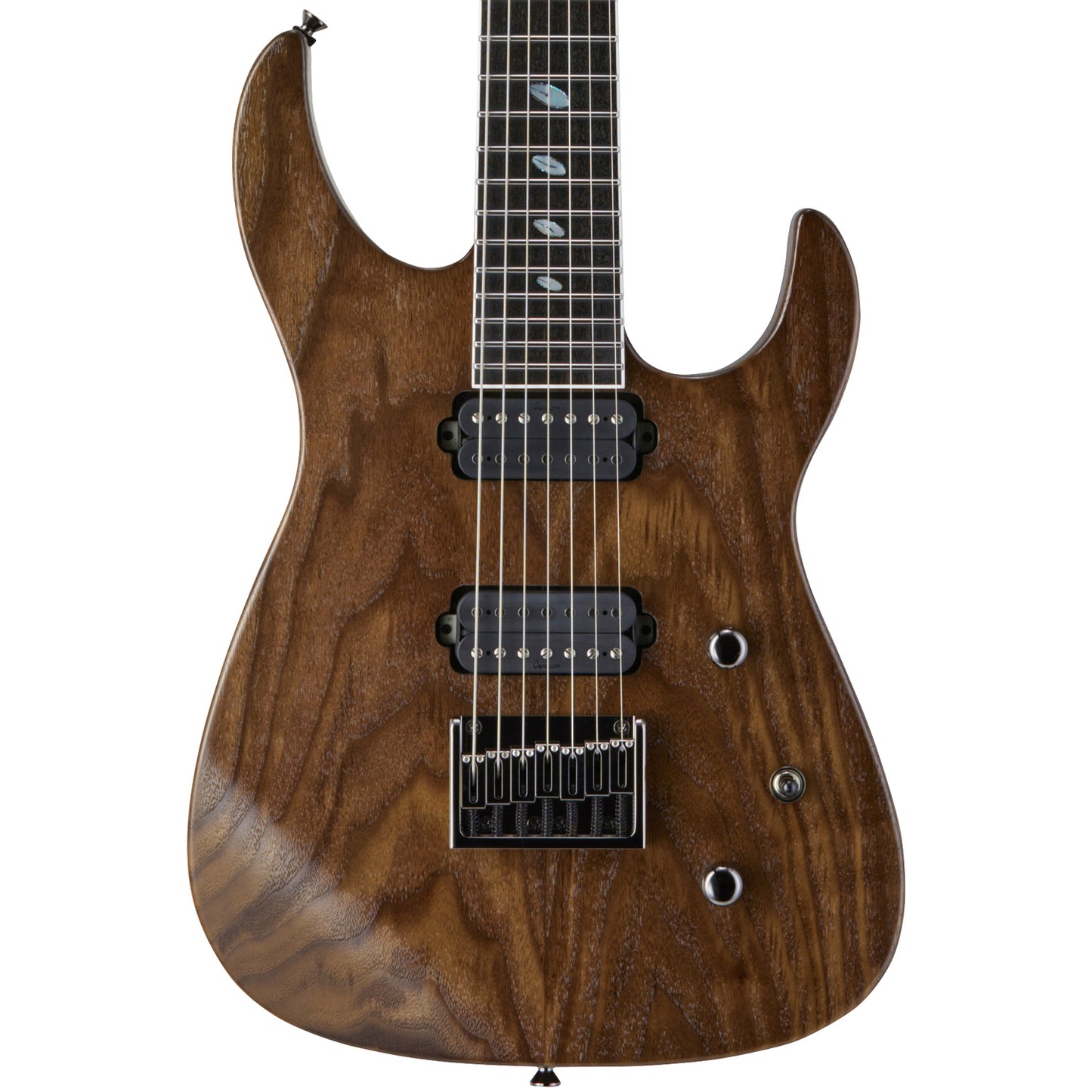

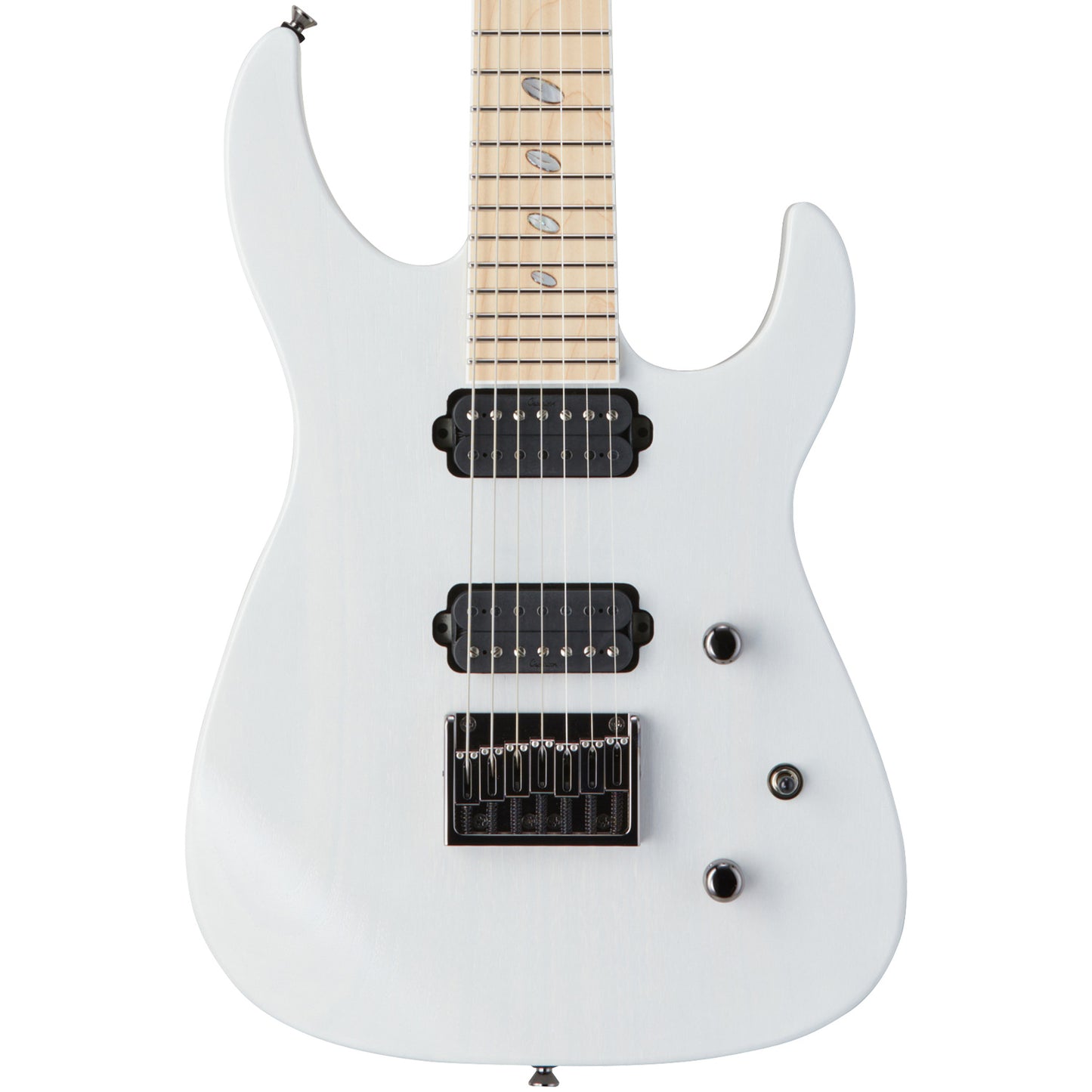

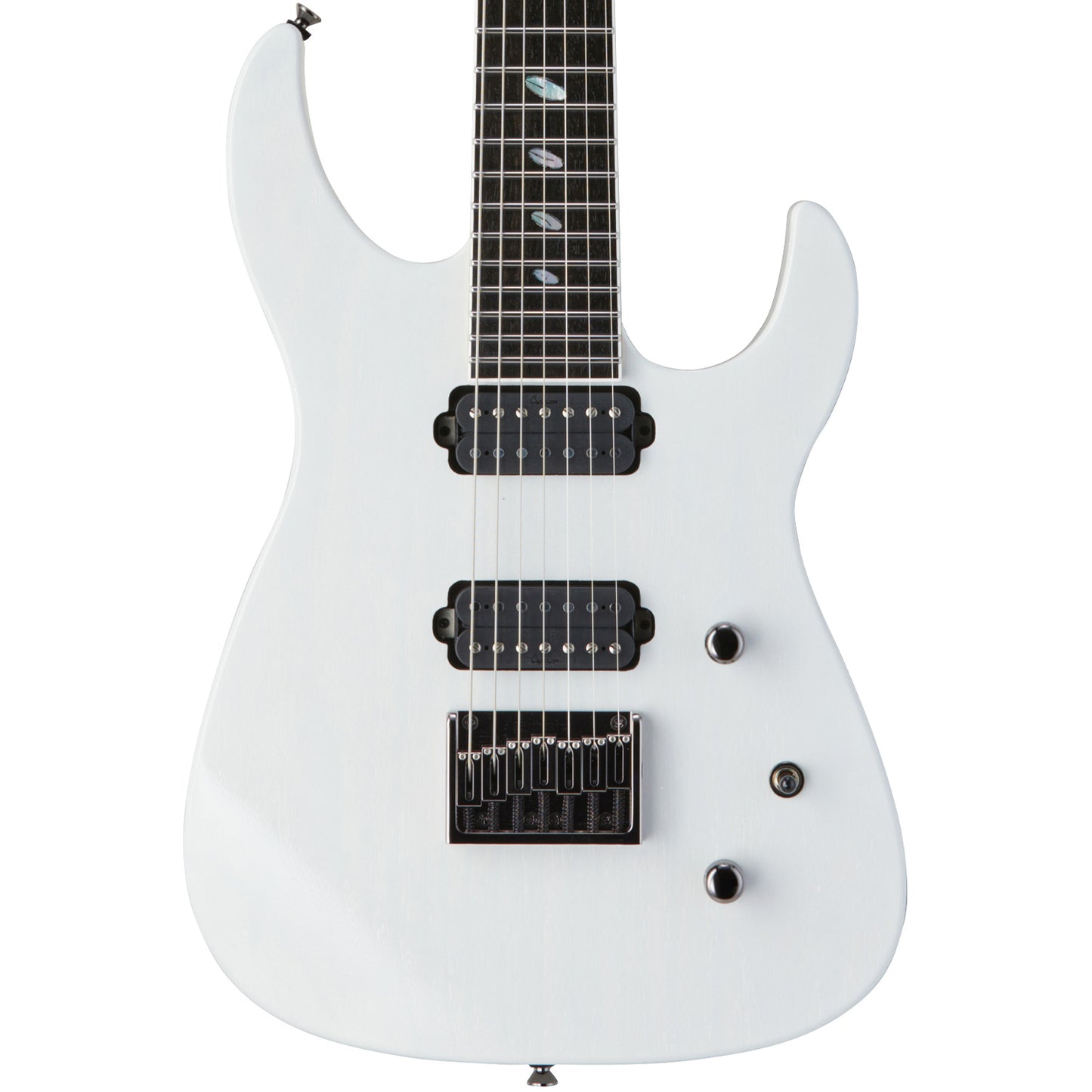

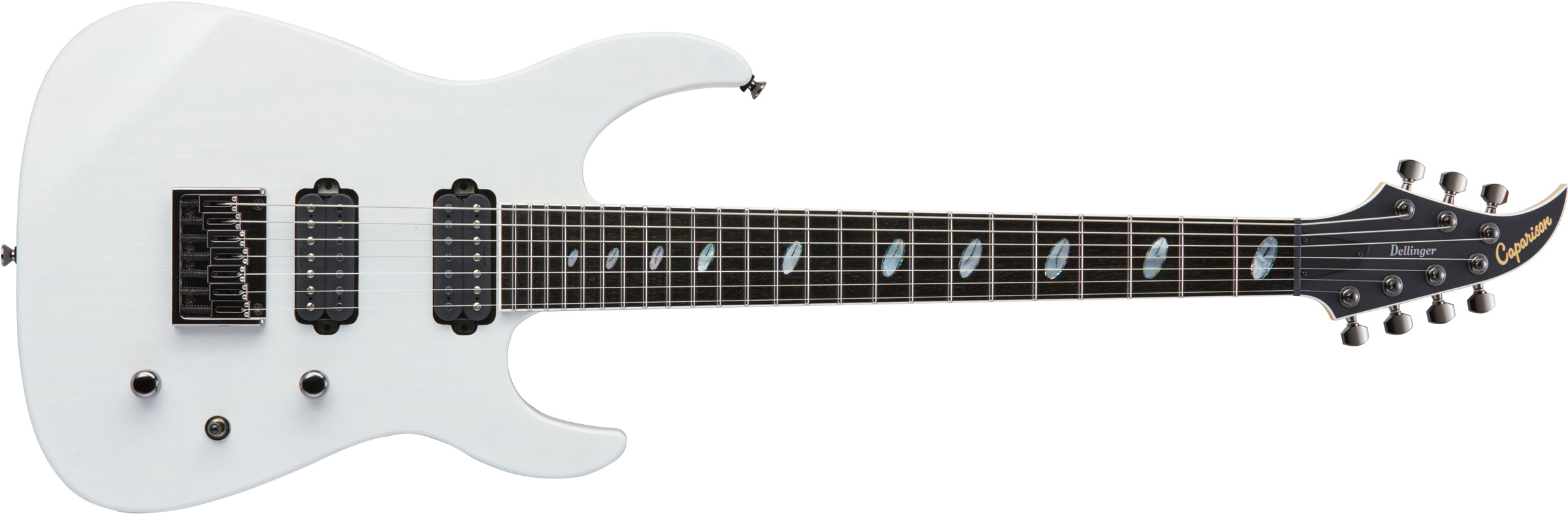

Finish: Natural, Transparent Charcoal Black, Transparent White
Neck Finish: Urethane Matte
Headstock Finish: Pro. Black
Hardware Finish: Cosmo Black

Neck & Head

Neck Joint: Bolt-on
Neck Material: Maple & Walnut 5-Piece
Neck Profile: Caparison
Fretboard: Maple or Ebony
Binding: White, Black Side Dots
Fretboard Radius: 350mmR to 400mmR
Scale Length: 648mm (25 1/2″)
Nut: 49mm Graph Tech Black TUSQ
Frets: 24, Jumbo Stainless Steel
Position Inlay: Clock Inlays

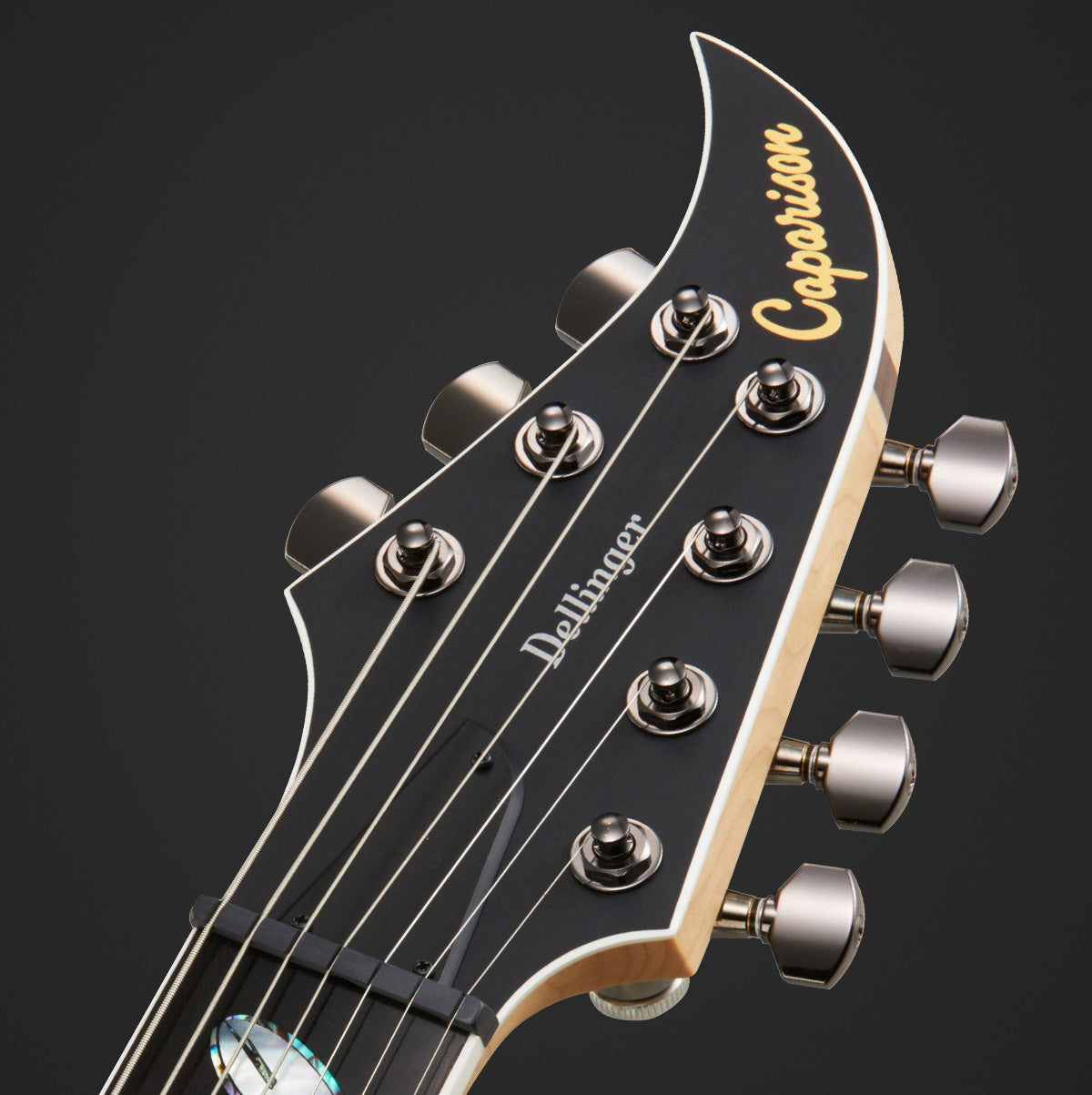

Headstock: Devil’s Tail, Dellinger Logo
Headstock Angle: 15 Degrees
Tuners: Gotoh SG381-07 MG-T

Electronics & Extras

Neck PU: Caparison PH7-n
Middle PU: None
Bridge PU: Caparison PH7-b
Controls: CTS Volume, 3 Way Toggle, Tone w/ Push-Pull
Strings: RotoSound (.009-.042+052)
Tuning: Regular (BEADGBE)
Case: Reunion Blues Voyager
Extras: Certificate of Authenticity signed by Caparison Lead Designer, Tools, Fretguard with Moisture Control

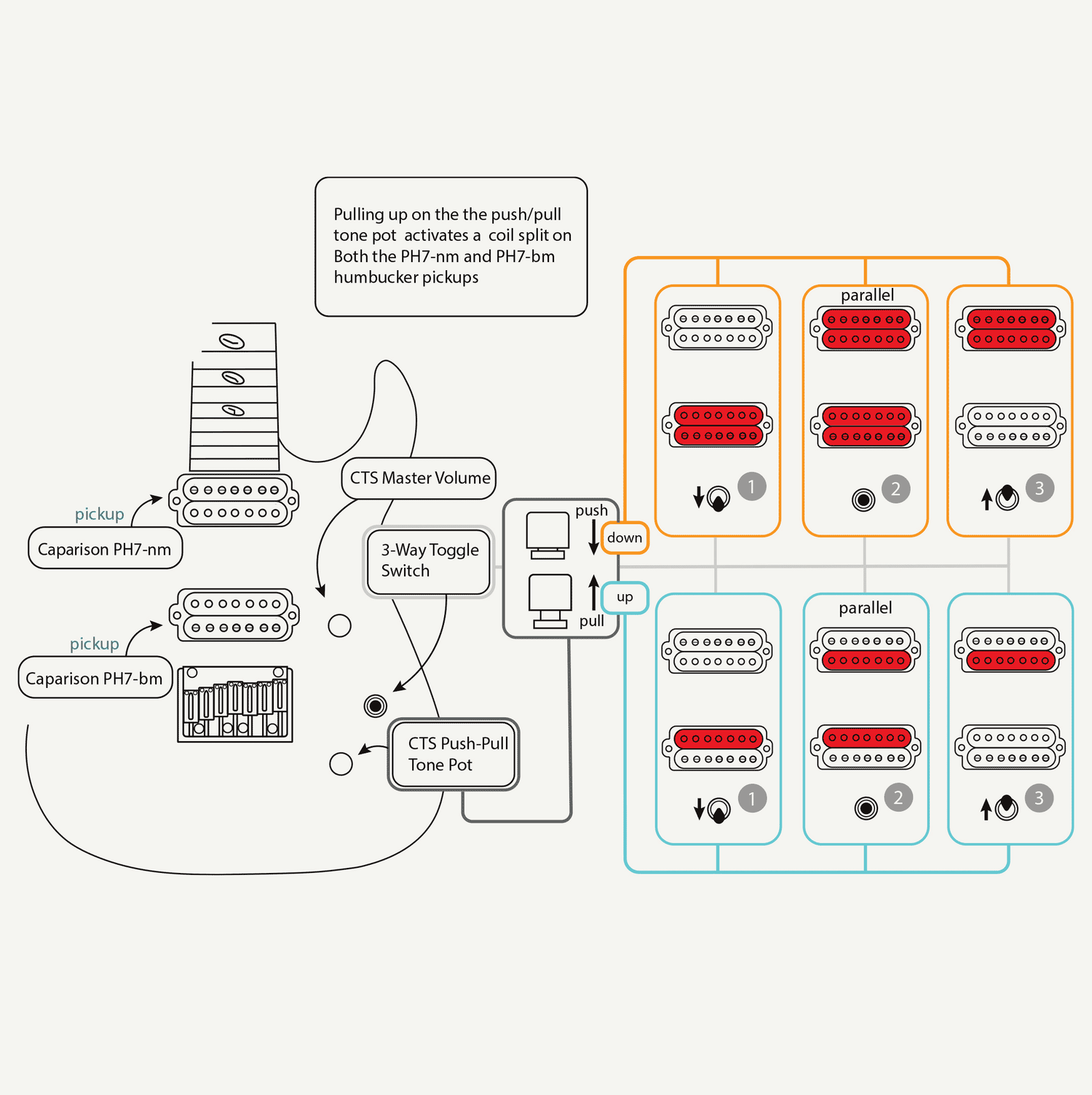

Custom Switching

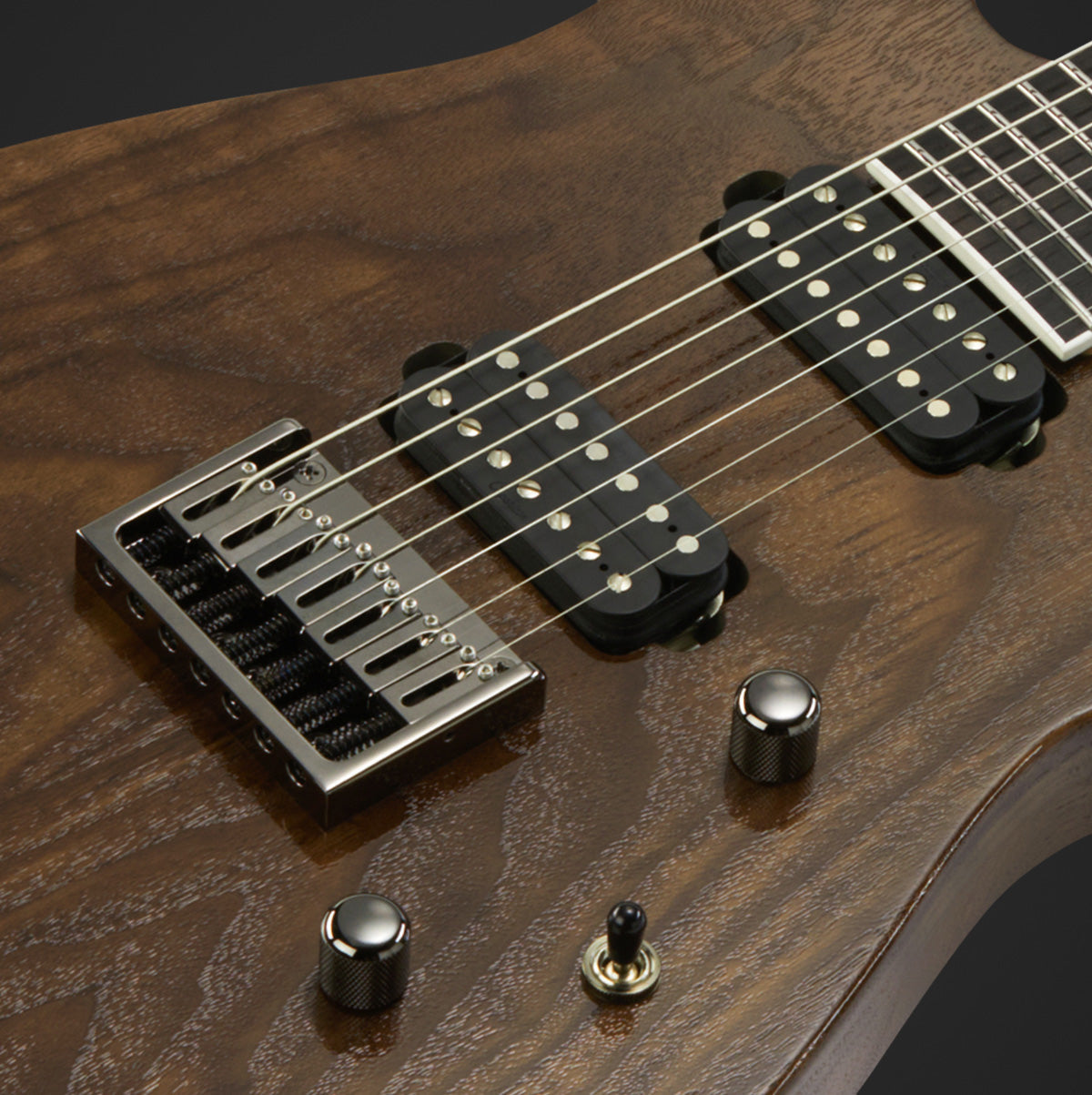

The Dellinger7-WB-FX is equipped with a push-pull switch integrated into the tone control, giving you exceptional tonal flexibility even with its dual-humbucker configuration. Pulling up the tone knob coil-splits both the neck and bridge pickups, opening up a broad spectrum of sounds that range from powerful humbucker drive to crisp single-coil clarity.

Flawless Connection

Refined through years of prototyping, the Dellinger model features a meticulously crafted neck joint that maximizes contact for superior sustain, tuning stability, and performance. By ensuring a flawless, residue-free connection between neck and body, we eliminate neck shift and enhance tonal integrity.

Special Features

1 4

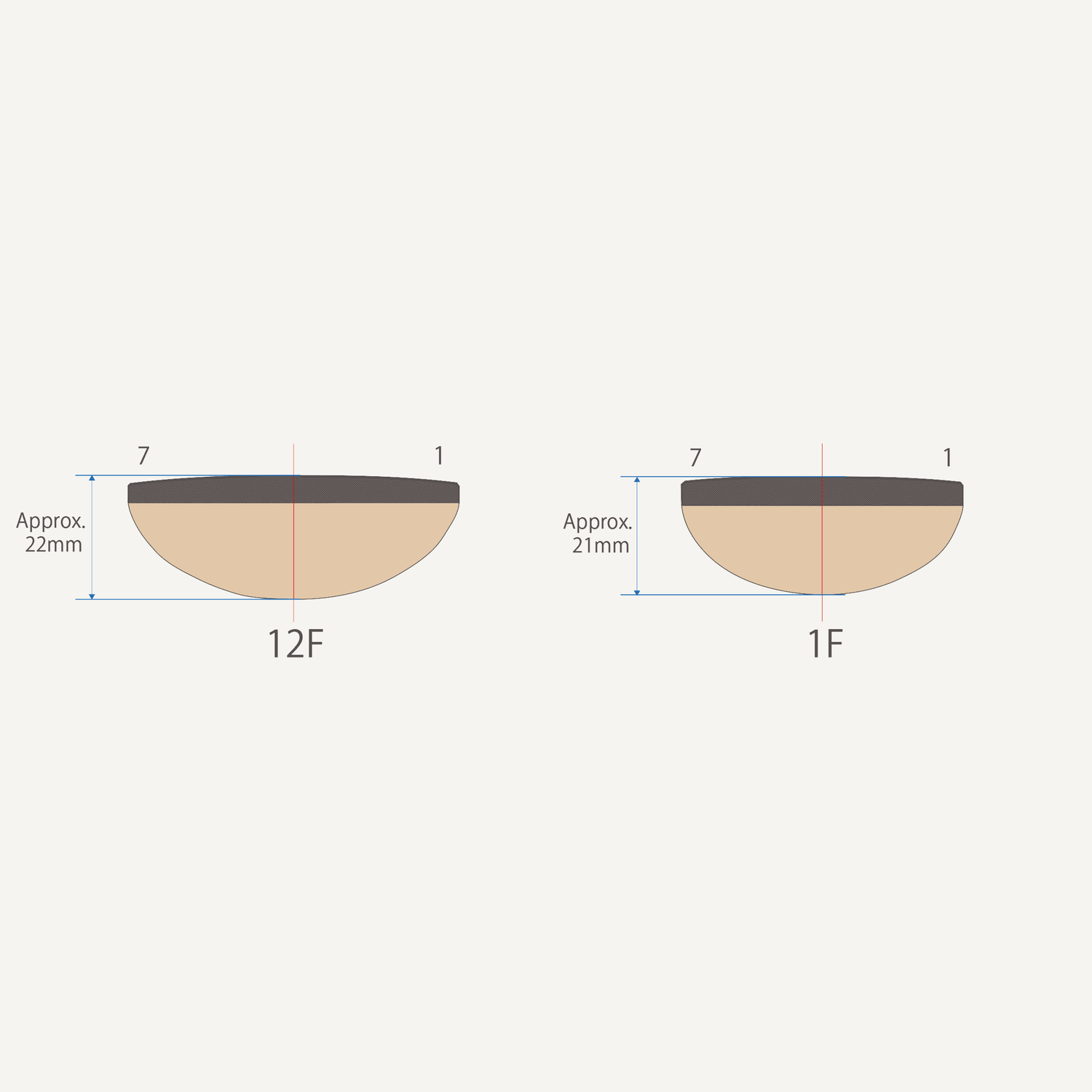

Caparison 7-String Neck Profile

Designed specifically for the dynamics of 7-string performance, this neck grip provides seamless left-hand movement and precise control across all seven strings. The profile is slightly thicker than our 6-string models, offering a balanced feel that supports natural thumb transitions and stable fretting. With its refined contour and optimal neck depth, it delivers both effortless playability and enduring neck strength—perfect for fast, expressive, and fatigue-free performance.

Hand Crafted in Japan Since 1995

Since its founding in Japan in 1995, Caparison Guitars has been dedicated to building instruments of uncompromising quality. Each guitar is hand-crafted by skilled Japanese luthiers, combining innovative design with meticulous attention to detail. This tradition of excellence has earned Caparison a worldwide reputation for precision, playability, and a uniquely powerful tone.
