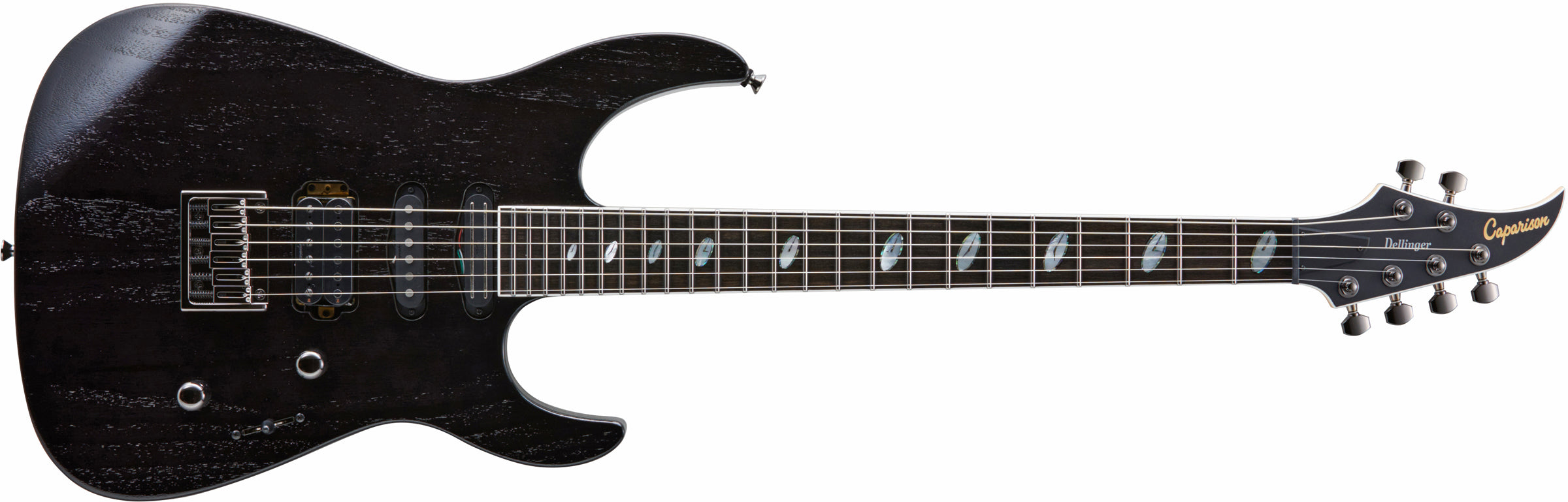

Dellinger-WB-FX EF/MF
The latest evolution of the popular Dellinger series is based around a new and inspired confluence of tone woods. The newly constructed bipartite body composition now features a select Walnut top section with an Australian Blackwood foundation. This distinctive combination provides an engaging, sustain rich tone with exceptional clarity in the mid to high frequency range. It implements a well defined, clear and articulate note separation.
The inclusion of Jescar stainless steel jumbo frets further enhances the discernible clarity. The new Dellinger-WB-FX also features the unique Caparison designed high mass ‘Fixed Bridge6’ which effortlessly deals with a variance of string gauges and extreme tunings while maintaining stability and sonic reinforcement. This stability is further enhanced by the use of Gotoh MG-T locking tuners and a Graph Tech Black TUSQ nut.
Caparison made high output SH-NC, VS-IAm and PH-Rm pickups add a unique and complimentary tonal colouration to the Dellinger-WB-FX, providing a whole gamut of timbres from an ultra aggressive growl to the sweetest bell-like harmonic cleans. A range that is further enhanced by a push-pull master tone pot, which simultaneously splits the coils in both the bridge and neck pickups, providing that classic single coil crisp glassy twang.

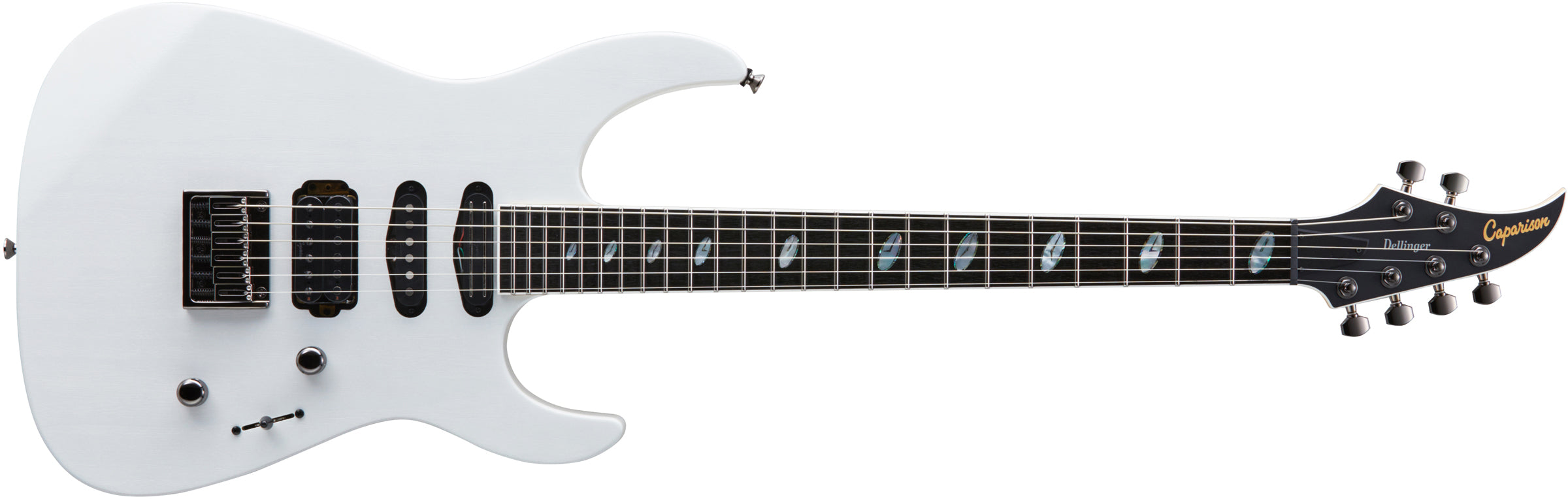

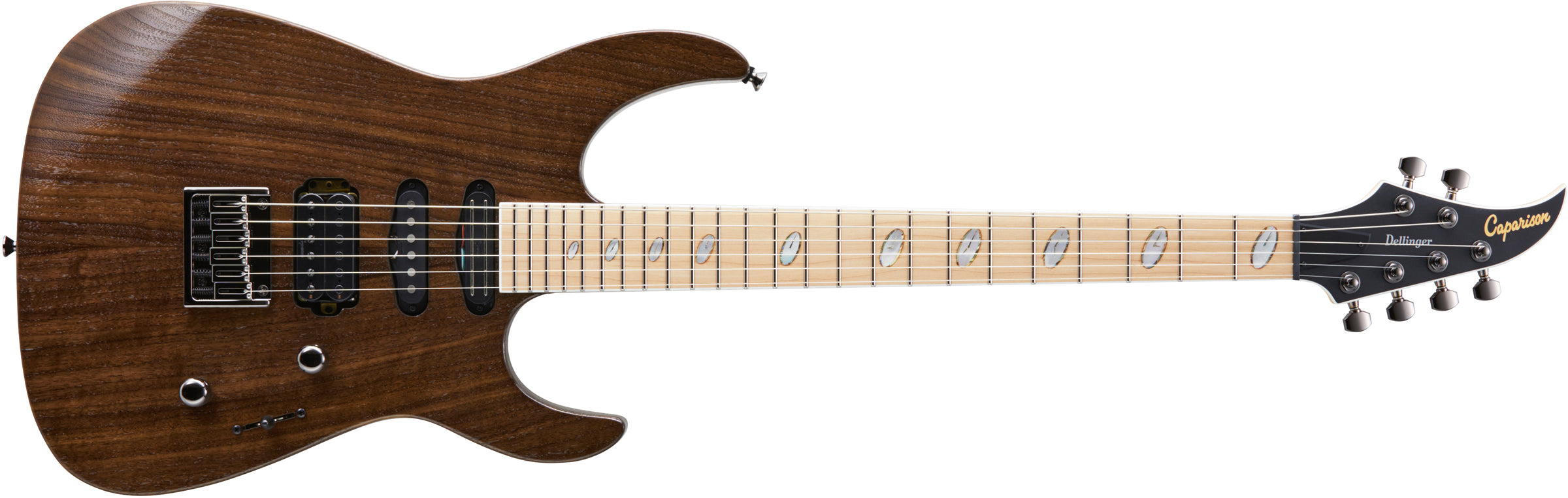

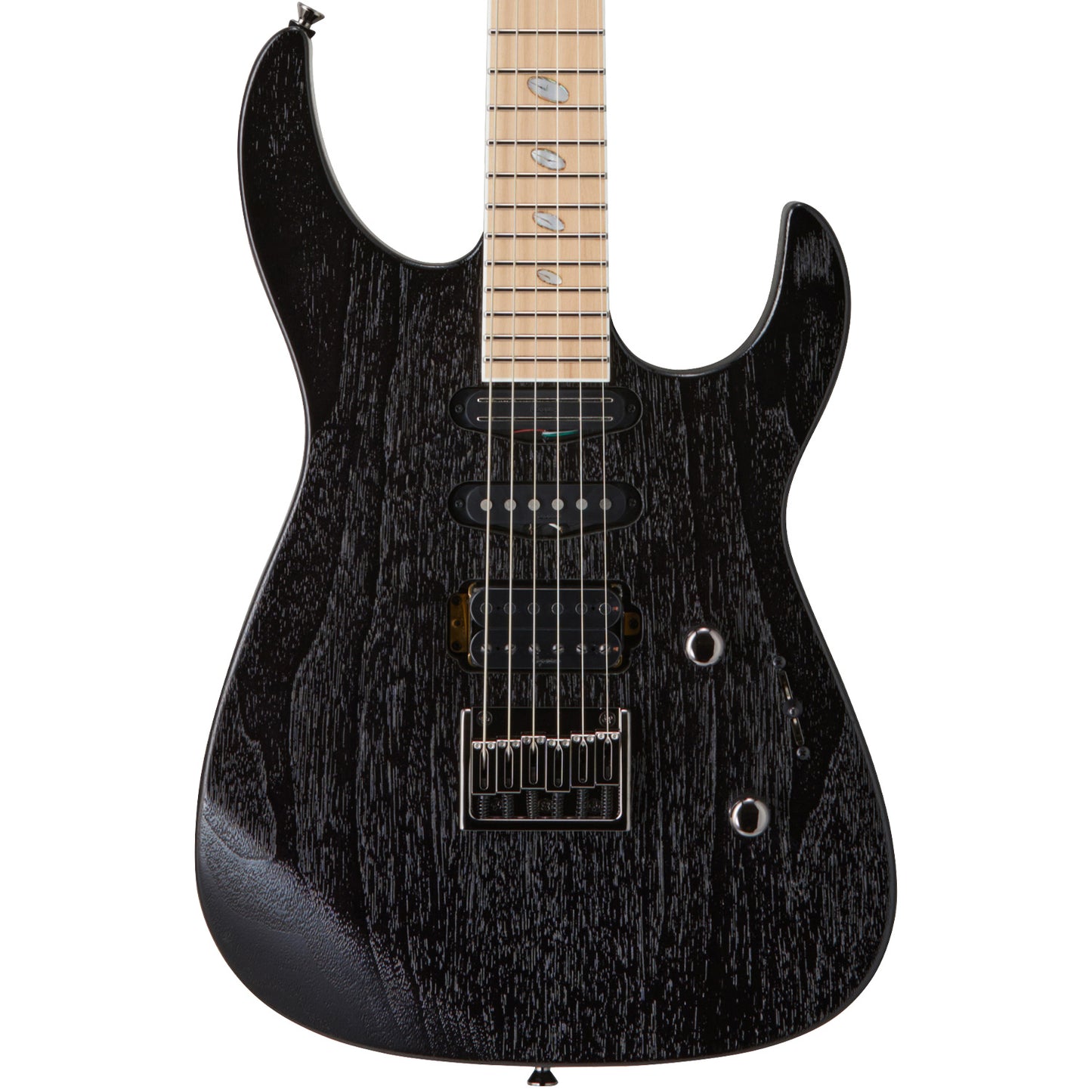

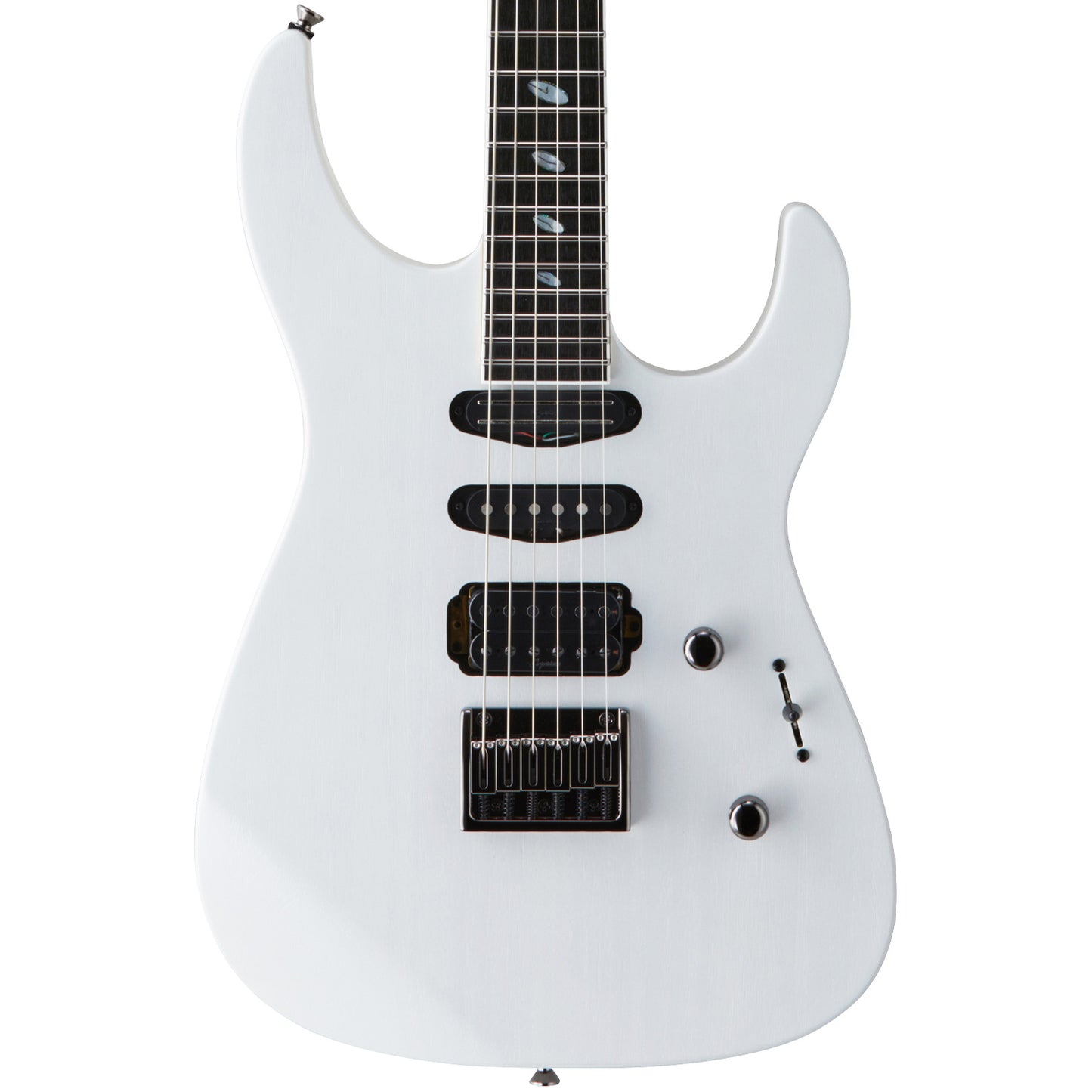

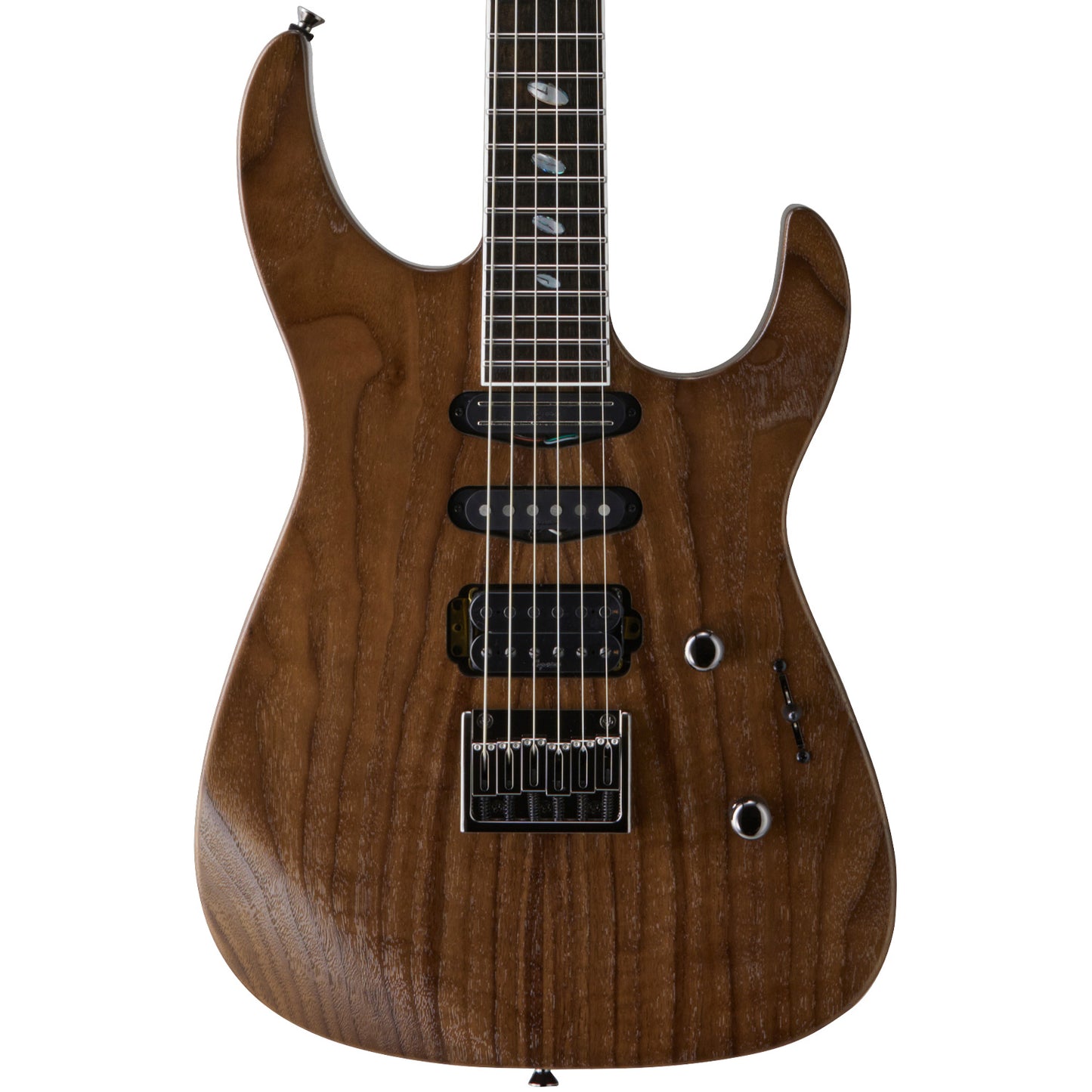

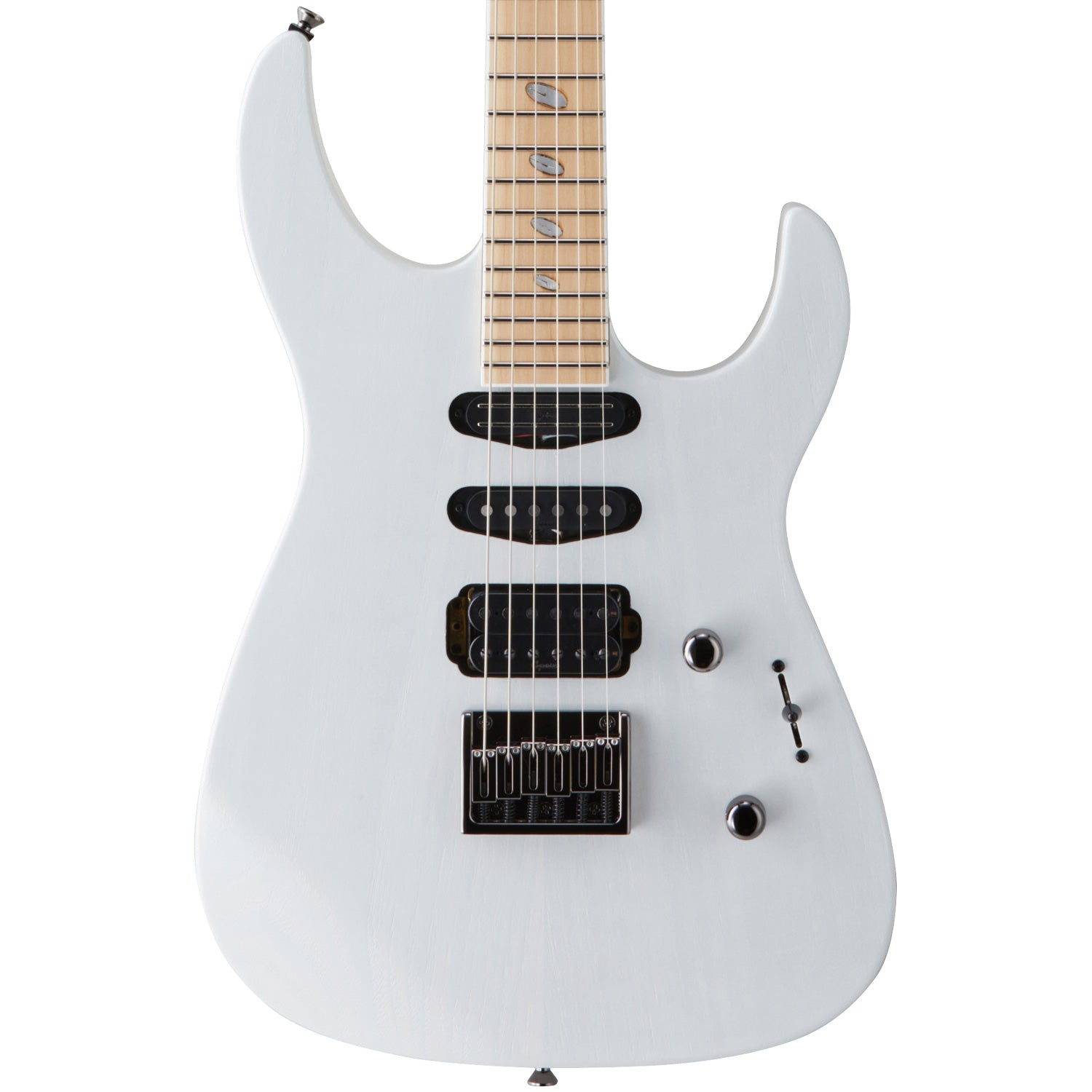

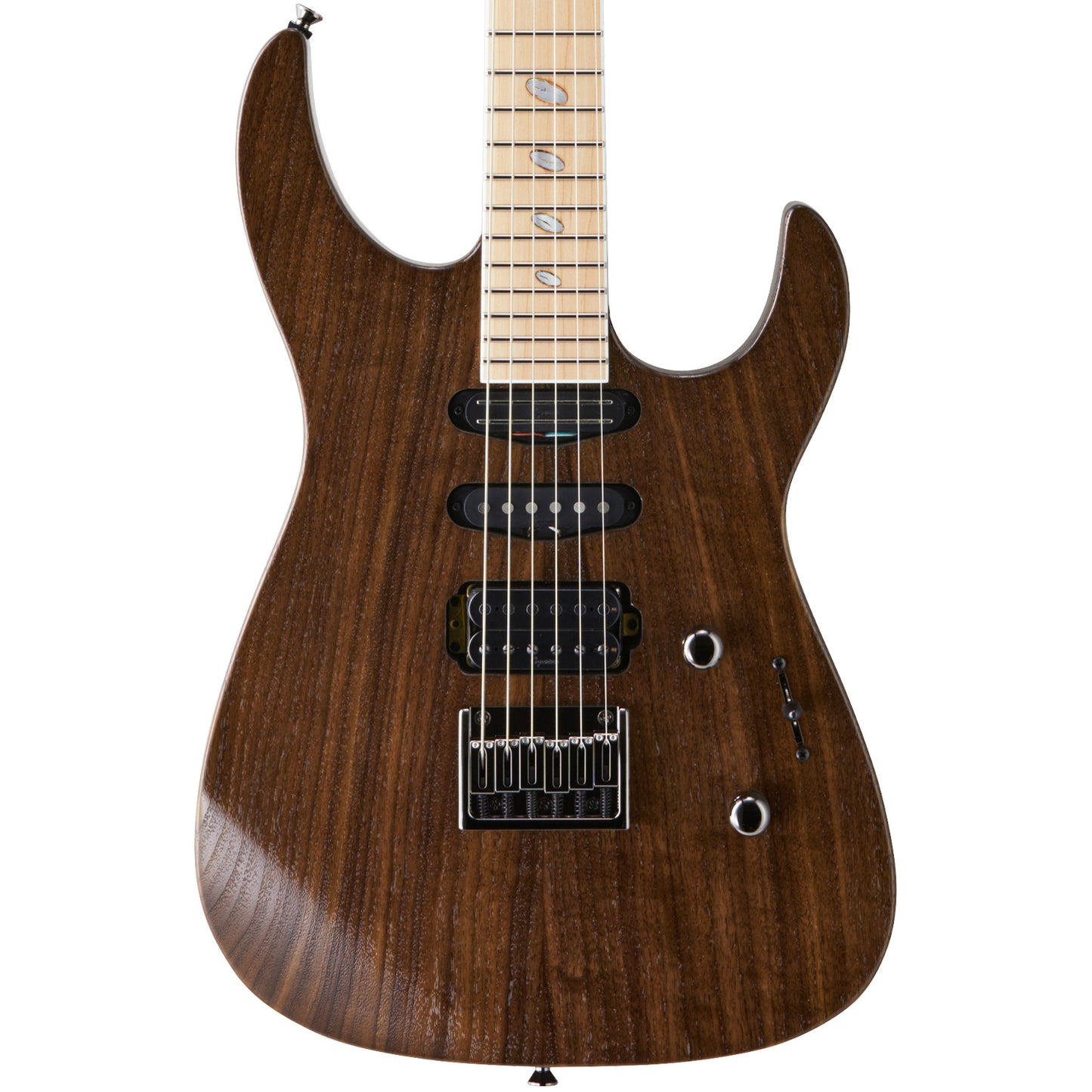

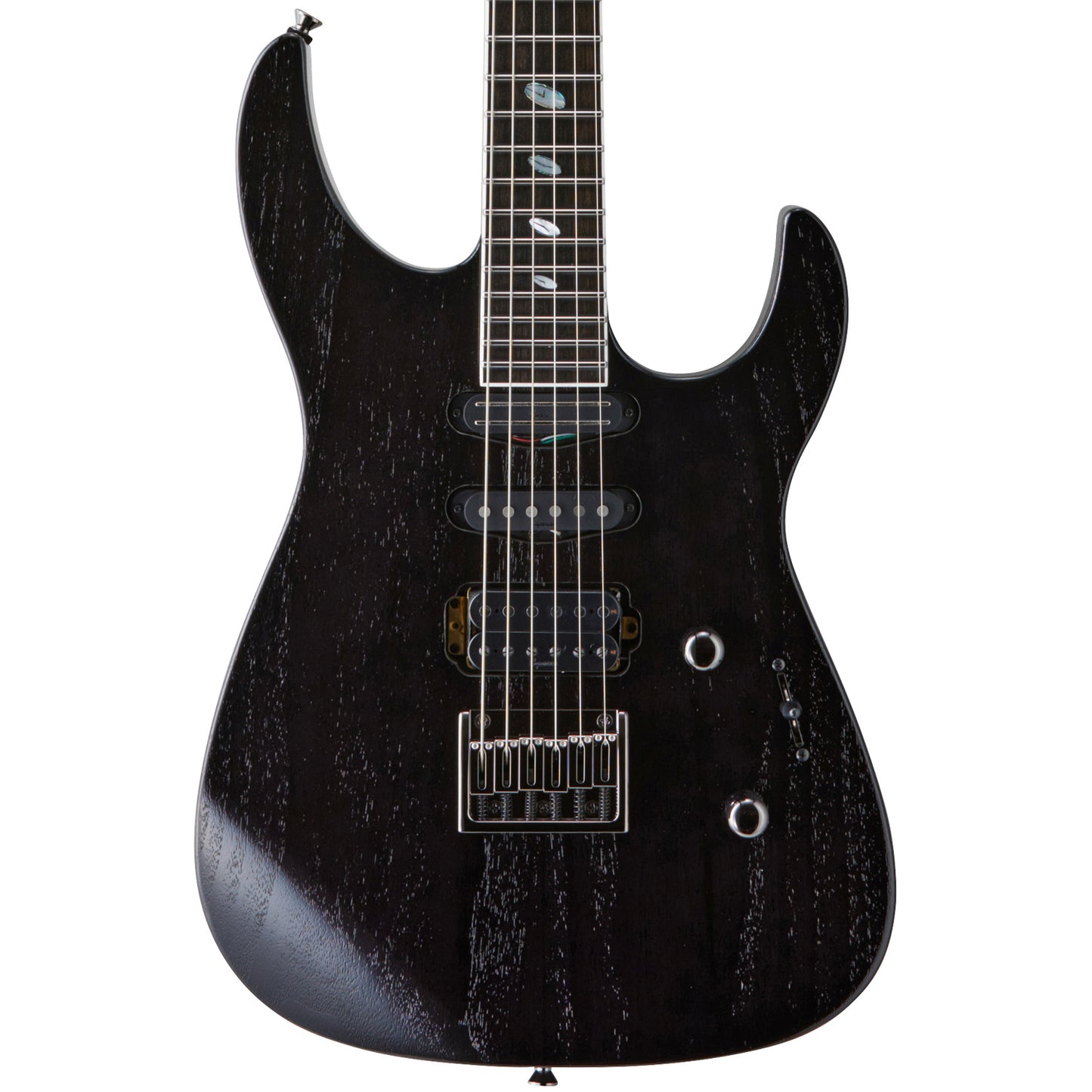

The 5 piece Maple-Walnut neck is smooth, fast, comfortable, plays like a dream and comes with a choice of Maple or Ebony fingerboards. The Dellinger-WB-FX is available in Natural, Trans Charcoal Black or Trans White colours, each designed to show of the beautiful contours and grain texture of each instrument that emphasises the beautiful simplicity of this effortlessly complex instrument.

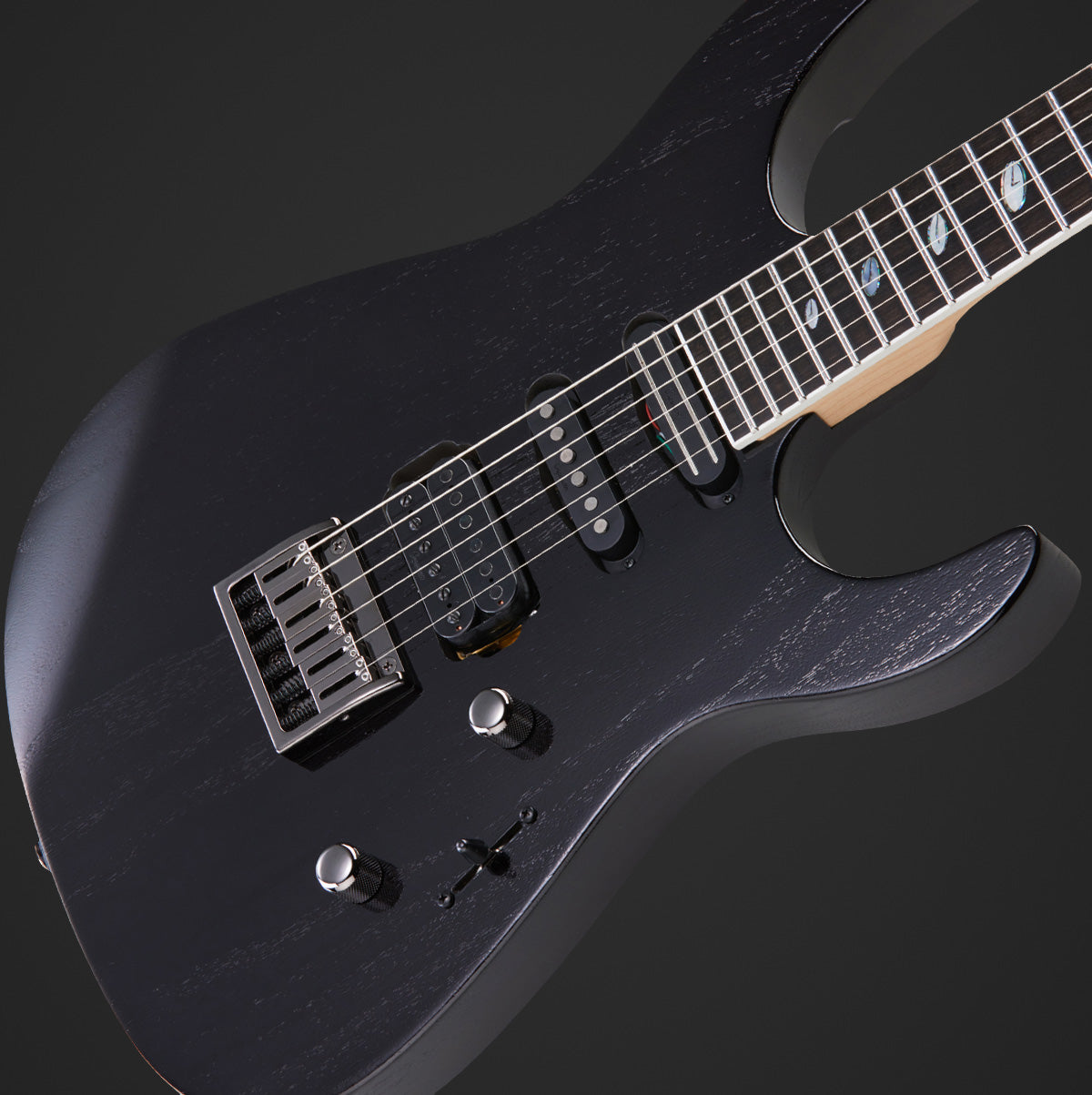

Body & Finish
Model: Dellinger-WB-FX
Body Shape: Dellinger
Body Top: Black Walnut
Body: Australian Blackwood

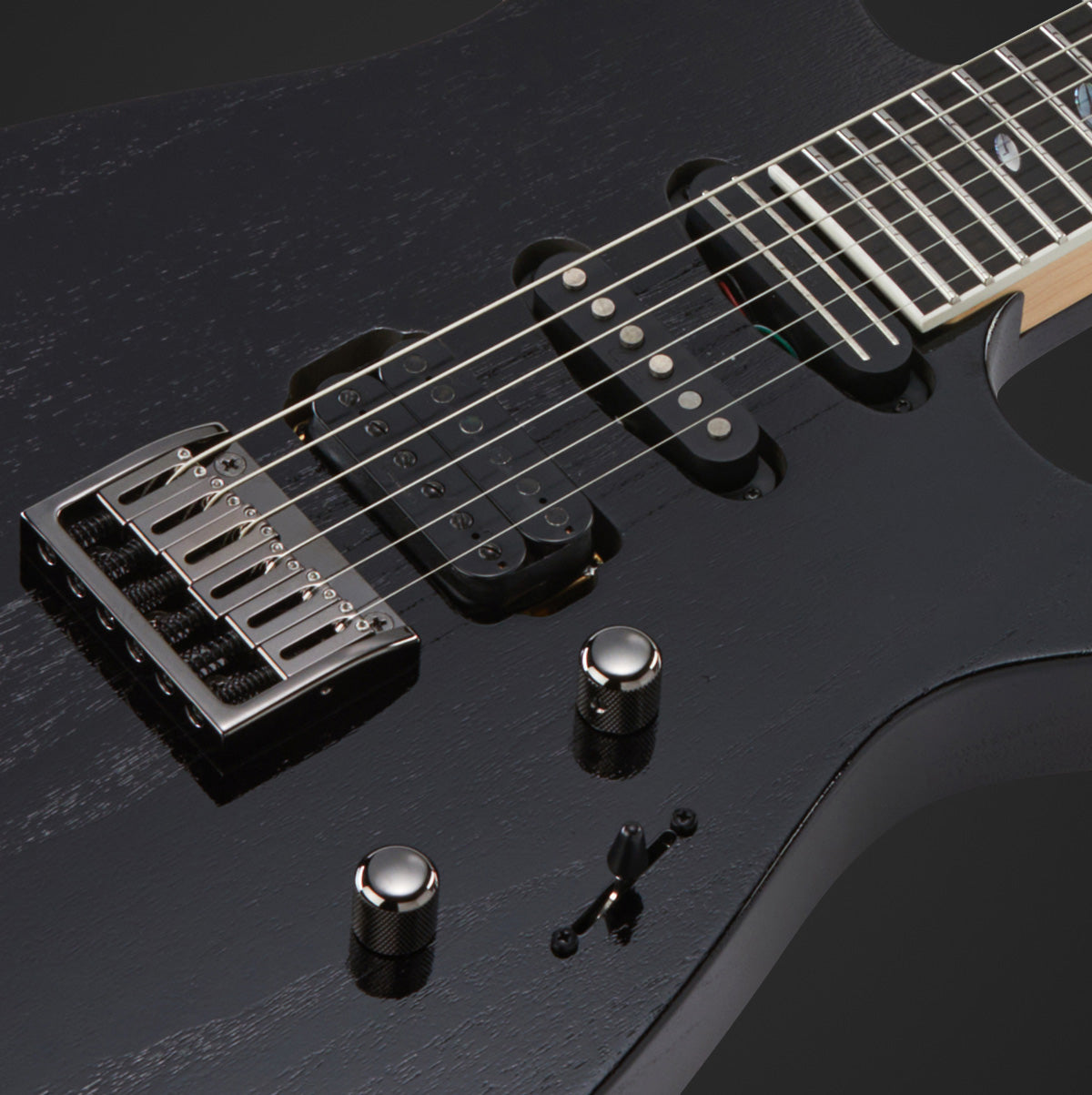

Bridge: Caparison Fixed Bridge6
Finish:
Neck Finish: Urethane Matte
Headstock Finish: Pro. Black
Hardware Finish: Cosmo Black

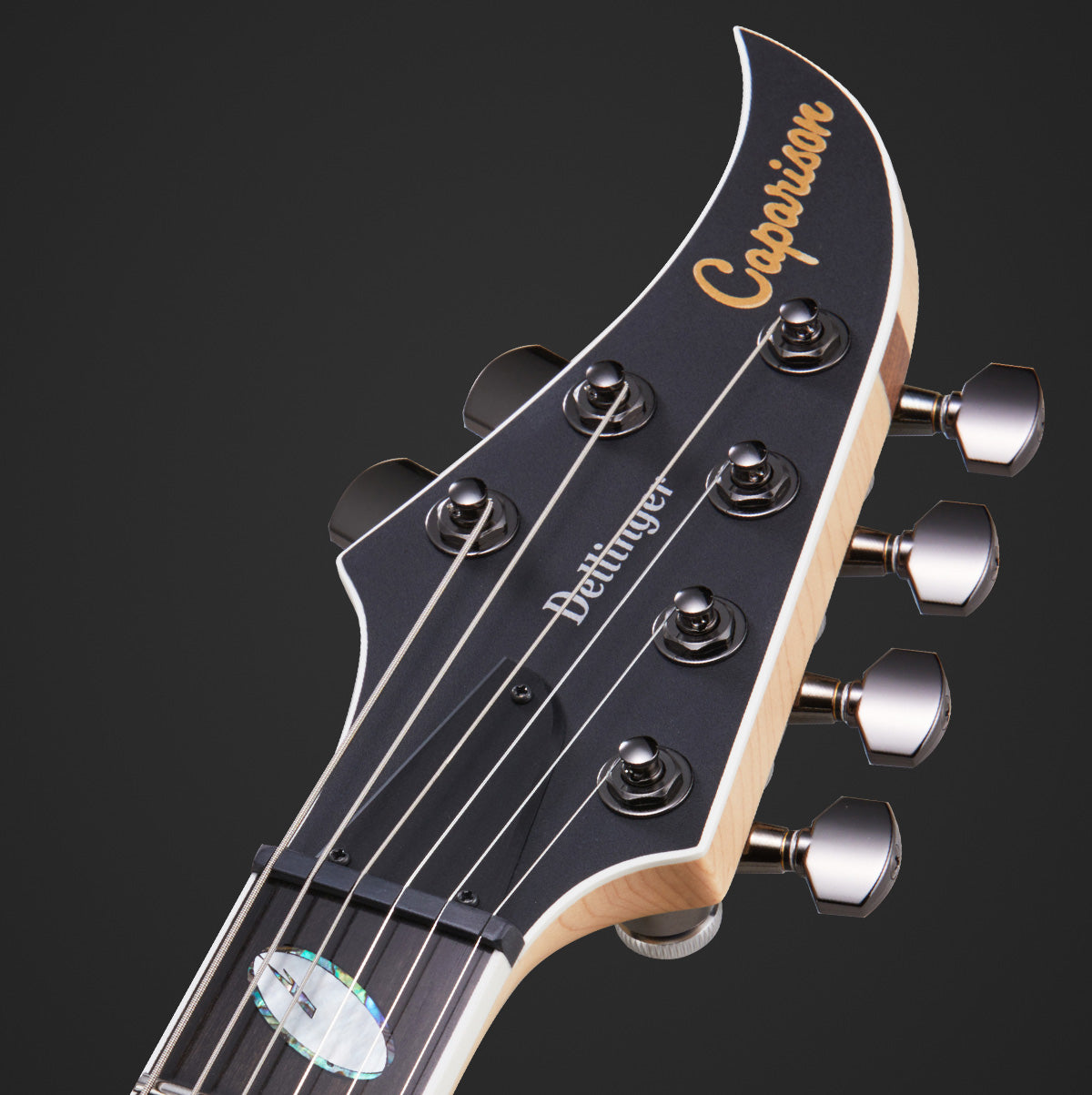

Neck & Head
Neck Joint: Bolt-on
Neck Material: Maple & Walnut 5-Piece
Neck Profile: Caparison
Fretboard: Ebony or Maple
Binding: White, Black Dots
Fretboard Radius: 350mmR to 400mmR
Scale Length: 648mm (25 1/2")
Nut: 42mm Graph Tech Black TUSQ
Frets: 24 Jumbo, Stainless Steel
Position Inlay: Clock Inlays
Headstock: Devil’s Tail, Dellinger Logo
Headstock Angle: 15 Degrees
Tuners: Gotoh SG381-07 MG-T

Electronics & Extras
Neck PU: Caparison SH-NC
Middle PU: Caparison VS-IA
Bridge PU: Caparison PH-R
Controls: CTS Volume, 5-Way Lever, Tone Push-Pull
Strings: RotoSound R10 (.010-.046)
Tuning: D Standard (DAFCGD)
Case: Reunion Blues Voyager
Extras: Certificate of Authenticity signed by Caparison Lead Designer, Tools, Fretguard with Moisture Control

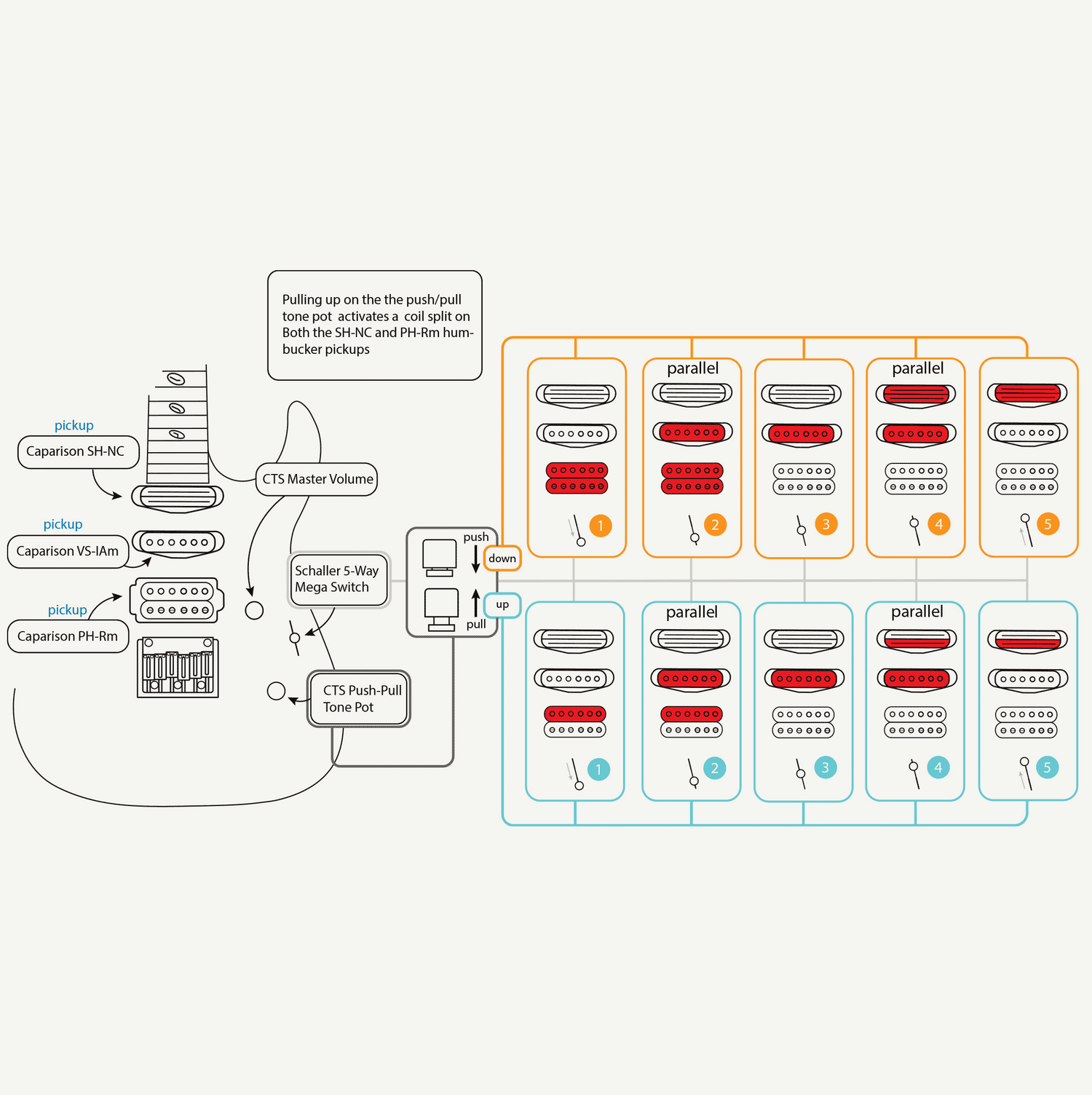

Custom Switching
Flawless Connection
Special Features

Caparison Neck Profile
Hand Crafted in Japan Since 1995
Since its founding in Japan in 1995, Caparison Guitars has been dedicated to building instruments of uncompromising quality. Each guitar is hand-crafted by skilled Japanese luthiers, combining innovative design with meticulous attention to detail. This tradition of excellence has earned Caparison a worldwide reputation for precision, playability, and a uniquely powerful tone.
