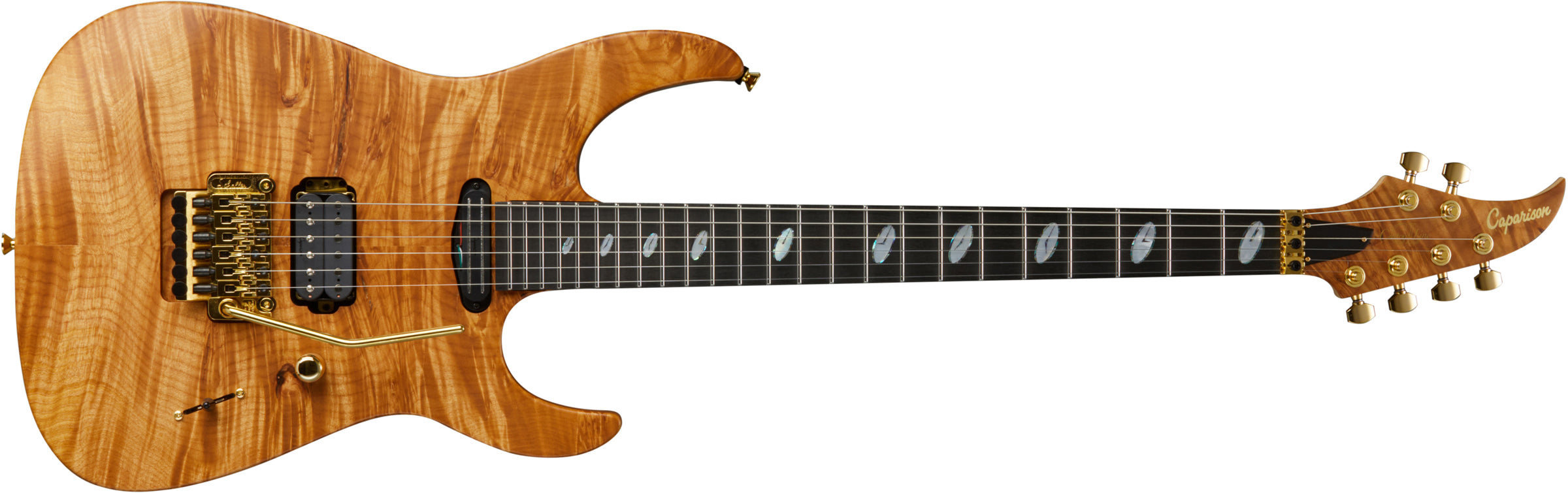

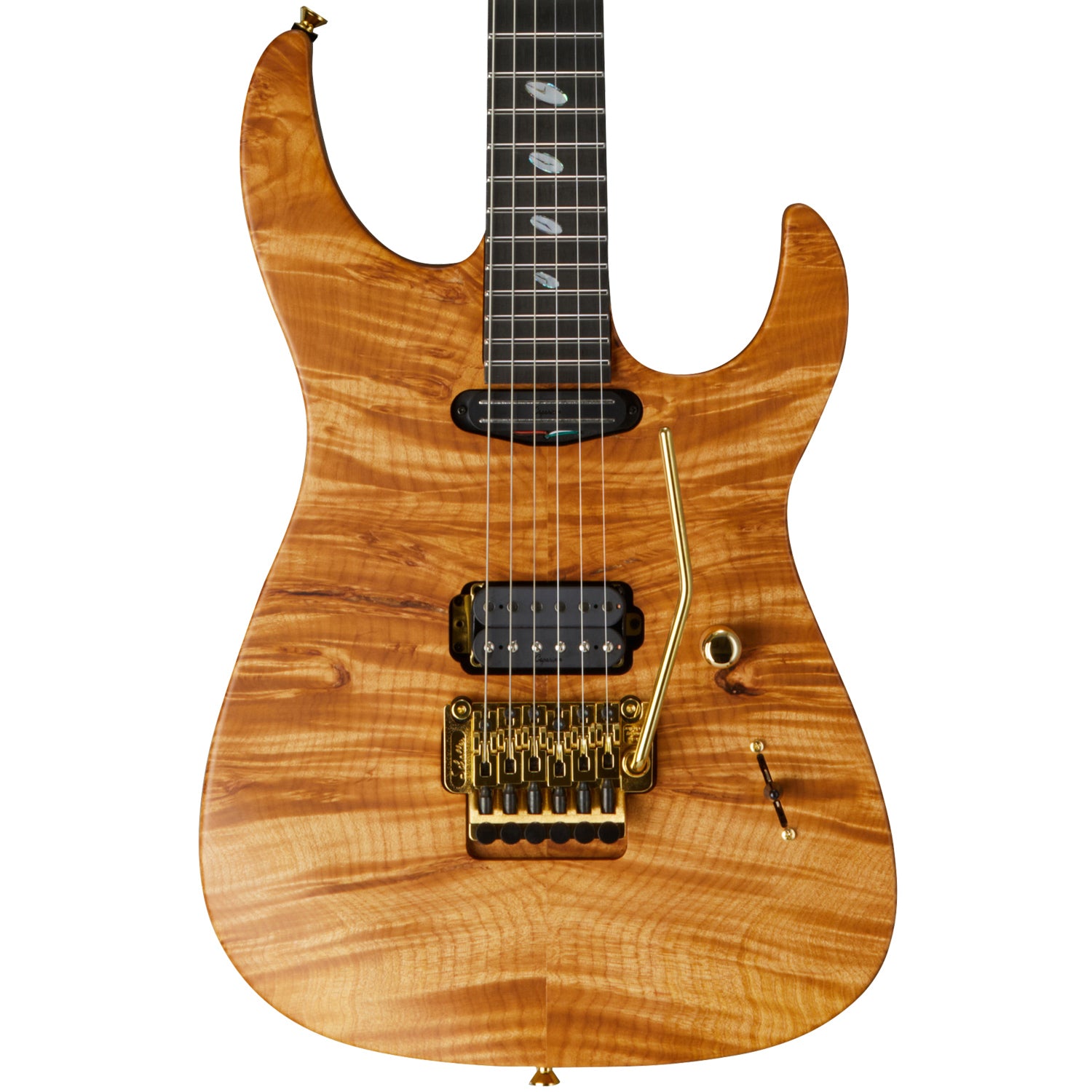

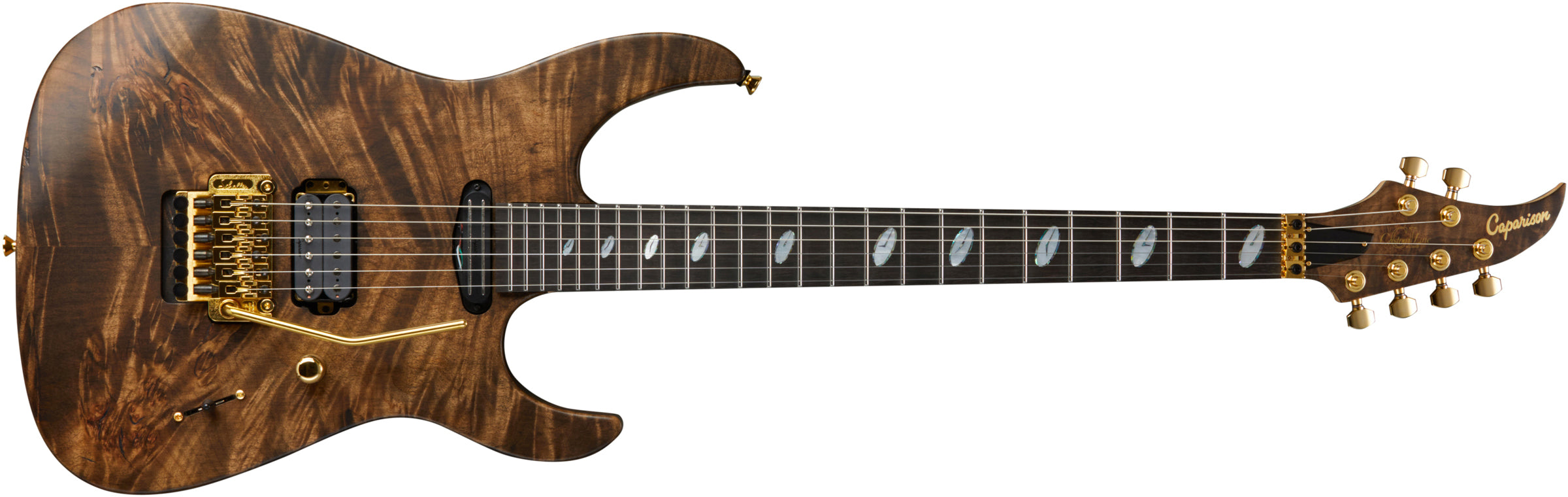

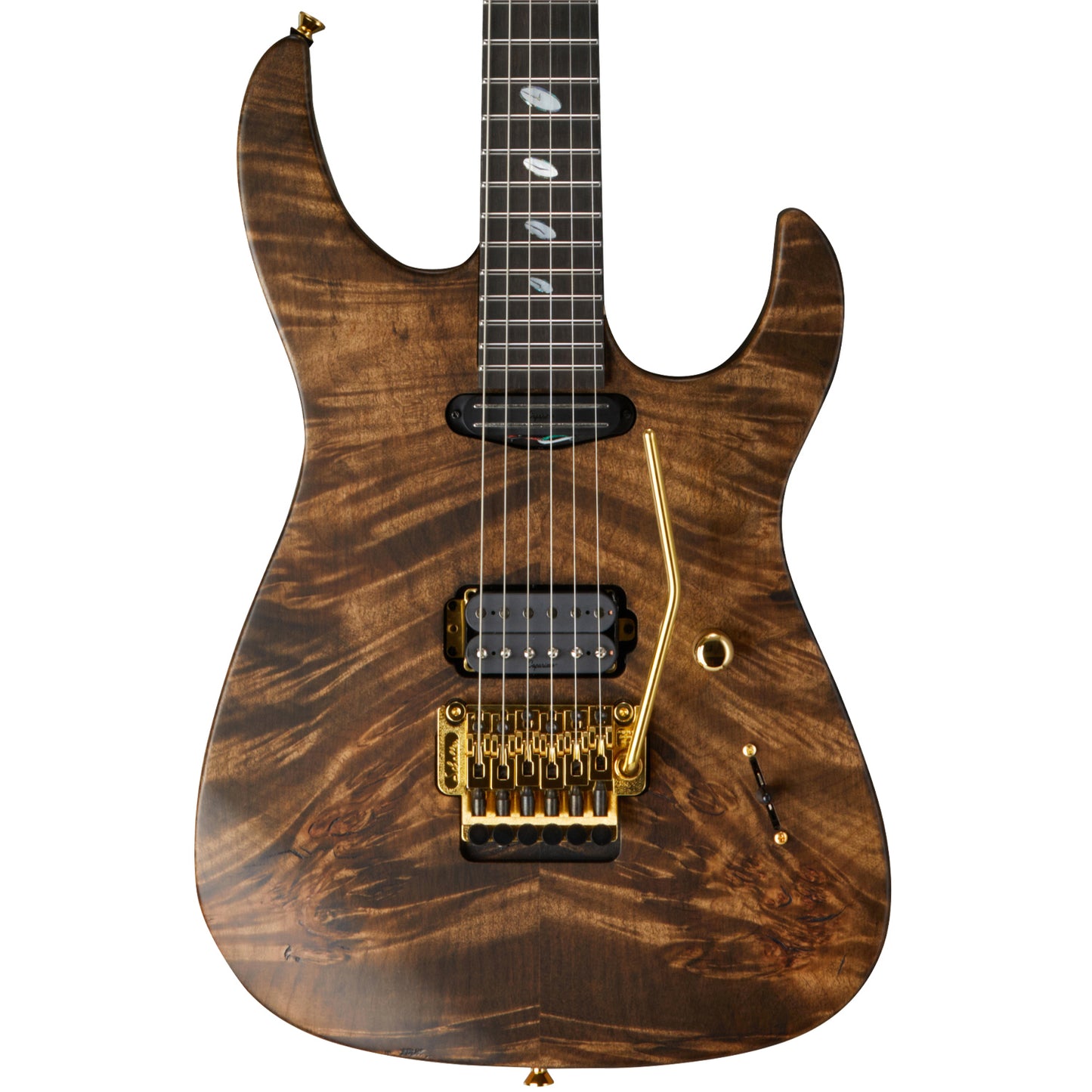

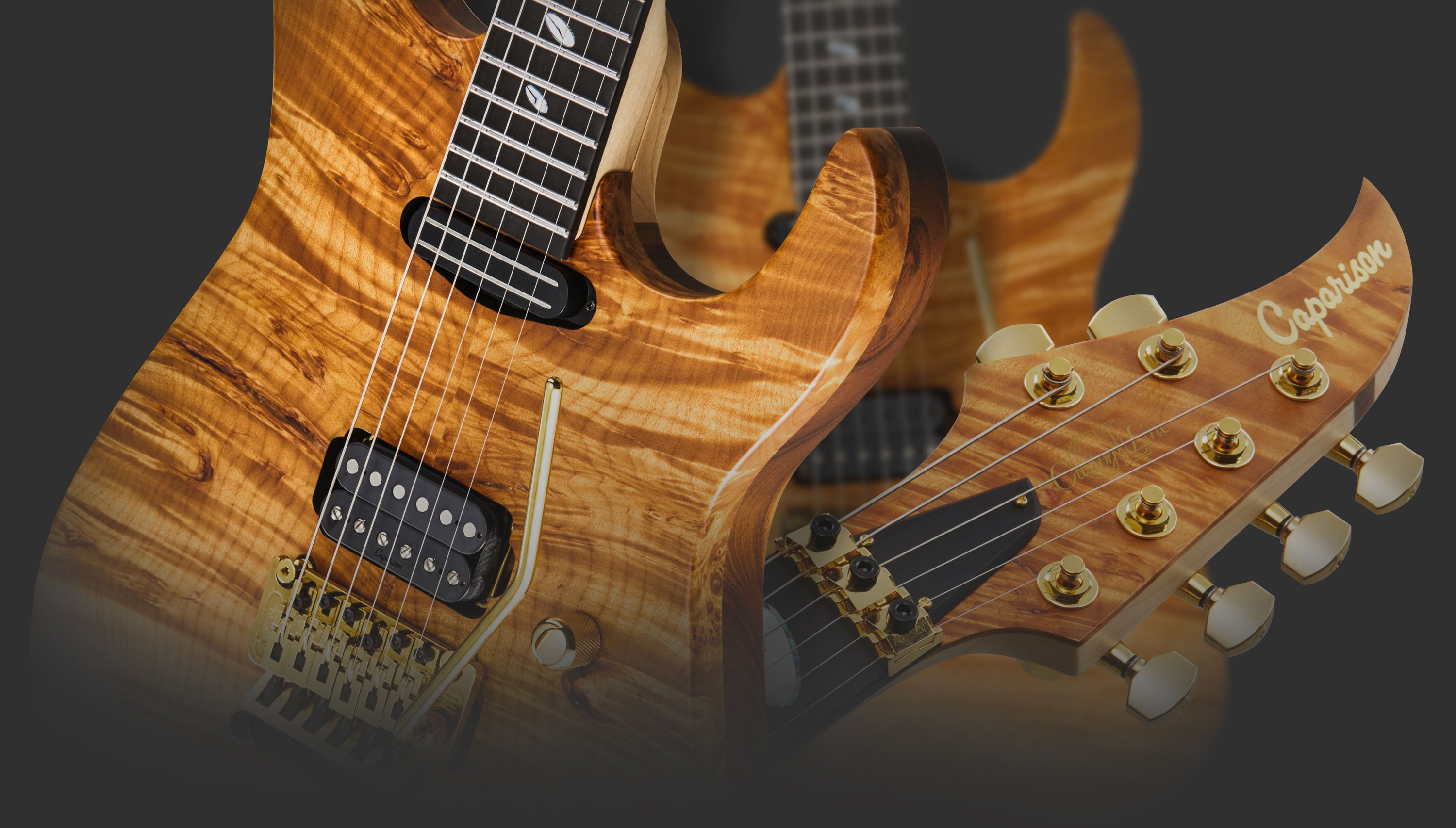

Dellinger-SH-BM-CL, Custom Line

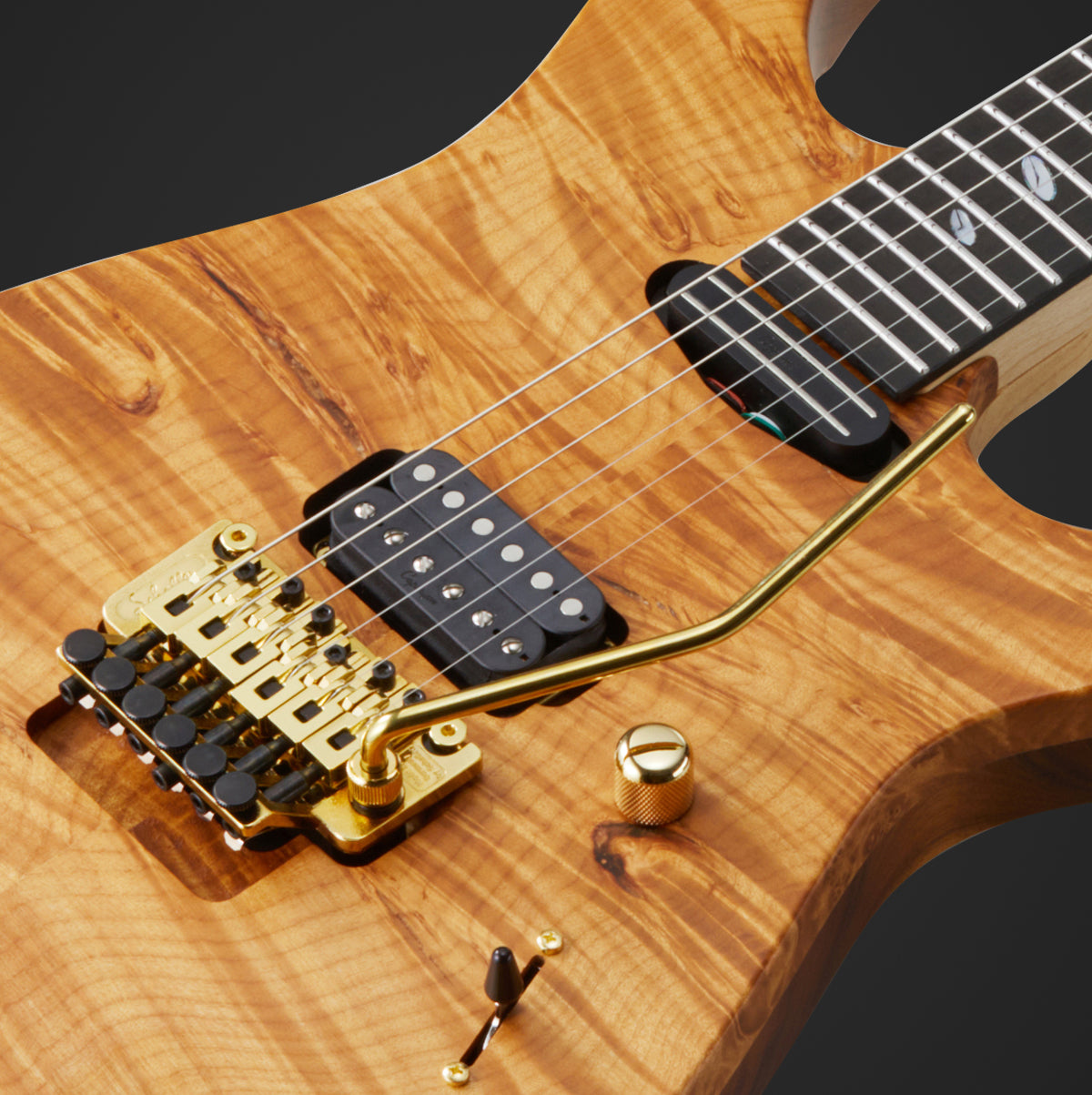

Schaller S-FRT II Tremolo Bridge - This high-performance tremolo bridge by Schaller features a unique construction where the bridge body and knife edges are separate components. The dual-sided knife edges are precisely machined to ensure excellent return-to-zero performance, which minimizes unnecessary movement during play and enhances tuning stability. Made from high-hardness steel, the knife edges are highly resistant to wear and offer long-lasting durability. Additionally, because the knife edges are not integrated with the main bridge body, this design reduces harsh metallic overtones and contributes to a smoother, more refined tone.

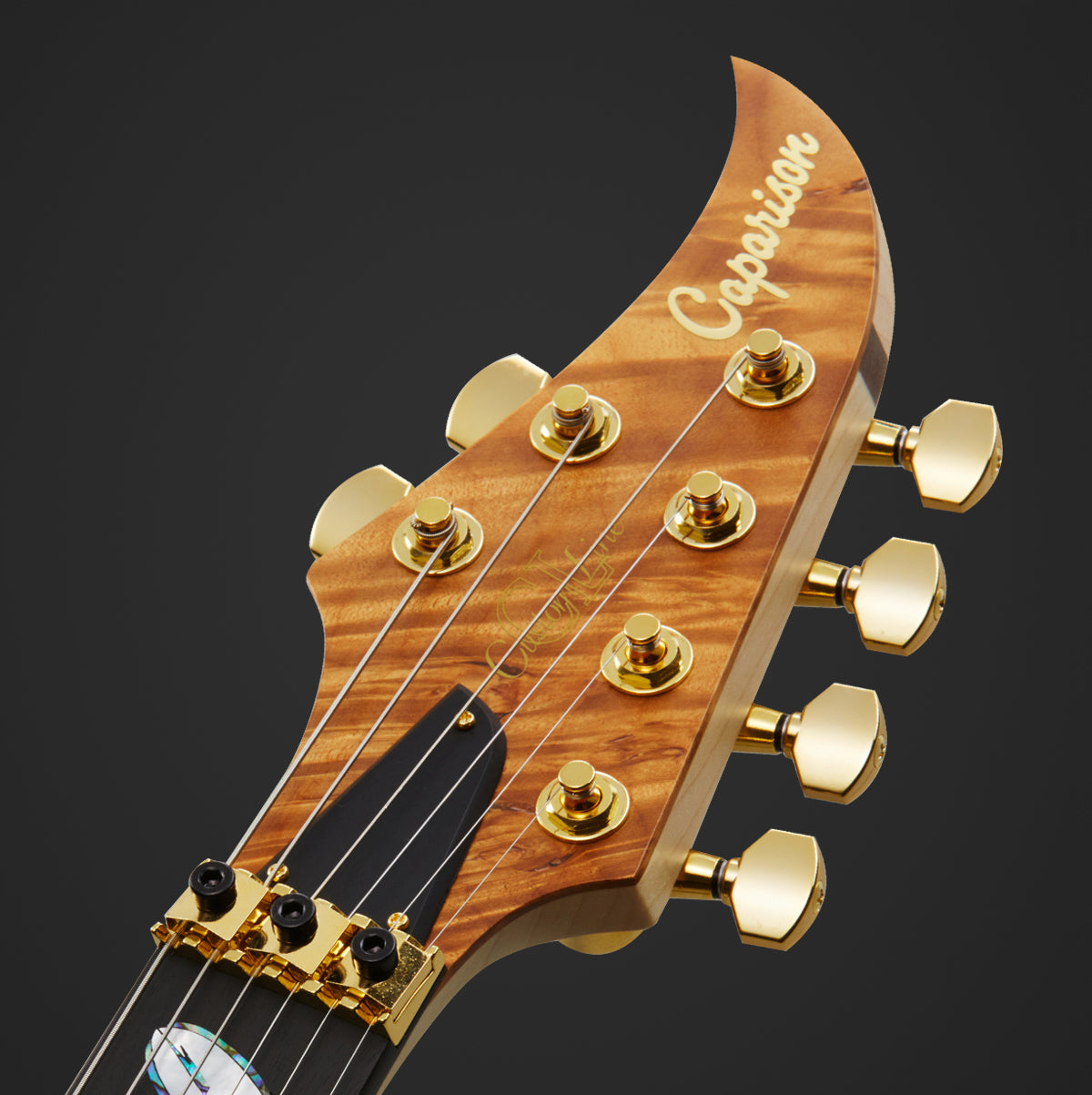

Gotoh HAP Tuners - The Dellinger model features a 15-degree headstock angle, allowing the strings to sit low against the locking nut without the need for a string retainer bar. It comes equipped with Gotoh HAP tuners, which let you adjust the height of each string post to match the gauge of the string. This fine-tuning capability ensures optimal string tension and minimizes tuning shifts when locking the strings at the nut.

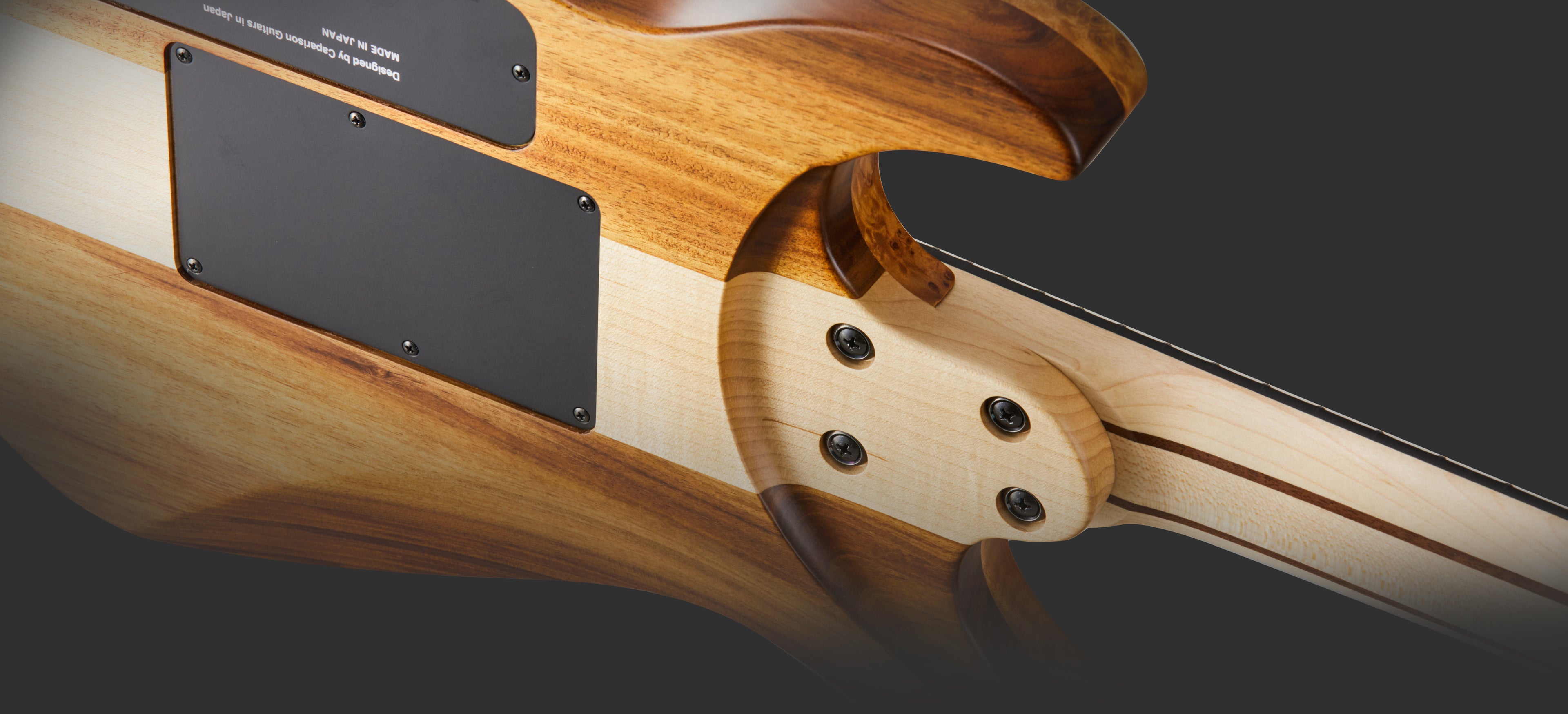

Dellinger Neck and Body Joint - On many 24-fret, double-cutaway guitars, the design often reduces the contact area between the neck and the body, which can lead to diminished sustain and tuning instability caused by neck flex during performance. The Dellinger model addresses this issue with a carefully engineered neck joint that maximizes the contact surface between neck and body. After years of prototyping, this joint design now offers improved neck stability and enhanced sustain. Special attention is given during construction: the neck pocket’s contact surface is cleaned of paint and debris before the neck is fitted, ensuring a tight, precise connection.

Terminal Wiring - To block external noise interference, conductive paint is applied inside both the pickup and control cavities, and the two are connected using a terminal ground wire system. The control panel also features an aluminium backing plate for added shielding performance. This terminal wiring not only improves noise resistance but also simplifies maintenance—making it easy to replace or service electronic components when needed.

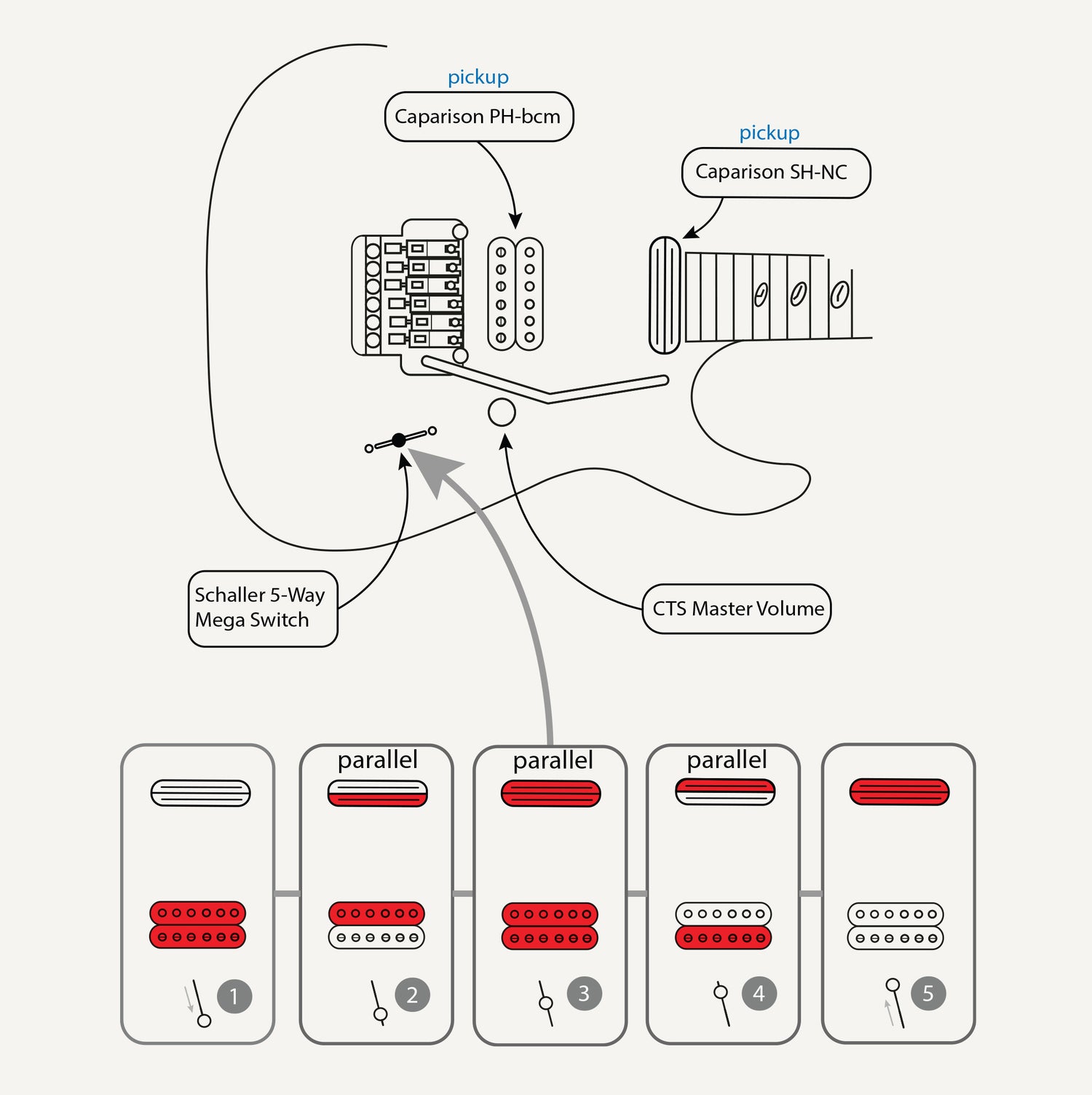

Caparison Pickups - Caparison’s original humbucking pickups are mounted on a baseplate that uses a three-screw system for height adjustment. Unlike standard two-screw mounts, this design allows for precise positioning of each coil relative to the strings, improving both tone and output. It also ensures the pickup stays firmly in place, even during intense playing, eliminating unwanted movement or tonal inconsistencies.
