Orbit

Reintroducing the Orbit with Schaller Tremolo to the Caparison lineup as an evolved and unique take on the classic high impact stage guitar, now in two new stunning pearlescent finishes alongside classic gloss black and white. A stunning amalgamation of balance and unhindered 27 fret access, the Orbit is the extreme shape you have been looking for - all the attitude and impact but with the superlative handling and screaming tones that you would expect from a distinctive and original Caparison.

The Orbit features a 5-piece maple & walnut neck through a mahogany body, which has the gloss finish of the body seamlessly fading into the natural finish of the neck. This resonant basis, together with the combination of a Schaller locking tremolo, newly added Jescar jumbo stainless steel frets and Caparison’s own revised design pickups make the Orbit an inspired hard rocking power-house!


[wccr_country countries="JP,ID,DE,Region Name_Africa" disallowed="1"] [/wccr_country]

Tangerine Orange
Blue Violet
White
Black


Body & Finish


Model Name: Orbit
Body Shape: Orbit
Body Material: Mahogany
Bridge: Schaller S-FRT II
Head Top: Pro. Black
Neck Finish: Natural Urethane Matt
Body Finish: Black, White, Tangerine Orange, Blue Violet
Hardware: Schaller Black, Gotoh Cosmo Black


Neck & Head


Neck Joint: Neck-Through
Neck Material: 5-Piece Maple/Walnut
Neck Grip: Caparison
Fingerboard: Ebony with White Binding
Radius: 350mmR to 400mmR
Scale Length: 648mm (25 1/2")
Nut Width: 42mm
No. of Frets: 27
Fret Type: Jumbo, Jescar FW57110S Stainless
Depth, 1st Fret Approx. 21.0mm
Depth, 12th Fret Approx. 22.0mm
Nut: Schaller R2 Locking Nut
Position Inlay: Clock
Headstock: Devil's Tail, Orbit Logo
Head Angle: 15 Degrees
Tuners: Gotoh SG381-07 H.A.P.
Tuning: Regular
Strings: RotoSound R9 (.009-.042)

Electronics & Accessories


Neck Pickup: Caparison SH-27FC
Bridge Pickup: Caparison PH-Rm

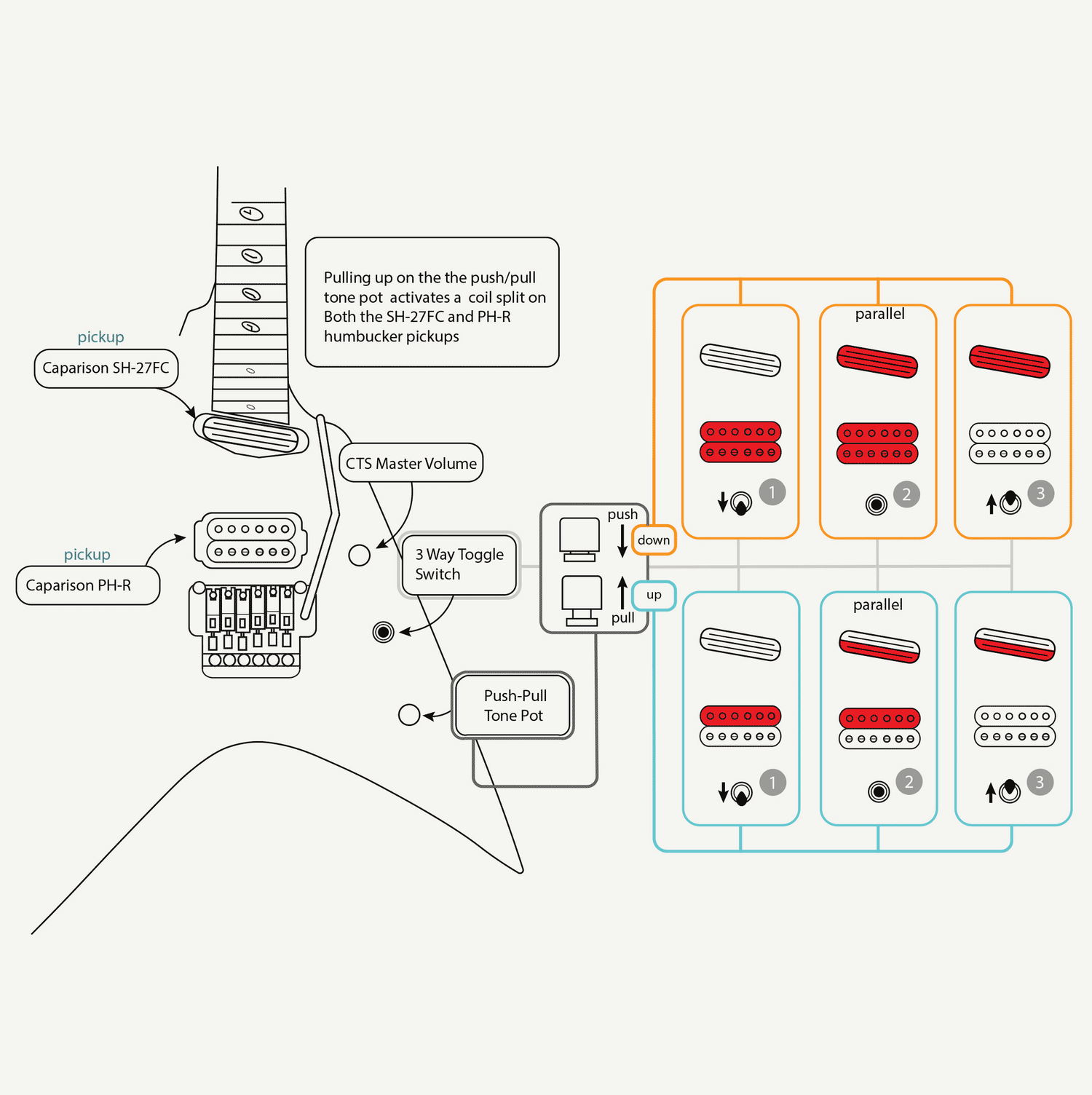

Controls: CTS Master Volume, 3 Way Toggle Switch, Master Tone with Push-Pull Switch
Case: Fitted Hard Case
