Caparison Pickups User's Manual
Please read the instructions carefully to ensure correct installation
If you are unfamiliar with replacing or fitting pickup installation then we recommend contacting an experienced guitar luthier/repairer for professional installation.
CAUTION: As a soldering iron is used to install the pickups, take care not to get burned or to apply too much pressure to the control pots, selector switch etc. as this may cause damage.
If you are direct mounting the pickup(s) to the body, please be sure to check the thickness of the body compared to the length of the screws. If the screws are too long, they may penetrate through the back of body.
Caparison pickups are supplied with screws suitable for attaching to a mounting ring or pickguard. When installing your pickups this way, please be sure to use the included screws.

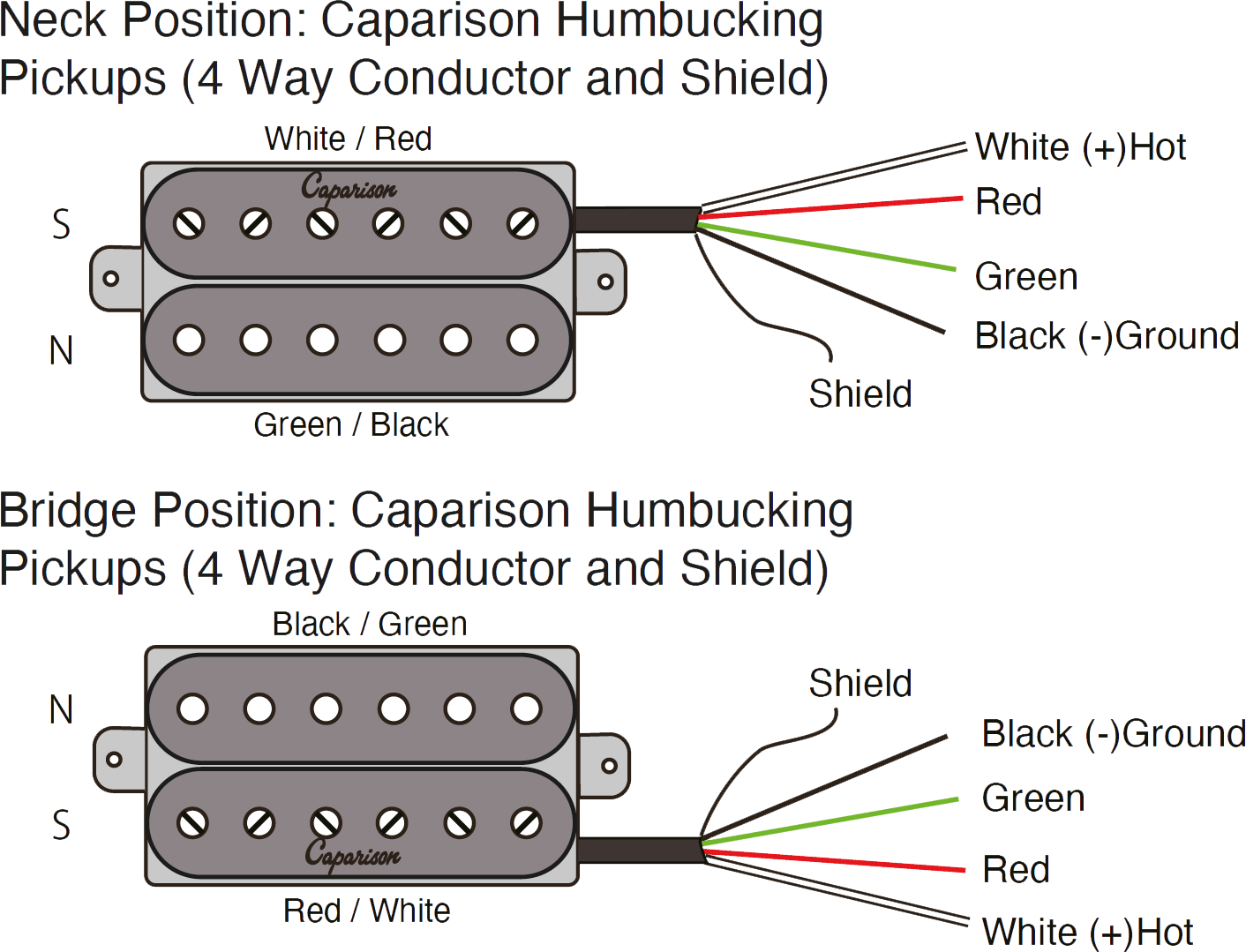

Wiring Caparison Humbuckers
White wire (+) hot.
Black wire (-) ground.
The bare ‘shield’ wire is soldered to the same location as the Black (-) ground wire (insulate any other possible terminal or electrical component contact with this wire using electrical tape or heat shrink tubing).
When installing with standard humbucker wiring (connected in series) solder the red and green wires together and insulate using electrical tape or heat shrink tubing.

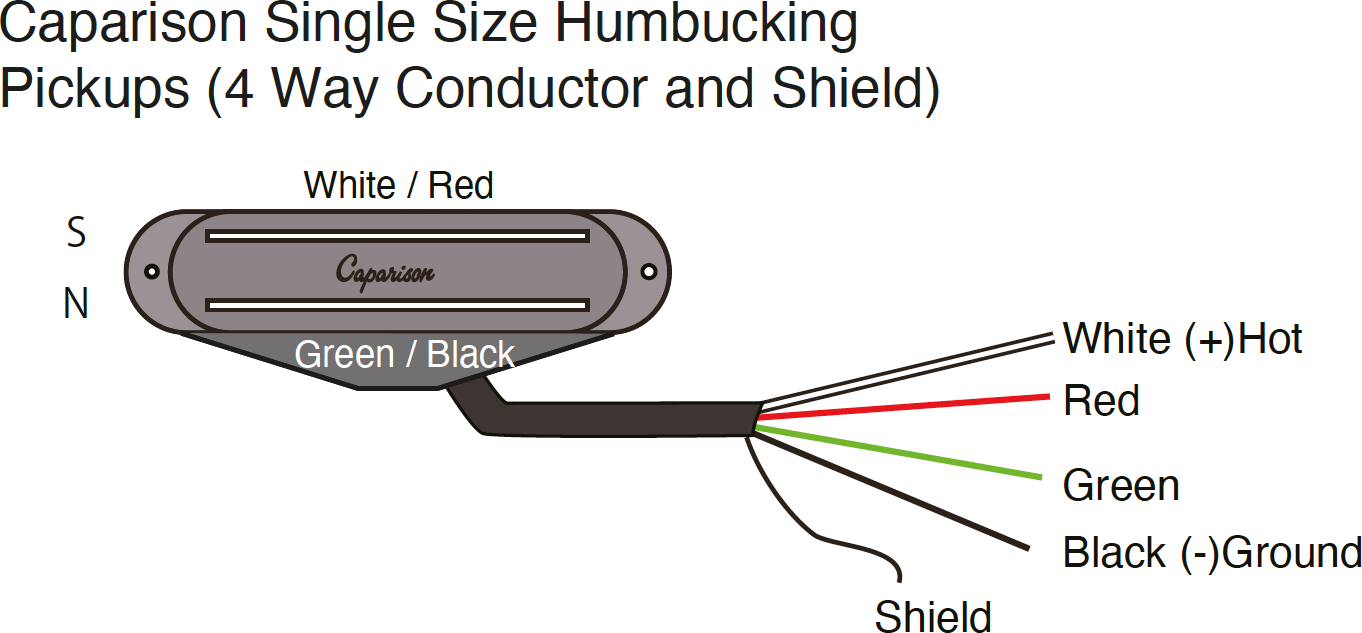

Wiring Single Size Humbuckers
White wire (+) hot.
Black wire (-) ground.
The bare ‘shield’ wire is soldered to the same location as the Black (-) ground wire (insulate any other possible terminal or electrical component contact with this wire using electrical tape or heat shrink tubing).
When installing with standard humbucker wiring (connected in series) solder the red and green wires together and insulate using electrical tape or heat shrink tubing.

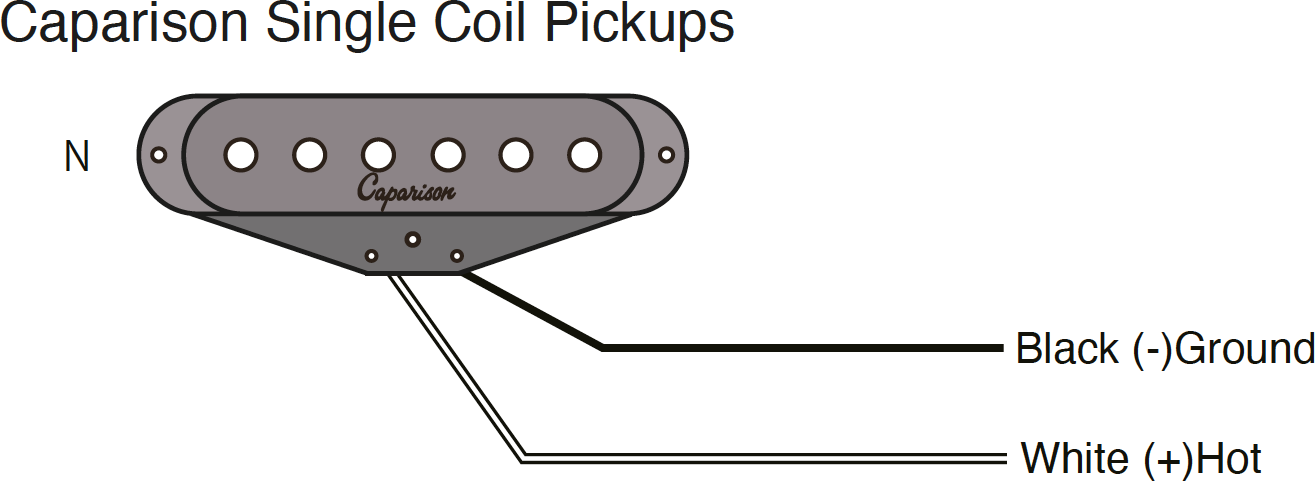

Wiring Caparison Single Coils
White wire (+) hot.
Black wire (-) ground, so connect it to the ground side of the guitar circuit.

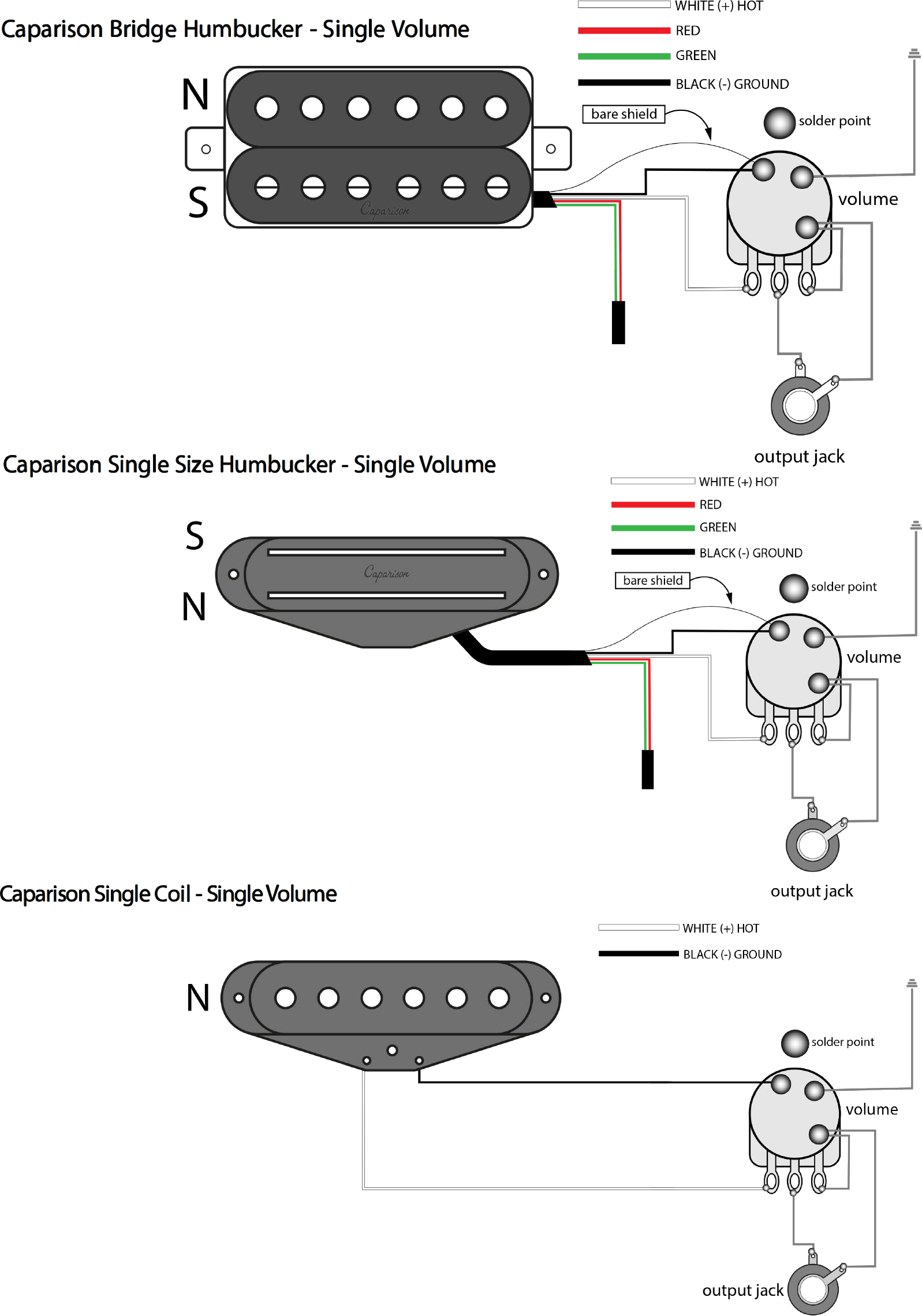

Caparison Pickups Wiring Examples
Caparison Pickups offers a limited 12 month warranty.
To the original purchaser, ensuring that all products are free from manufacturing defects and faulty parts. In the event of a defect, please contact Caparison to obtain a valid returns reference.
You are required to return the pickup securely packaged via registered mail to the designated Caparison Pickups address, and we will strive to repair or replace the item at no cost to the original purchaser in a timely manner.
It is important to note that this warranty is nontransferable and applies solely to the original buyer. Additionally, it does not cover damages resulting from misuse, unauthorized repairs or modifications, improper handling, or normal wear and tear.
The responsibility for proper installation of the pickups lies with the purchaser; if you are not experienced with pickup wiring or installation, we recommend consulting a qualified guitar luthier or repair technician for professional installation".
