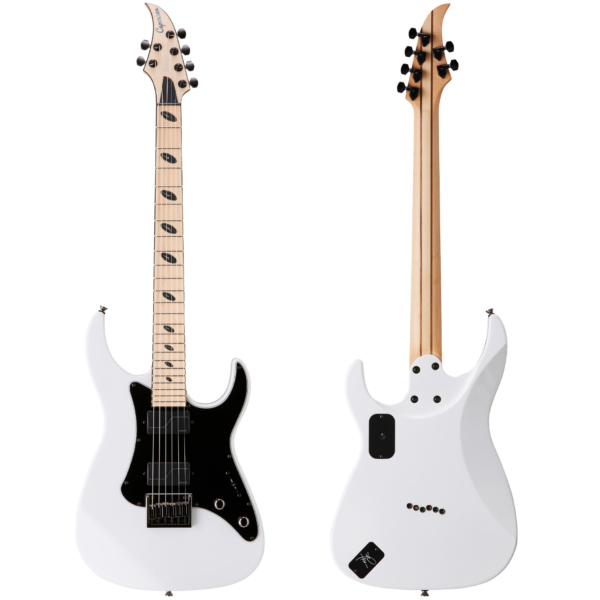

The Dellinger-JSM was developed with Joel Stroetzel, based on the Caparison Dellinger II FX-WM, and is the first Caparison guitar to feature a pick guard. The Dellinger-JSM has a “WM” body structure, which is Walnut on the top and Mahogany on the back, compensates for the low range which is reduced slightly by the use of a pick guard. The Walnut top, gives the guitar a wide tonal range, from the richest bass to the clearest treble, whilst the Mahogany back sustains and maintains the impressive clarity and definition this guitar delivers. The Caparison Fixed Bridge, employs a large movable range for the saddle that corresponds to a wide selection of string gauges and tunings. This is complimented with a saddle lock function to prevent any unwanted resonance and Hipshot locking tuners to stabilise the tuning capabilities. The Dellinger-JSM is fitted with a 5-piece Maple and Walnut neck for increased stability.
The Dellinger-JSM comes complete with Fishman Fluence Killswitch Engage Signature pickups, which pack tremendous versatility into one set of pickups. Voice 1 begins with the Fishman Modern recipe, but Joel & Adam prefer a tighter bass for more note definition and screaming midrange and harmonics. In the bridge, Voice 2 contains an extremely unique vintage/medium output hybrid passive tone, equally great for cleans, crunch, and searing leads, while the neck produces a crystal clean, fluid voice. In addition, there are unique single coil voices for each pickup, to nail the perfect modern active “hot” coil split, and vintage passive true single coil tones. These active pickups are powered by a Fishman rechargeable battery pack, featuring a current capacity similar to a premium 9-volt alkaline battery, which is rechargeable via a standard mini-USB cable.
“I am very pleased and proud to have the Dellinger-JSM as my new signature model! The five-piece neck and walnut top give it the depth and sustain of a set neck, yet it retains the familiar grip and feel of a bolt on maple neck guitar. The Fishman electronics sound absolutely fantastic and compliment the guitar perfectly. It is capable of all the modern and classic tones one could hope for! Beyond being an incredibly solid and versatile instrument, it also happens to be quite stunning visually! The pickguard, black binding and black clock inlays are pure class. MANY, MANY thanks to Caparison for making this dream guitar of mine come to life! I could not be happier! I truly feel that anyone who has the pleasure of playing the Dellinger-JSM will feel the same!” – Joel Stroetzel
SpecificationModel Name: Dellinger-JSM
Body Shape: Dellinger
Body Top: Walnut
Body Back: Mahogany
Bridge: Caparison Fixed Bridge6
Neck Joint: Bolt-On
Neck Material: 5-Piece Maple/Walnut
Neck Grip: Caparison
Fingerboard Material: Maple with Black Binding
Fingerboard Radius: R350 to R400
Scale Length: 648mm (25 1/2″)
Nut Width: 42mm
No. Of Frets: 24
Fret Type: Medium
Nut: Graph Tech Black TUSQ
Position Inlay: Black Clock

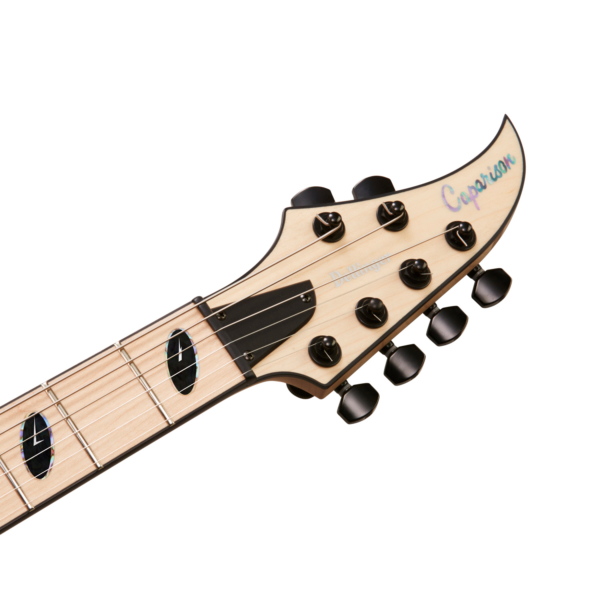

Headstock: Devil’s Tail With “Dellinger” Logo, Black Binding
Head Angle: 15 Degrees
Machine Heads: Hip-Shot Grip-Lock Tuners
Neck Pickup: Fishman Fluence Alnico Killswitch Engage
Bridge Pickup: Fishman Fluence Ceramic Killswitch Engage
Controls: Master Volume (Pull for Voice 2), Master Tone (Pull for HF Tilt), Schaller Mega Switch Model T (3-Way Lever Switch)
Head Top Finish: Natural Matt
Neck Finish: Urethane Matt
Body Finish: Black Gloss, White Gloss
Hardware: Hip-Shot Black, Gotoh Cosmo Black
Tuning: Drop C Tuning (1:D, 2:A, 3:F, 4:C, 5:G, 6:C)
Strings: RotoSound RH-10 (010-052)
Case/Gig Bag: Reunion Blues Continental Case
Designed by Caparison Guitars in Japan
MADE IN JAPAN
FAQ & Terms
When can I expect to receive my guitar order?
Guitars will ship from our warehouse in Japan via DHL Express within 3 working days of the receipt of your order payment. The delivery time is typically 3-to-5 working days from the time of shipment. The shipping charges are included in the price of the guitar. A tracking number will be issued once the order is processed and ready to ship.
What is included with the guitars?
All Caparison guitars come with a Certificate of Authenticity signed by our lead designer upon passing final inspection, a Caparison Owner’s Manual, and necessary tools to adjust the bridge hardware.
Most models include a Caparison Branded Reunion Blues Continental Case. Some extended range models, such as the Orbit and Apple Horn 8 come with a fitted Caparison hard case.
[wccr_country countries="Region Name_Europe,Sub-region Name_Australia and New Zealand,US,CA"]
Will there be any customs charges to pay?
Guitars ordered through our website are shipped by air from our warehouse in Japan with a DHL Express DDP service (Delivery Duty Paid). Customs import duty, fees and sales taxes are factored into the purchase price and pre-paid by us, there will be no additional cost to the buyer when the guitar arrives.
[wccr_country countries="Region Name_Europe,Sub-region Name_Australia and New Zealand,US,CA,JP" disallowed="1"]
Will there be any customs charges to pay?
Guitars ordered through our website are shipped by air from our warehouse in Japan with DHL Express, there may be customs import duty and sales tax to pay on import. These are the responsibility of the buyer. Please contact us if you have any questions.
Is my guitar covered by a warranty?
All Caparison guitars are covered by a full 12-month manufacturer’s warranty. In the unlikely event of a manufacturing fault with any instrument purchased within the 12-month time of purchase, please contact us directly to resolve the issue in a timely fashion.
Click here for full details of our manufacturer’s warranty
Can I return my guitar?
We have a 14-day return policy for our production guitars, as long as it is returned in all of the original packaging and in the condition it was received (i.e. no wear and tear or obvious signs of use). [wccr_country countries=”US,CA”] There is a US$ 375 restocking fee to cover the return shipping and re-inspection. [/wccr_country]
Please note that our 14-day return policy only applies to production guitars purchased through our website. Shipments that are returned to us as undeliverable will be refunded minus our shipping costs and any associated fees or can be redelivered subject to a redelivery fee.
Can I see a photo of my guitar before I buy?
Unfortunately, we do not have each guitar photographed. Some hand painted finishes and figured wood tops can vary from the sample photos seen on our website.
